Heavy-Duty ER Series

Heavy-Duty ER Series from the final product catalog. Compare listed models, dimensions and mounting configurations.

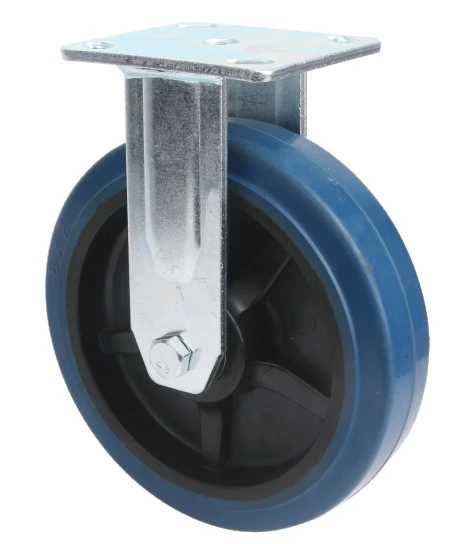

Heavy-Duty ER Series

Product illustration from the final catalog. Mounting and brake options vary by model.

Heavy-Duty Casters

Choose a model.
Confirm your application.

Material pending confirmation: plastic-core PU heading vs ER table and model.

Catalog series: 重型塑芯PU系列
Final PDF page 41 · Printed folios 79, 80

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China

Catalog models & specifications

Dimensions & listed loads.

Dimensions in mm; listed loads in kg per caster. Pending confirmation means missing, conflicting or not reliably established.
Manufacturer modelWheel ØWidthOverall heightMaterialMountingRotationBrakeListed loadInquiry
Z07-01D-100ER-0810048145Pending confirmation (table: ER)Top plateSwivelDouble brake270Inquire ↗
Z07-01D-125ER-0812548165Pending confirmation (table: ER)Top plateSwivelDouble brake320Inquire ↗
Z07-01D-150ER-0815048188Pending confirmation (table: ER)Top plateSwivelDouble brake420Inquire ↗
Z07-01D-200ER-0820048238Pending confirmation (table: ER)Top plateSwivelDouble brake480Inquire ↗
Z07-01-100ER-0810048145Pending confirmation (table: ER)Top plateSwivelNone270Inquire ↗
Z07-01-125ER-0812548165Pending confirmation (table: ER)Top plateSwivelNone320Inquire ↗
Z07-01-150ER-0815048188Pending confirmation (table: ER)Top plateSwivelNone420Inquire ↗
Z07-01-200ER-0820048238Pending confirmation (table: ER)Top plateSwivelNone480Inquire ↗
Z07-04-100ER-0810048145Pending confirmation (table: ER)Top plateRigidNone270Inquire ↗
Z07-04-125ER-0812548165Pending confirmation (table: ER)Top plateRigidNone320Inquire ↗
Z07-04-150ER-0815048188Pending confirmation (table: ER)Top plateRigidNone420Inquire ↗
Z07-04-200ER-0820048238Pending confirmation (table: ER)Top plateRigidNone480Inquire ↗
Mounting dimensions
Source dimension notation retained, mm. An asterisk separates dimensions; stem notation is reproduced without inferring a thread.
Model / configurationPlate sizeHole spacingMounting holeStem notationStem hole distance
Z07-01D-100ER-08
Top plate · Swivel with double brake		115*10084*7211*20Pending confirmationPending confirmation
Z07-01D-125ER-08
Top plate · Swivel with double brake		115*10084*7211*20Pending confirmationPending confirmation
Z07-01D-150ER-08
Top plate · Swivel with double brake		115*10084*7211*20Pending confirmationPending confirmation
Z07-01D-200ER-08
Top plate · Swivel with double brake		115*10084*7211*20Pending confirmationPending confirmation
Z07-01-100ER-08
Top plate · Swivel		115*10084*7211*20Pending confirmationPending confirmation
Z07-01-125ER-08
Top plate · Swivel		115*10084*7211*20Pending confirmationPending confirmation
Z07-01-150ER-08
Top plate · Swivel		115*10084*7211*20Pending confirmationPending confirmation
Z07-01-200ER-08
Top plate · Swivel		115*10084*7211*20Pending confirmationPending confirmation
Z07-04-100ER-08
Top plate · Rigid		115*10084*7211*20Pending confirmationPending confirmation
Z07-04-125ER-08
Top plate · Rigid		115*10084*7211*20Pending confirmationPending confirmation
Z07-04-150ER-08
Top plate · Rigid		115*10084*7211*20Pending confirmationPending confirmation
Z07-04-200ER-08
Top plate · Rigid		115*10084*7211*20Pending confirmationPending confirmation
Packing, source references & confirmation notes
Model / configurationPcs / cartonCarton dimensions, as printed (mm)SourceNotes
Z07-01D-100ER-08
Top plate · Swivel with double brake		12315*275*360PDF 41, table 1, row 1Material pending confirmation: plastic-core PU heading vs ER table and model.
Z07-01D-125ER-08
Top plate · Swivel with double brake		12380*380*320PDF 41, table 1, row 2Material pending confirmation: plastic-core PU heading vs ER table and model.
Z07-01D-150ER-08
Top plate · Swivel with double brake		8400*400*270PDF 41, table 1, row 3Material pending confirmation: plastic-core PU heading vs ER table and model.
Z07-01D-200ER-08
Top plate · Swivel with double brake		4385*250*230PDF 41, table 1, row 4Material pending confirmation: plastic-core PU heading vs ER table and model.
Z07-01-100ER-08
Top plate · Swivel		12315*275*190PDF 41, table 2, row 1Material pending confirmation: plastic-core PU heading vs ER table and model.
Z07-01-125ER-08
Top plate · Swivel		12340*340*320PDF 41, table 2, row 2Material pending confirmation: plastic-core PU heading vs ER table and model.
Z07-01-150ER-08
Top plate · Swivel		12320*320*320PDF 41, table 2, row 3Material pending confirmation: plastic-core PU heading vs ER table and model.
Z07-01-200ER-08
Top plate · Swivel		8370*250*215PDF 41, table 2, row 4Material pending confirmation: plastic-core PU heading vs ER table and model.
Z07-04-100ER-08
Top plate · Rigid		12315*275*190PDF 41, table 3, row 1Material pending confirmation: plastic-core PU heading vs ER table and model.
Z07-04-125ER-08
Top plate · Rigid		12340*340*320PDF 41, table 3, row 2Material pending confirmation: plastic-core PU heading vs ER table and model.
Z07-04-150ER-08
Top plate · Rigid		12320*320*320PDF 41, table 3, row 3Material pending confirmation: plastic-core PU heading vs ER table and model.
Z07-04-200ER-08
Top plate · Rigid		8370*250*215PDF 41, table 3, row 4Material pending confirmation: plastic-core PU heading vs ER table and model.
View original catalog pages

Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.

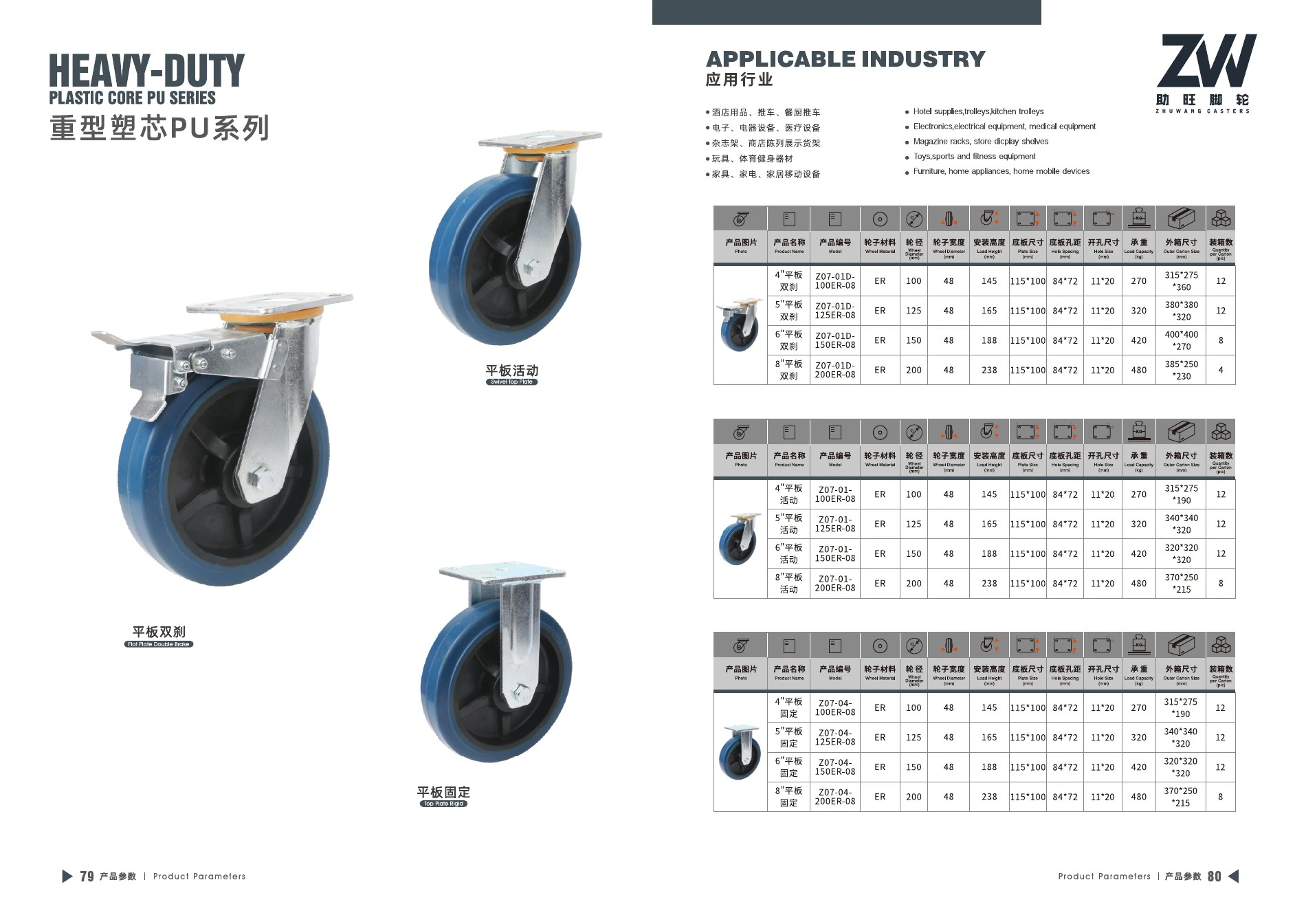

Final product catalog PDF page 41: Heavy-Duty ER Series
PDF page 41 · Open in catalog PDF

Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
