Home / Products / Heavy-Duty PP Series

Products / Heavy-Duty PP Series

Heavy-Duty PP Series

Heavy-Duty PP Series from the final product catalog. Compare listed models, dimensions and mounting configurations.

Heavy-Duty PP Series

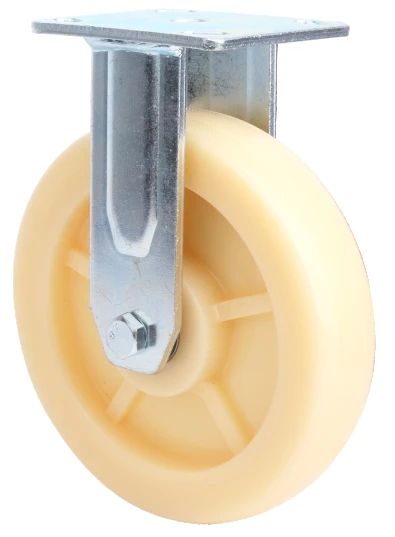

Product illustration from the final catalog. Mounting and brake options vary by model.

Heavy-Duty Casters

Choose a model.
Confirm your application.

Material pending confirmation: PP series and model vs PU material cells.

Catalog series: 重型PP系列
Final PDF page 34 · Printed folios 59, 60

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China

Catalog models & specifications

Dimensions & listed loads.

Dimensions in mm; listed loads in kg per caster. Pending confirmation means missing, conflicting or not reliably established.
Manufacturer modelWheel ØWidthOverall heightMaterialMountingRotationBrakeListed loadInquiry
Z07A-01D-100PP-0110048145Pending confirmation (table: PU)Top plateSwivelDouble brake270Inquire ↗
Z07A-01D-125PP-0112548165Pending confirmation (table: PU)Top plateSwivelDouble brake320Inquire ↗
Z07A-01D-150PP-0115048188Pending confirmation (table: PU)Top plateSwivelDouble brake420Inquire ↗
Z07A-01D-200PP-0120048238Pending confirmation (table: PU)Top plateSwivelDouble brake480Inquire ↗
Z07A-01-100PP-0110048145Pending confirmation (table: PU)Top plateSwivelNone270Inquire ↗
Z07A-01-125PP-0112548165Pending confirmation (table: PU)Top plateSwivelNone320Inquire ↗
Z07A-01-150PP-0115048188Pending confirmation (table: PU)Top plateSwivelNone420Inquire ↗
Z07A-01D-200PP-0120048238Pending confirmation (table: PU)Top plateSwivelNone480Inquire ↗
Z07A-04-100PP-0110048145Pending confirmation (table: PU)Top plateRigidNone270Inquire ↗
Z07A-04-125PP-0112548165Pending confirmation (table: PU)Top plateRigidNone320Inquire ↗
Z07A-04-150PP-0115048188Pending confirmation (table: PU)Top plateRigidNone420Inquire ↗
Z07A-04-200PP-0120048238Pending confirmation (table: PU)Top plateRigidNone480Inquire ↗
Mounting dimensions
Source dimension notation retained, mm. An asterisk separates dimensions; stem notation is reproduced without inferring a thread.
Model / configurationPlate sizeHole spacingMounting holeStem notationStem hole distance
Z07A-01D-100PP-01
Top plate · Swivel with double brake		115*10084*7211*20Pending confirmationPending confirmation
Z07A-01D-125PP-01
Top plate · Swivel with double brake		115*10084*7211*20Pending confirmationPending confirmation
Z07A-01D-150PP-01
Top plate · Swivel with double brake		115*10084*7211*20Pending confirmationPending confirmation
Z07A-01D-200PP-01
Top plate · Swivel with double brake		115*10084*7211*20Pending confirmationPending confirmation
Z07A-01-100PP-01
Top plate · Swivel		115*10084*7211*20Pending confirmationPending confirmation
Z07A-01-125PP-01
Top plate · Swivel		115*10084*7211*20Pending confirmationPending confirmation
Z07A-01-150PP-01
Top plate · Swivel		115*10084*7211*20Pending confirmationPending confirmation
Z07A-01D-200PP-01
Top plate · Swivel		115*10084*7211*20Pending confirmationPending confirmation
Z07A-04-100PP-01
Top plate · Rigid		115*10084*7212*20Pending confirmationPending confirmation
Z07A-04-125PP-01
Top plate · Rigid		115*10084*7212*20Pending confirmationPending confirmation
Z07A-04-150PP-01
Top plate · Rigid		115*10084*7212*20Pending confirmationPending confirmation
Z07A-04-200PP-01
Top plate · Rigid		115*10084*7212*20Pending confirmationPending confirmation
Packing, source references & confirmation notes
Model / configurationPcs / cartonCarton dimensions, as printed (mm)SourceNotes
Z07A-01D-100PP-01
Top plate · Swivel with double brake		12315*275*360PDF 34, table 1, row 1Material pending confirmation: PP series and model vs PU material cells.
Z07A-01D-125PP-01
Top plate · Swivel with double brake		12380*380*320PDF 34, table 1, row 2Material pending confirmation: PP series and model vs PU material cells.
Z07A-01D-150PP-01
Top plate · Swivel with double brake		8400*400*270PDF 34, table 1, row 3Material pending confirmation: PP series and model vs PU material cells.
Z07A-01D-200PP-01
Top plate · Swivel with double brake		4385*250*230PDF 34, table 1, row 4Material pending confirmation: PP series and model vs PU material cells.
Z07A-01-100PP-01
Top plate · Swivel		12315*275*190PDF 34, table 2, row 1Material pending confirmation: PP series and model vs PU material cells.
Z07A-01-125PP-01
Top plate · Swivel		12340*340*320PDF 34, table 2, row 2Material pending confirmation: PP series and model vs PU material cells.
Z07A-01-150PP-01
Top plate · Swivel		12320*320*320PDF 34, table 2, row 3Material pending confirmation: PP series and model vs PU material cells.
Z07A-01D-200PP-01
Top plate · Swivel		8370*250*215PDF 34, table 2, row 4Material pending confirmation: PP series and model vs PU material cells. Swivel row repeats the brake model code; specify configuration.
Z07A-04-100PP-01
Top plate · Rigid		12315*275*190PDF 34, table 3, row 1Material pending confirmation: PP series and model vs PU material cells.
Z07A-04-125PP-01
Top plate · Rigid		12340*340*320PDF 34, table 3, row 2Material pending confirmation: PP series and model vs PU material cells.
Z07A-04-150PP-01
Top plate · Rigid		12320*320*320PDF 34, table 3, row 3Material pending confirmation: PP series and model vs PU material cells.
Z07A-04-200PP-01
Top plate · Rigid		8370*250*215PDF 34, table 3, row 4Material pending confirmation: PP series and model vs PU material cells.
View original catalog pages

Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.

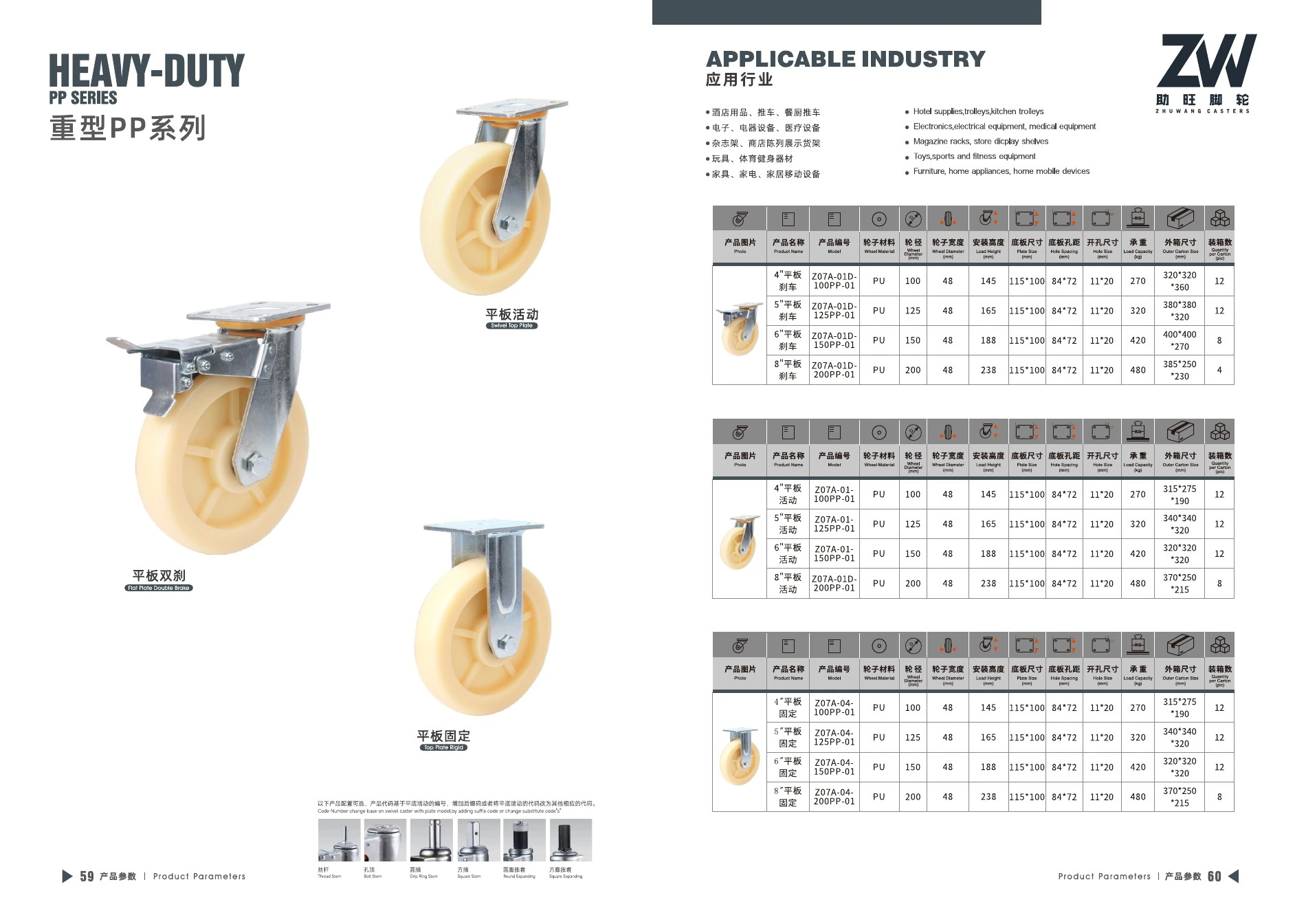

Final product catalog PDF page 34: Heavy-Duty PP Series
PDF page 34 · Open in catalog PDF

Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
