Heavy-Duty Anti-Vibration Leveling Foot

Heavy-Duty Anti-Vibration Leveling Foot, APL series. Compare catalog-listed base sizes, screw dimensions and load capacities.

Heavy-Duty Anti-Vibration Leveling Foot

Original catalog product illustration. Select by the model and row dimensions.

Leveling Feet & Leveling Mounts

Heavy DutyAnti-Vibration

Choose a support.
Confirm the installation.

Series APL · Heavy Duty
Base width: 80–160 mm · Listed load: 1200–2980 kg
Thread: 12*1.75, 16*2.0, 20*2.5, 24*3.0, 30*3.5

Some printed model codes repeat 20150 in the 24 mm screw groups. Source codes are retained; select by the row dimensions and confirm the exact model.

Source series: APL · 重载型防震垫定向脚杯
PDF page 47 · Printed folios 91, 92

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695

Structure & application

Mounting information.

Fixed leveling foot with vibration pad

Metal grade and full material specification: pending confirmation.

Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.

Application areas listed in the catalog

Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.

Catalog models & specifications

Base, screw & listed loads.

Dimensions in mm; listed loads in kg per item. Base width follows the source column and is not assumed to be the diameter of a non-circular base. Screw sizes are reproduced as printed.
Manufacturer modelBase widthScrew / thread notationBase heightRod-length columnListed loadInquiry
APL80S-121008012*1.7527.51001200Inquire ↗
APL80S-121208012*1.7527.51201200Inquire ↗
APL80S-161008016*2.027.51001300Inquire ↗
APL80S-161208016*2.027.51201300Inquire ↗
APL80S-161508016*2.027.51501300Inquire ↗
APL80S-201008020*2.527.51001400Inquire ↗
APL80S-201208020*2.527.51201400Inquire ↗
APL80S-201508020*2.527.51501400Inquire ↗
APL80S-241008024*3.027.51001500Inquire ↗
APL80S-241208024*3.027.51201500Inquire ↗
APL80S-241508024*3.027.51501500Inquire ↗
APL80S-301008030*3.527.51001600Inquire ↗
APL80S-301208030*3.527.51201600Inquire ↗
APL80S-301508030*3.527.51501600Inquire ↗
APL100S-2010010020*2.527.51001600Inquire ↗
APL100S-2012010020*2.527.51201600Inquire ↗
APL100S-2015010020*2.527.51501600Inquire ↗
APL100S-2410010024*3.027.51001700Inquire ↗
APL100S-2412010024*3.027.51201700Inquire ↗
APL100S-2015010024*3.027.51501700Inquire ↗
APL100S-3010010030*3.527.51002000Inquire ↗
APL100S-3012010030*3.527.51202000Inquire ↗
APL100S-3015010030*3.527.51502000Inquire ↗
APL120S-2010012020*2.527.51001800Inquire ↗
APL120S-2012012020*2.527.51201800Inquire ↗
APL120S-2015012020*2.527.51501800Inquire ↗
APL120S-2410012024*3.027.51001950Inquire ↗
APL120S-2412012024*3.027.51201950Inquire ↗
APL120S-2015012024*3.027.51501950Inquire ↗
APL120S-3010012030*3.527.51002150Inquire ↗
APL120S-3012012030*3.527.51202150Inquire ↗
APL120S-3015012030*3.527.51502150Inquire ↗
APL160S-2010016020*2.5341002100Inquire ↗
APL160S-2012016020*2.5341202100Inquire ↗
APL160S-2015016020*2.5341502100Inquire ↗
APL160S-2410016024*3.0341002550Inquire ↗
APL160S-2412016024*3.0341202550Inquire ↗
APL160S-2015016024*3.0341502550Inquire ↗
APL160S-3010016030*3.5341002980Inquire ↗
APL160S-3012016030*3.5341202980Inquire ↗
APL160S-3015016030*3.5341502980Inquire ↗
Additional dimensions, source references & pending confirmation
Nut-column dimensions are retained as printed. A blank or slash is marked pending confirmation. Repeated model codes remain separate source rows.
ModelBottom nut thicknessTop nut thicknessNut diameter columnSource referencePending confirmation
APL80S-1210071019PDF 47, table 1, row 1Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-1212071019PDF 47, table 1, row 2Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-16100101324PDF 47, table 1, row 3Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-16120101324PDF 47, table 1, row 4Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-16150101324PDF 47, table 1, row 5Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-20100121630PDF 47, table 1, row 6Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-20120121630PDF 47, table 1, row 7Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-20150121630PDF 47, table 1, row 8Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-24100141936PDF 47, table 1, row 9Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-24120141936PDF 47, table 1, row 10Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-24150141936PDF 47, table 1, row 11Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-30100172445PDF 47, table 1, row 12Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-30120172445PDF 47, table 1, row 13Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL80S-30150172445PDF 47, table 1, row 14Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL100S-20100121630PDF 47, table 1, row 15Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL100S-20120121630PDF 47, table 1, row 16Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL100S-20150121630PDF 47, table 1, row 17Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation.
APL100S-24100141936PDF 47, table 1, row 18Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL100S-24120141936PDF 47, table 1, row 19Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL100S-20150141936PDF 47, table 1, row 20Packing quantity and carton dimensions: pending confirmation. Printed model repeats 20150 in a 24 mm thread group; model pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation.
APL100S-30100172445PDF 47, table 1, row 21Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL100S-30120172445PDF 47, table 1, row 22Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL100S-30150172445PDF 47, table 1, row 23Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL120S-20100121630PDF 47, table 1, row 24Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL120S-20120121630PDF 47, table 1, row 25Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL120S-20150121630PDF 47, table 1, row 26Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation.
APL120S-24100141936PDF 47, table 1, row 27Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL120S-24120141936PDF 47, table 1, row 28Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL120S-20150141936PDF 47, table 1, row 29Packing quantity and carton dimensions: pending confirmation. Printed model repeats 20150 in a 24 mm thread group; model pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation.
APL120S-30100172445PDF 47, table 1, row 30Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL120S-30120172445PDF 47, table 1, row 31Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL120S-30150172445PDF 47, table 1, row 32Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL160S-20100121630PDF 47, table 1, row 33Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL160S-20120121630PDF 47, table 1, row 34Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL160S-20150121630PDF 47, table 1, row 35Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation.
APL160S-24100141936PDF 47, table 1, row 36Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL160S-24120141936PDF 47, table 1, row 37Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL160S-20150141936PDF 47, table 1, row 38Packing quantity and carton dimensions: pending confirmation. Printed model repeats 20150 in a 24 mm thread group; model pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation.
APL160S-30100172445PDF 47, table 1, row 39Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL160S-30120172445PDF 47, table 1, row 40Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
APL160S-30150172445PDF 47, table 1, row 41Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.

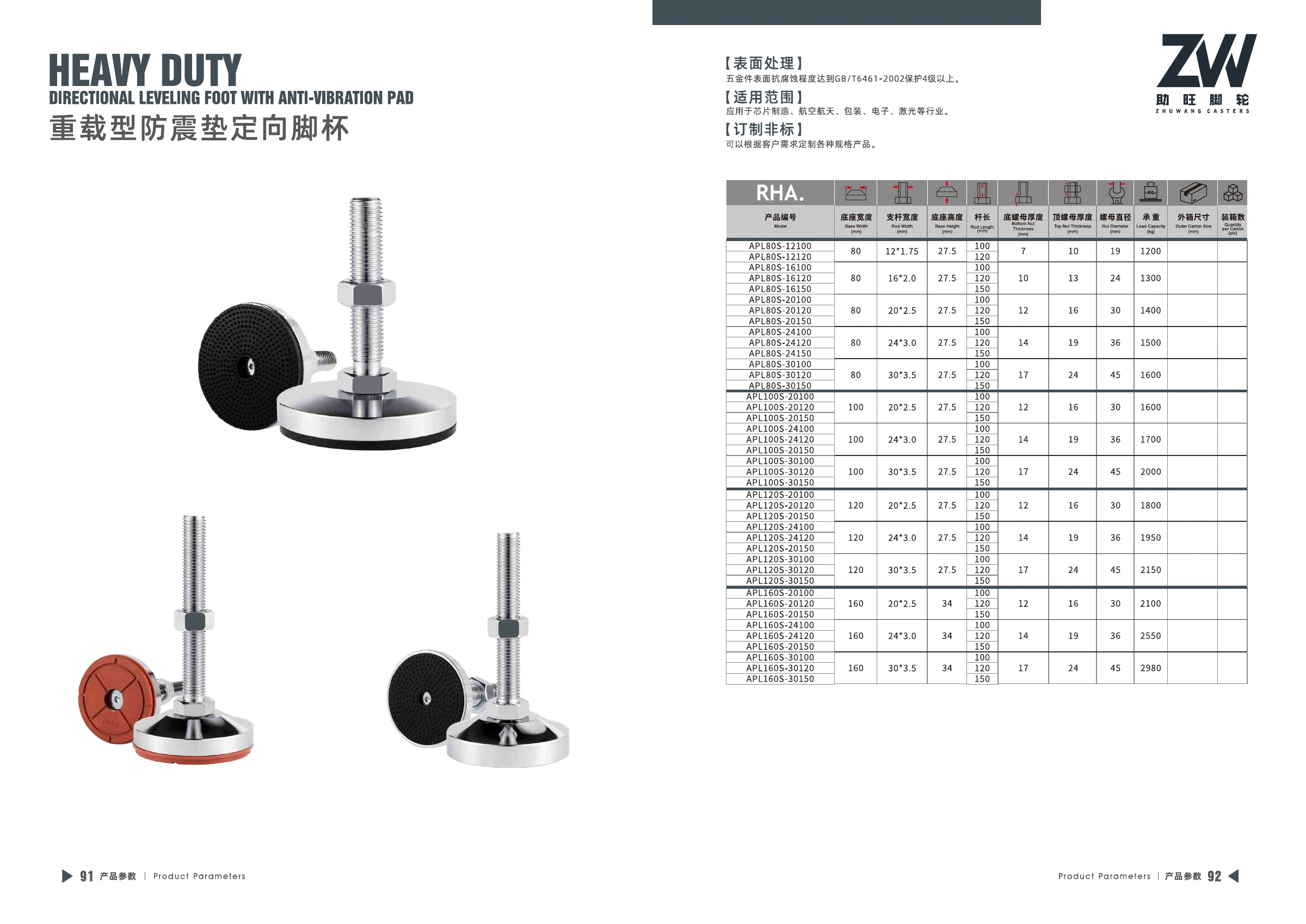

View original catalog page
Product specifications for Heavy-Duty Anti-Vibration Leveling Foot, PDF page 47
PDF page 47 · Open in latest catalog PDF

Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.
