Heavy-Duty Anti-Vibration Swivel Leveling Foot
Heavy-Duty Anti-Vibration Swivel Leveling Foot, ARS-B series. Compare catalog-listed base sizes, screw dimensions and load capacities.
Original catalog product illustration. Select by the model and row dimensions.
Leveling Feet & Leveling Mounts
Heavy DutySwivel / ArticulatingAnti-VibrationAnti-slipChoose a support.
Confirm the installation.
Series ARS-B · Heavy Duty
Base width: 60–120 mm · Listed load: 600–2150 kg
Thread: 12*1.75, 16*2.0, 20*2.5, 24*3.0, 30*3.5
The catalog specifies 15° all-direction adjustment. Some 24 mm groups repeat 20 mm model codes; confirm the exact model and load conditions.
Source series: ARS-B · 重载型防震防滑万向脚杯

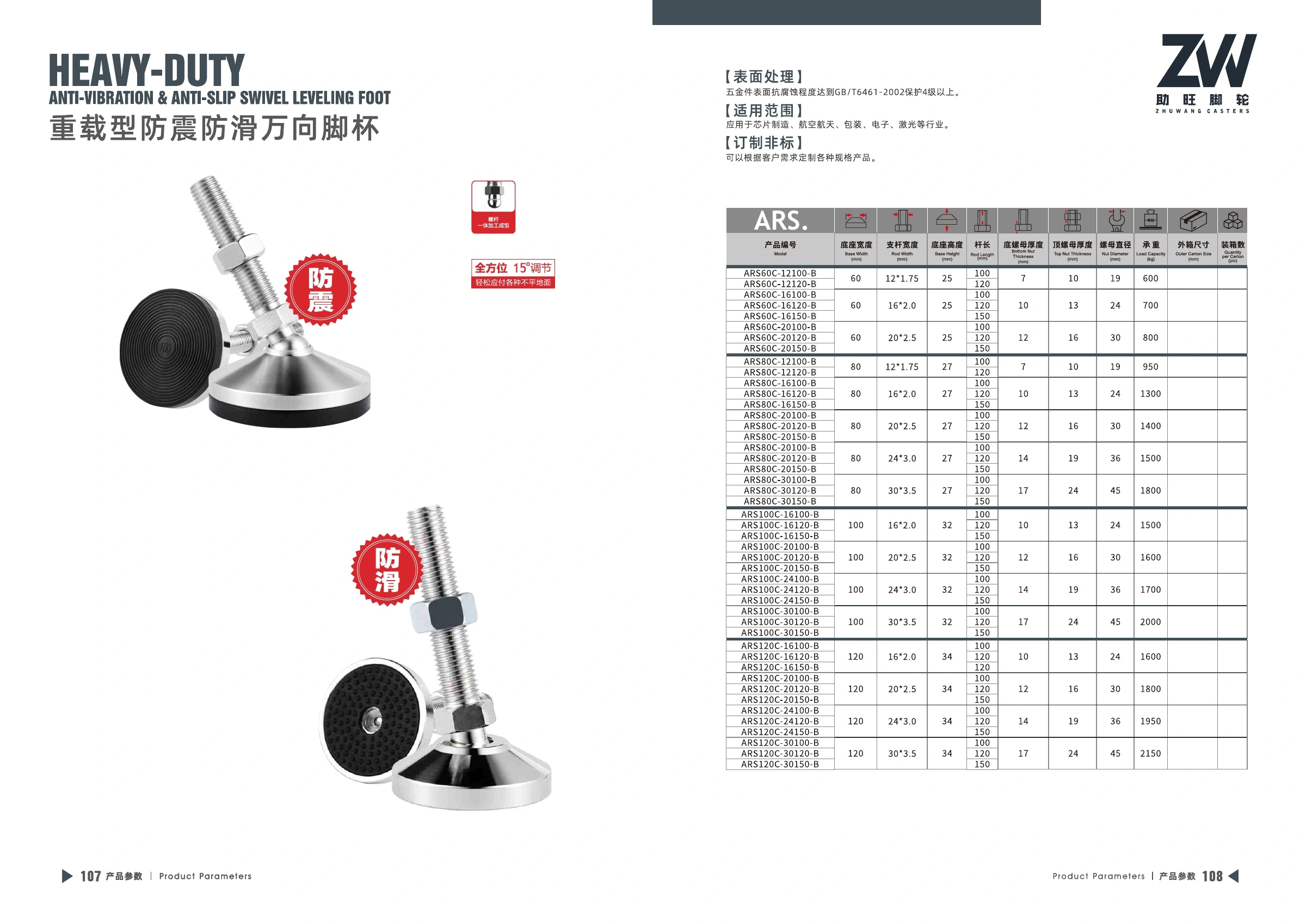

PDF page 55 · Printed folios 107, 108
Structure & application
Mounting information.
Articulating base with anti-vibration pad
Metal grade and full material specification: pending confirmation.
Catalog-listed all-direction articulation: 15°. Confirm installation and operating conditions.
Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.
Application areas listed in the catalog
Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.
Catalog models & specifications
Base, screw & listed loads.
| Manufacturer model | Base width | Screw / thread notation | Base height | Rod-length column | Listed load | Inquiry |
|---|---|---|---|---|---|---|
| ARS60C-12100-B | 60 | 12*1.75 | 25 | 100 | 600 | Inquire ↗ |
| ARS60C-12120-B | 60 | 12*1.75 | 25 | 120 | 600 | Inquire ↗ |
| ARS60C-16100-B | 60 | 16*2.0 | 25 | 100 | 700 | Inquire ↗ |
| ARS60C-16120-B | 60 | 16*2.0 | 25 | 120 | 700 | Inquire ↗ |
| ARS60C-16150-B | 60 | 16*2.0 | 25 | 150 | 700 | Inquire ↗ |
| ARS60C-20100-B | 60 | 20*2.5 | 25 | 100 | 800 | Inquire ↗ |
| ARS60C-20120-B | 60 | 20*2.5 | 25 | 120 | 800 | Inquire ↗ |
| ARS60C-20150-B | 60 | 20*2.5 | 25 | 150 | 800 | Inquire ↗ |
| ARS80C-12100-B | 80 | 12*1.75 | 27 | 100 | 950 | Inquire ↗ |
| ARS80C-12120-B | 80 | 12*1.75 | 27 | 120 | 950 | Inquire ↗ |
| ARS80C-16100-B | 80 | 16*2.0 | 27 | 100 | 1300 | Inquire ↗ |
| ARS80C-16120-B | 80 | 16*2.0 | 27 | 120 | 1300 | Inquire ↗ |
| ARS80C-16150-B | 80 | 16*2.0 | 27 | 150 | 1300 | Inquire ↗ |
| ARS80C-20100-B | 80 | 20*2.5 | 27 | 100 | 1400 | Inquire ↗ |
| ARS80C-20120-B | 80 | 20*2.5 | 27 | 120 | 1400 | Inquire ↗ |
| ARS80C-20150-B | 80 | 20*2.5 | 27 | 150 | 1400 | Inquire ↗ |
| ARS80C-20100-B | 80 | 24*3.0 | 27 | 100 | 1500 | Inquire ↗ |
| ARS80C-20120-B | 80 | 24*3.0 | 27 | 120 | 1500 | Inquire ↗ |
| ARS80C-20150-B | 80 | 24*3.0 | 27 | 150 | 1500 | Inquire ↗ |
| ARS80C-30100-B | 80 | 30*3.5 | 27 | 100 | 1800 | Inquire ↗ |
| ARS80C-30120-B | 80 | 30*3.5 | 27 | 120 | 1800 | Inquire ↗ |
| ARS80C-30150-B | 80 | 30*3.5 | 27 | 150 | 1800 | Inquire ↗ |
| ARS100C-16100-B | 100 | 16*2.0 | 32 | 100 | 1500 | Inquire ↗ |
| ARS100C-16120-B | 100 | 16*2.0 | 32 | 120 | 1500 | Inquire ↗ |
| ARS100C-16150-B | 100 | 16*2.0 | 32 | 150 | 1500 | Inquire ↗ |
| ARS100C-20100-B | 100 | 20*2.5 | 32 | 100 | 1600 | Inquire ↗ |
| ARS100C-20120-B | 100 | 20*2.5 | 32 | 120 | 1600 | Inquire ↗ |
| ARS100C-20150-B | 100 | 20*2.5 | 32 | 150 | 1600 | Inquire ↗ |
| ARS100C-24100-B | 100 | 24*3.0 | 32 | 100 | 1700 | Inquire ↗ |
| ARS100C-24120-B | 100 | 24*3.0 | 32 | 120 | 1700 | Inquire ↗ |
| ARS100C-24150-B | 100 | 24*3.0 | 32 | 150 | 1700 | Inquire ↗ |
| ARS100C-30100-B | 100 | 30*3.5 | 32 | 100 | 2000 | Inquire ↗ |
| ARS100C-30120-B | 100 | 30*3.5 | 32 | 120 | 2000 | Inquire ↗ |
| ARS100C-30150-B | 100 | 30*3.5 | 32 | 150 | 2000 | Inquire ↗ |
| ARS120C-16100-B | 120 | 16*2.0 | 34 | 100 | 1600 | Inquire ↗ |
| ARS120C-16120-B | 120 | 16*2.0 | 34 | 120 | 1600 | Inquire ↗ |
| ARS120C-16150-B | 120 | 16*2.0 | 34 | 150 | 1600 | Inquire ↗ |
| ARS120C-20100-B | 120 | 20*2.5 | 34 | 100 | 1800 | Inquire ↗ |
| ARS120C-20120-B | 120 | 20*2.5 | 34 | 120 | 1800 | Inquire ↗ |
| ARS120C-20150-B | 120 | 20*2.5 | 34 | 150 | 1800 | Inquire ↗ |
| ARS120C-24100-B | 120 | 24*3.0 | 34 | 100 | 1950 | Inquire ↗ |
| ARS120C-24120-B | 120 | 24*3.0 | 34 | 120 | 1950 | Inquire ↗ |
| ARS120C-24150-B | 120 | 24*3.0 | 34 | 150 | 1950 | Inquire ↗ |
| ARS120C-30100-B | 120 | 30*3.5 | 34 | 100 | 2150 | Inquire ↗ |
| ARS120C-30120-B | 120 | 30*3.5 | 34 | 120 | 2150 | Inquire ↗ |
| ARS120C-30150-B | 120 | 30*3.5 | 34 | 150 | 2150 | Inquire ↗ |
Additional dimensions, source references & pending confirmation
| Model | Bottom nut thickness | Top nut thickness | Nut diameter column | Source reference | Pending confirmation |
|---|---|---|---|---|---|
| ARS60C-12100-B | 7 | 10 | 19 | PDF 55, table 1, row 1 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS60C-12120-B | 7 | 10 | 19 | PDF 55, table 1, row 2 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS60C-16100-B | 10 | 13 | 24 | PDF 55, table 1, row 3 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS60C-16120-B | 10 | 13 | 24 | PDF 55, table 1, row 4 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS60C-16150-B | 10 | 13 | 24 | PDF 55, table 1, row 5 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS60C-20100-B | 12 | 16 | 30 | PDF 55, table 1, row 6 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS60C-20120-B | 12 | 16 | 30 | PDF 55, table 1, row 7 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS60C-20150-B | 12 | 16 | 30 | PDF 55, table 1, row 8 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS80C-12100-B | 7 | 10 | 19 | PDF 55, table 1, row 9 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS80C-12120-B | 7 | 10 | 19 | PDF 55, table 1, row 10 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS80C-16100-B | 10 | 13 | 24 | PDF 55, table 1, row 11 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS80C-16120-B | 10 | 13 | 24 | PDF 55, table 1, row 12 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS80C-16150-B | 10 | 13 | 24 | PDF 55, table 1, row 13 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS80C-20100-B | 12 | 16 | 30 | PDF 55, table 1, row 14 | Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation. |
| ARS80C-20120-B | 12 | 16 | 30 | PDF 55, table 1, row 15 | Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation. |
| ARS80C-20150-B | 12 | 16 | 30 | PDF 55, table 1, row 16 | Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation. |
| ARS80C-20100-B | 14 | 19 | 36 | PDF 55, table 1, row 17 | 24 mm screw group repeats a 20 mm printed model; pending confirmation. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation. |
| ARS80C-20120-B | 14 | 19 | 36 | PDF 55, table 1, row 18 | 24 mm screw group repeats a 20 mm printed model; pending confirmation. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation. |
| ARS80C-20150-B | 14 | 19 | 36 | PDF 55, table 1, row 19 | 24 mm screw group repeats a 20 mm printed model; pending confirmation. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation. Full material specification: pending confirmation. |
| ARS80C-30100-B | 17 | 24 | 45 | PDF 55, table 1, row 20 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS80C-30120-B | 17 | 24 | 45 | PDF 55, table 1, row 21 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS80C-30150-B | 17 | 24 | 45 | PDF 55, table 1, row 22 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-16100-B | 10 | 13 | 24 | PDF 55, table 1, row 23 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-16120-B | 10 | 13 | 24 | PDF 55, table 1, row 24 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-16150-B | 10 | 13 | 24 | PDF 55, table 1, row 25 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-20100-B | 12 | 16 | 30 | PDF 55, table 1, row 26 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-20120-B | 12 | 16 | 30 | PDF 55, table 1, row 27 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-20150-B | 12 | 16 | 30 | PDF 55, table 1, row 28 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-24100-B | 14 | 19 | 36 | PDF 55, table 1, row 29 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-24120-B | 14 | 19 | 36 | PDF 55, table 1, row 30 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-24150-B | 14 | 19 | 36 | PDF 55, table 1, row 31 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-30100-B | 17 | 24 | 45 | PDF 55, table 1, row 32 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-30120-B | 17 | 24 | 45 | PDF 55, table 1, row 33 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS100C-30150-B | 17 | 24 | 45 | PDF 55, table 1, row 34 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-16100-B | 10 | 13 | 24 | PDF 55, table 1, row 35 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-16120-B | 10 | 13 | 24 | PDF 55, table 1, row 36 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-16150-B | 10 | 13 | 24 | PDF 55, table 1, row 37 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-20100-B | 12 | 16 | 30 | PDF 55, table 1, row 38 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-20120-B | 12 | 16 | 30 | PDF 55, table 1, row 39 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-20150-B | 12 | 16 | 30 | PDF 55, table 1, row 40 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-24100-B | 14 | 19 | 36 | PDF 55, table 1, row 41 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-24120-B | 14 | 19 | 36 | PDF 55, table 1, row 42 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-24150-B | 14 | 19 | 36 | PDF 55, table 1, row 43 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-30100-B | 17 | 24 | 45 | PDF 55, table 1, row 44 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-30120-B | 17 | 24 | 45 | PDF 55, table 1, row 45 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
| ARS120C-30150-B | 17 | 24 | 45 | PDF 55, table 1, row 46 | Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation. |
View original catalog page
Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.
