Medium-Duty Nylon Leveling Foot

Medium-Duty Nylon Leveling Foot, ATN series. Compare catalog-listed base sizes, screw dimensions and load capacities.

Medium-Duty Nylon Leveling Foot

Original catalog product illustration. Select by the model and row dimensions.

Leveling Feet & Leveling Mounts

Medium Duty

Choose a support.
Confirm the installation.

Series ATN · Medium Duty
Base width: 40–80 mm · Listed load: 150–600 kg
Thread: 8*1.25, 10*1.5, 12*1.75, 14*2.0, 16*2.0, 20*2.5

Choose the listed model and confirm the mounting fit, operating conditions and required load before ordering.

Source series: ATN · 中载型尼龙定向脚杯
PDF page 52 · Printed folios 101, 102

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695

Structure & application

Mounting information.

Fixed nylon-base leveling foot

Nylon base

Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.

Application areas listed in the catalog

Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.

Catalog models & specifications

Base, screw & listed loads.

Dimensions in mm; listed loads in kg per item. Base width follows the source column and is not assumed to be the diameter of a non-circular base. Screw sizes are reproduced as printed.
Manufacturer modelBase widthScrew / thread notationBase heightRod-length columnListed loadInquiry
ATN40N-850408*1.251950150Inquire ↗
ATN40N-880408*1.251980150Inquire ↗
ATN40N-10504010*1.51950150Inquire ↗
ATN40N-10804010*1.51980150Inquire ↗
ATN40N-12504012*1.751950150Inquire ↗
ATN40N-12804012*1.751980150Inquire ↗
ATN50N-850508*1.252150300Inquire ↗
ATN50N-880508*1.252180300Inquire ↗
ATN50N-10505010*1.52150300Inquire ↗
ATN50N-10805010*1.52180300Inquire ↗
ATN50N-12505012*1.752150300Inquire ↗
ATN50N-121505012*1.7521150300Inquire ↗
ATN60N-121006012*1.7524100500Inquire ↗
ATN60N-121506012*1.7524150500Inquire ↗
ATN60N-141006014*2.024100500Inquire ↗
ATN60N-141506014*2.024150500Inquire ↗
ATN60N-161006016*2.024100500Inquire ↗
ATN60N-161506016*2.024150500Inquire ↗
ATN80N-161008016*2.025100500Inquire ↗
ATN80N-161508016*2.025150500Inquire ↗
ATN80N-201008020*2.525100600Inquire ↗
ATN80N-201508020*2.525150600Inquire ↗
Additional dimensions, source references & pending confirmation
Nut-column dimensions are retained as printed. A blank or slash is marked pending confirmation. Repeated model codes remain separate source rows.
ModelBottom nut thicknessTop nut thicknessNut diameter columnSource referencePending confirmation
ATN40N-8507714PDF 52, table 1, row 1Packing quantity and carton dimensions: pending confirmation.
ATN40N-8807714PDF 52, table 1, row 2Packing quantity and carton dimensions: pending confirmation.
ATN40N-10508814PDF 52, table 1, row 3Packing quantity and carton dimensions: pending confirmation.
ATN40N-10808814PDF 52, table 1, row 4Packing quantity and carton dimensions: pending confirmation.
ATN40N-1250101019PDF 52, table 1, row 5Packing quantity and carton dimensions: pending confirmation.
ATN40N-1280101019PDF 52, table 1, row 6Packing quantity and carton dimensions: pending confirmation.
ATN50N-8507714PDF 52, table 1, row 7Packing quantity and carton dimensions: pending confirmation.
ATN50N-8807714PDF 52, table 1, row 8Packing quantity and carton dimensions: pending confirmation.
ATN50N-10508814PDF 52, table 1, row 9Packing quantity and carton dimensions: pending confirmation.
ATN50N-10808814PDF 52, table 1, row 10Packing quantity and carton dimensions: pending confirmation.
ATN50N-1250101019PDF 52, table 1, row 11Packing quantity and carton dimensions: pending confirmation.
ATN50N-12150101019PDF 52, table 1, row 12Packing quantity and carton dimensions: pending confirmation.
ATN60N-12100101019PDF 52, table 1, row 13Packing quantity and carton dimensions: pending confirmation.
ATN60N-12150101019PDF 52, table 1, row 14Packing quantity and carton dimensions: pending confirmation.
ATN60N-14100111119PDF 52, table 1, row 15Packing quantity and carton dimensions: pending confirmation.
ATN60N-14150111119PDF 52, table 1, row 16Packing quantity and carton dimensions: pending confirmation.
ATN60N-16100131324PDF 52, table 1, row 17Packing quantity and carton dimensions: pending confirmation.
ATN60N-16150131324PDF 52, table 1, row 18Packing quantity and carton dimensions: pending confirmation.
ATN80N-16100131324PDF 52, table 1, row 19Packing quantity and carton dimensions: pending confirmation.
ATN80N-16150131324PDF 52, table 1, row 20Packing quantity and carton dimensions: pending confirmation.
ATN80N-20100161630PDF 52, table 1, row 21Packing quantity and carton dimensions: pending confirmation.
ATN80N-20150161630PDF 52, table 1, row 22Packing quantity and carton dimensions: pending confirmation.
View original catalog page

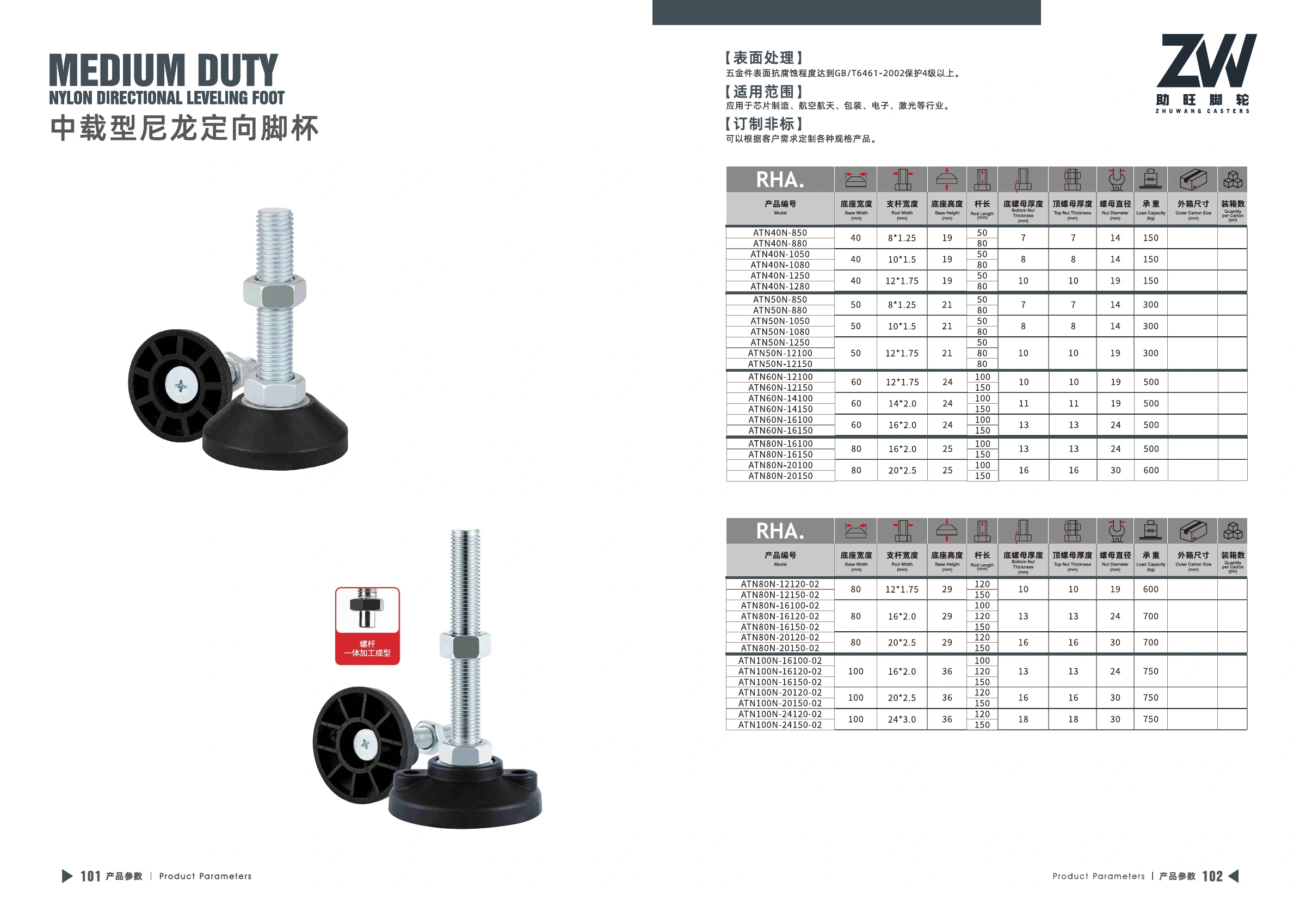

Product specifications for Medium-Duty Nylon Leveling Foot, PDF page 52
PDF page 52 · Open in latest catalog PDF

Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.
