Light-Duty E-Coated Rubber-Pad Leveling Foot

Light-Duty E-Coated Rubber-Pad Leveling Foot, ATR-BG series. Compare catalog-listed base sizes, screw dimensions and load capacities.

Light-Duty E-Coated Rubber-Pad Leveling Foot

Original catalog product illustration. Select by the model and row dimensions.

Leveling Feet & Leveling Mounts

Light DutyFurnitureElectrophoretic coating

Choose a support.
Confirm the installation.

Series ATR-BG · Light Duty
Base width: 29–50 mm · Listed load: 20–100 kg
Thread: 8, 10

Choose the listed model and confirm the mounting fit, operating conditions and required load before ordering.

Source series: ATR-BG · 轻载型家居电泳黑胶定向脚杯
PDF page 53 · Printed folios 103, 104

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695

Structure & application

Mounting information.

Fixed furniture leveling foot with black rubber pad

Rubber pad

Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.

Application areas listed in the catalog

Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.

Catalog models & specifications

Base, screw & listed loads.

Dimensions in mm; listed loads in kg per item. Base width follows the source column and is not assumed to be the diameter of a non-circular base. Screw sizes are reproduced as printed.
Manufacturer modelBase widthScrew / thread notationBase heightRod-length columnListed loadInquiry
ATR29B-815-BG298101520Inquire ↗
ATR29B-820-BG298102020Inquire ↗
ATR29B-830-BG298103020Inquire ↗
ATR29B-840-BG298104020Inquire ↗
ATR29B-850-BG298105020Inquire ↗
ATR29B-1015-BG2910101525Inquire ↗
ATR29B-1020-BG2910102025Inquire ↗
ATR29B-1030-BG2910103025Inquire ↗
ATR29B-1040-BG2910104025Inquire ↗
ATR29B-1050-BG2910105025Inquire ↗
ATR34B-815-BG348121525Inquire ↗
ATR34B-820-BG348122025Inquire ↗
ATR34B-830-BG348123025Inquire ↗
ATR34B-840-BG348124025Inquire ↗
ATR34B-850-BG348125025Inquire ↗
ATR34B-1015-BG3410121530Inquire ↗
ATR34B-1020-BG3410122030Inquire ↗
ATR34B-1030-BG3410123030Inquire ↗
ATR34B-1040-BG3410124030Inquire ↗
ATR34B-1050-BG3410125030Inquire ↗
ATR40B-815-BG408131530Inquire ↗
ATR40B-820-BG408132030Inquire ↗
ATR40B-830-BG408133030Inquire ↗
ATR40B-840-BG408134030Inquire ↗
ATR40B-850-BG408135030Inquire ↗
ATR40B-1015-BG4010131550Inquire ↗
ATR40B-1020-BG4010132050Inquire ↗
ATR40B-1030-BG4010133050Inquire ↗
ATR40B-1040-BG4010134050Inquire ↗
ATR40B-1050-BG4010135050Inquire ↗
ATR50B-815-BG508141570Inquire ↗
ATR50B-820-BG508142070Inquire ↗
ATR50B-830-BG508143070Inquire ↗
ATR50B-840-BG508144070Inquire ↗
ATR50B-850-BG508145070Inquire ↗
ATR50B-1015-BG50101415100Inquire ↗
ATR50B-1020-BG50101420100Inquire ↗
ATR50B-1030-BG50101430100Inquire ↗
ATR50B-1040-BG50101440100Inquire ↗
ATR500B-1050-BG50101450100Inquire ↗
Additional dimensions, source references & pending confirmation
Nut-column dimensions are retained as printed. A blank or slash is marked pending confirmation. Repeated model codes remain separate source rows.
ModelBottom nut thicknessTop nut thicknessNut diameter columnSource referencePending confirmation
ATR29B-815-BG5Pending confirmation12PDF 53, table 1, row 1Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR29B-820-BG5Pending confirmation12PDF 53, table 1, row 2Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR29B-830-BG5Pending confirmation12PDF 53, table 1, row 3Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR29B-840-BG5Pending confirmation12PDF 53, table 1, row 4Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR29B-850-BG5Pending confirmation12PDF 53, table 1, row 5Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR29B-1015-BG5Pending confirmation14PDF 53, table 1, row 6Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR29B-1020-BG5Pending confirmation14PDF 53, table 1, row 7Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR29B-1030-BG5Pending confirmation14PDF 53, table 1, row 8Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR29B-1040-BG5Pending confirmation14PDF 53, table 1, row 9Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR29B-1050-BG5Pending confirmation14PDF 53, table 1, row 10Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR34B-815-BG5Pending confirmation12PDF 53, table 1, row 11Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR34B-820-BG5Pending confirmation12PDF 53, table 1, row 12Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR34B-830-BG5Pending confirmation12PDF 53, table 1, row 13Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR34B-840-BG5Pending confirmation12PDF 53, table 1, row 14Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR34B-850-BG5Pending confirmation12PDF 53, table 1, row 15Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR34B-1015-BG5Pending confirmation14PDF 53, table 1, row 16Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR34B-1020-BG5Pending confirmation14PDF 53, table 1, row 17Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR34B-1030-BG5Pending confirmation14PDF 53, table 1, row 18Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR34B-1040-BG5Pending confirmation14PDF 53, table 1, row 19Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR34B-1050-BG5Pending confirmation14PDF 53, table 1, row 20Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR40B-815-BG5Pending confirmation12PDF 53, table 1, row 21Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR40B-820-BG5Pending confirmation12PDF 53, table 1, row 22Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR40B-830-BG5Pending confirmation12PDF 53, table 1, row 23Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR40B-840-BG5Pending confirmation12PDF 53, table 1, row 24Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR40B-850-BG5Pending confirmation12PDF 53, table 1, row 25Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR40B-1015-BG5Pending confirmation14PDF 53, table 1, row 26Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR40B-1020-BG5Pending confirmation14PDF 53, table 1, row 27Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR40B-1030-BG5Pending confirmation14PDF 53, table 1, row 28Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR40B-1040-BG5Pending confirmation14PDF 53, table 1, row 29Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR40B-1050-BG5Pending confirmation14PDF 53, table 1, row 30Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR50B-815-BG5Pending confirmation12PDF 53, table 1, row 31Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR50B-820-BG5Pending confirmation12PDF 53, table 1, row 32Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR50B-830-BG5Pending confirmation12PDF 53, table 1, row 33Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR50B-840-BG5Pending confirmation12PDF 53, table 1, row 34Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR50B-850-BG5Pending confirmation12PDF 53, table 1, row 35Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR50B-1015-BG5Pending confirmation14PDF 53, table 1, row 36Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR50B-1020-BG5Pending confirmation14PDF 53, table 1, row 37Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR50B-1030-BG5Pending confirmation14PDF 53, table 1, row 38Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR50B-1040-BG5Pending confirmation14PDF 53, table 1, row 39Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation.
ATR500B-1050-BG5Pending confirmation14PDF 53, table 1, row 40Thread pitch is not listed: pending confirmation. Packing quantity and carton dimensions: pending confirmation. Printed model ATR500B differs from the 50 mm base group; pending confirmation.

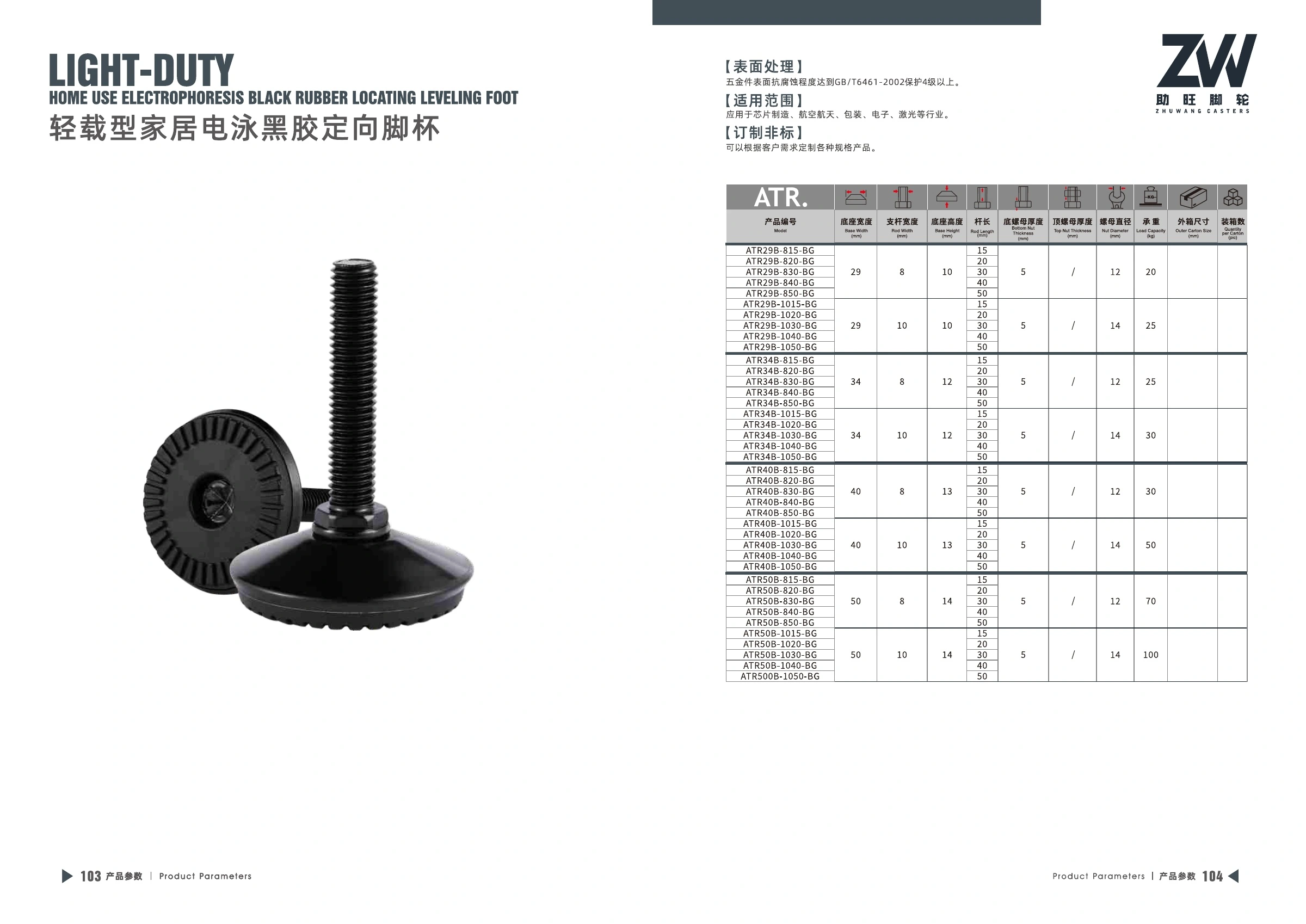

View original catalog page
Product specifications for Light-Duty E-Coated Rubber-Pad Leveling Foot, PDF page 53
PDF page 53 · Open in latest catalog PDF

Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.
