Light-Duty Nickel-Plated Rubber-Pad Leveling Foot
Light-Duty Nickel-Plated Rubber-Pad Leveling Foot, ATR-BG-70 series. Compare catalog-listed base sizes, screw dimensions and load capacities.
Original catalog product illustration. Select by the model and row dimensions.
Leveling Feet & Leveling Mounts
Light DutyFurnitureNickel-platedChoose a support.
Confirm the installation.
Series ATR-BG-70 · Light Duty
Base width: 25–70 mm · Listed load: 20–200 kg
Thread: 6, 8, 10
Several model groups disagree with their base or screw-size cells. Exact printed models and column values are retained; confirm the model and matching screw size.
Source series: ATR-BG-70 · 轻载型家居镀镍胶垫定向脚杯

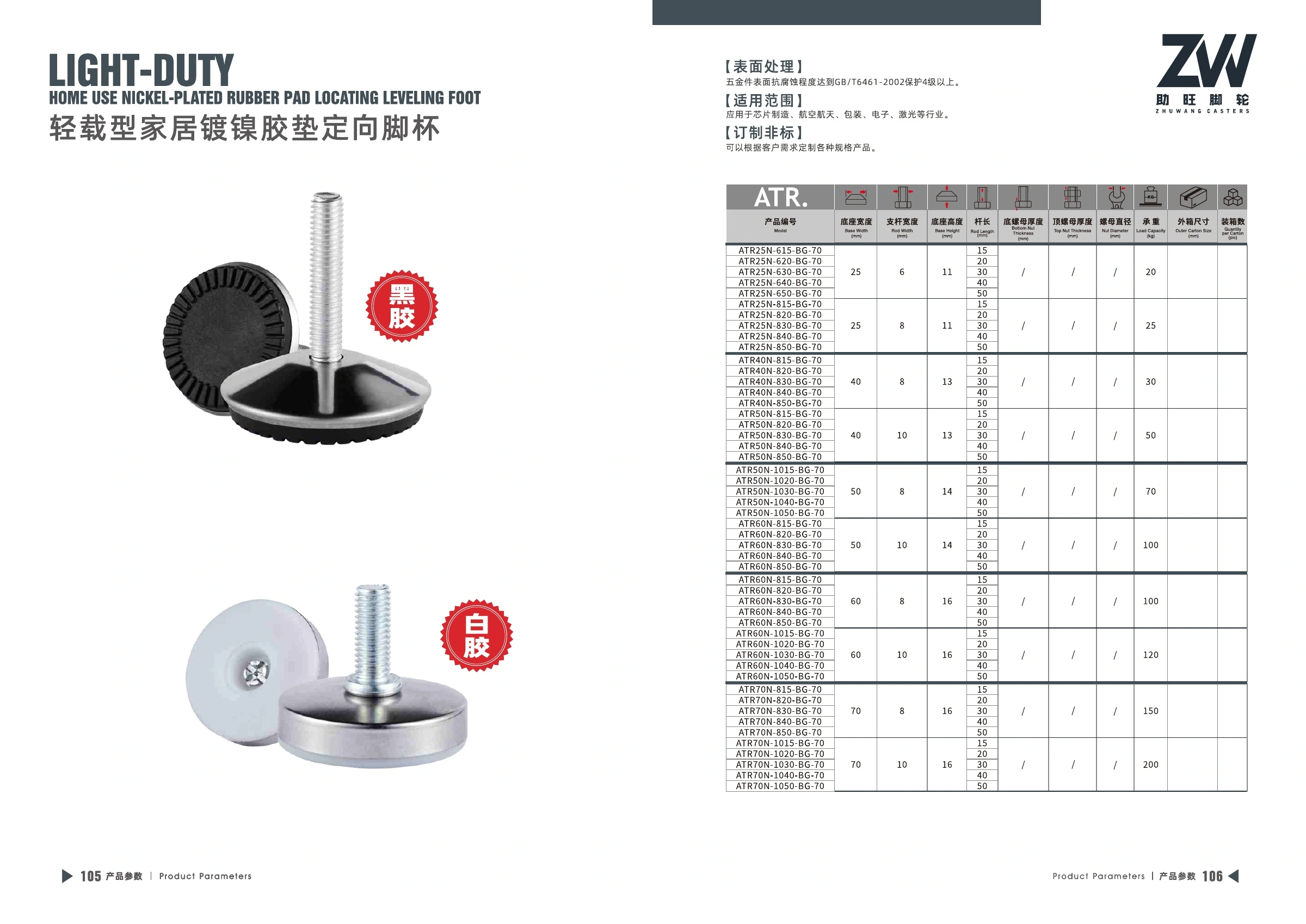

PDF page 54 · Printed folios 105, 106
Structure & application
Mounting information.
Fixed furniture leveling foot with rubber pad
Rubber pad
Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.
Application areas listed in the catalog
Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.
Catalog models & specifications
Base, screw & listed loads.
| Manufacturer model | Base width | Screw / thread notation | Base height | Rod-length column | Listed load | Inquiry |
|---|---|---|---|---|---|---|
| ATR25N-615-BG-70 | 25 | 6 | 11 | 15 | 20 | Inquire ↗ |
| ATR25N-620-BG-70 | 25 | 6 | 11 | 20 | 20 | Inquire ↗ |
| ATR25N-630-BG-70 | 25 | 6 | 11 | 30 | 20 | Inquire ↗ |
| ATR25N-640-BG-70 | 25 | 6 | 11 | 40 | 20 | Inquire ↗ |
| ATR25N-650-BG-70 | 25 | 6 | 11 | 50 | 20 | Inquire ↗ |
| ATR25N-815-BG-70 | 25 | 8 | 11 | 15 | 25 | Inquire ↗ |
| ATR25N-820-BG-70 | 25 | 8 | 11 | 20 | 25 | Inquire ↗ |
| ATR25N-830-BG-70 | 25 | 8 | 11 | 30 | 25 | Inquire ↗ |
| ATR25N-840-BG-70 | 25 | 8 | 11 | 40 | 25 | Inquire ↗ |
| ATR25N-850-BG-70 | 25 | 8 | 11 | 50 | 25 | Inquire ↗ |
| ATR40N-815-BG-70 | 40 | 8 | 13 | 15 | 30 | Inquire ↗ |
| ATR40N-820-BG-70 | 40 | 8 | 13 | 20 | 30 | Inquire ↗ |
| ATR40N-830-BG-70 | 40 | 8 | 13 | 30 | 30 | Inquire ↗ |
| ATR40N-840-BG-70 | 40 | 8 | 13 | 40 | 30 | Inquire ↗ |
| ATR40N-850-BG-70 | 40 | 8 | 13 | 50 | 30 | Inquire ↗ |
| ATR50N-815-BG-70 | 40 | 10 | 13 | 15 | 50 | Inquire ↗ |
| ATR50N-820-BG-70 | 40 | 10 | 13 | 20 | 50 | Inquire ↗ |
| ATR50N-830-BG-70 | 40 | 10 | 13 | 30 | 50 | Inquire ↗ |
| ATR50N-840-BG-70 | 40 | 10 | 13 | 40 | 50 | Inquire ↗ |
| ATR50N-850-BG-70 | 40 | 10 | 13 | 50 | 50 | Inquire ↗ |
| ATR50N-1015-BG-70 | 50 | 8 | 14 | 15 | 70 | Inquire ↗ |
| ATR50N-1020-BG-70 | 50 | 8 | 14 | 20 | 70 | Inquire ↗ |
| ATR50N-1030-BG-70 | 50 | 8 | 14 | 30 | 70 | Inquire ↗ |
| ATR50N-1040-BG-70 | 50 | 8 | 14 | 40 | 70 | Inquire ↗ |
| ATR50N-1050-BG-70 | 50 | 8 | 14 | 50 | 70 | Inquire ↗ |
| ATR60N-815-BG-70 | 50 | 10 | 14 | 15 | 100 | Inquire ↗ |
| ATR60N-820-BG-70 | 50 | 10 | 14 | 20 | 100 | Inquire ↗ |
| ATR60N-830-BG-70 | 50 | 10 | 14 | 30 | 100 | Inquire ↗ |
| ATR60N-840-BG-70 | 50 | 10 | 14 | 40 | 100 | Inquire ↗ |
| ATR60N-850-BG-70 | 50 | 10 | 14 | 50 | 100 | Inquire ↗ |
| ATR60N-815-BG-70 | 60 | 8 | 16 | 15 | 100 | Inquire ↗ |
| ATR60N-820-BG-70 | 60 | 8 | 16 | 20 | 100 | Inquire ↗ |
| ATR60N-830-BG-70 | 60 | 8 | 16 | 30 | 100 | Inquire ↗ |
| ATR60N-840-BG-70 | 60 | 8 | 16 | 40 | 100 | Inquire ↗ |
| ATR60N-850-BG-70 | 60 | 8 | 16 | 50 | 100 | Inquire ↗ |
| ATR60N-1015-BG-70 | 60 | 10 | 16 | 15 | 120 | Inquire ↗ |
| ATR60N-1020-BG-70 | 60 | 10 | 16 | 20 | 120 | Inquire ↗ |
| ATR60N-1030-BG-70 | 60 | 10 | 16 | 30 | 120 | Inquire ↗ |
| ATR60N-1040-BG-70 | 60 | 10 | 16 | 40 | 120 | Inquire ↗ |
| ATR60N-1050-BG-70 | 60 | 10 | 16 | 50 | 120 | Inquire ↗ |
| ATR70N-815-BG-70 | 70 | 8 | 16 | 15 | 150 | Inquire ↗ |
| ATR70N-820-BG-70 | 70 | 8 | 16 | 20 | 150 | Inquire ↗ |
| ATR70N-830-BG-70 | 70 | 8 | 16 | 30 | 150 | Inquire ↗ |
| ATR70N-840-BG-70 | 70 | 8 | 16 | 40 | 150 | Inquire ↗ |
| ATR70N-850-BG-70 | 70 | 8 | 16 | 50 | 150 | Inquire ↗ |
| ATR70N-1015-BG-70 | 70 | 10 | 16 | 15 | 200 | Inquire ↗ |
| ATR70N-1020-BG-70 | 70 | 10 | 16 | 20 | 200 | Inquire ↗ |
| ATR70N-1030-BG-70 | 70 | 10 | 16 | 30 | 200 | Inquire ↗ |
| ATR70N-1040-BG-70 | 70 | 10 | 16 | 40 | 200 | Inquire ↗ |
| ATR70N-1050-BG-70 | 70 | 10 | 16 | 50 | 200 | Inquire ↗ |
