Light-Duty Nickel-Plated Swivel Leveling Foot
Light-Duty Nickel-Plated Swivel Leveling Foot, CRS series. Compare catalog-listed base sizes, screw dimensions and load capacities.

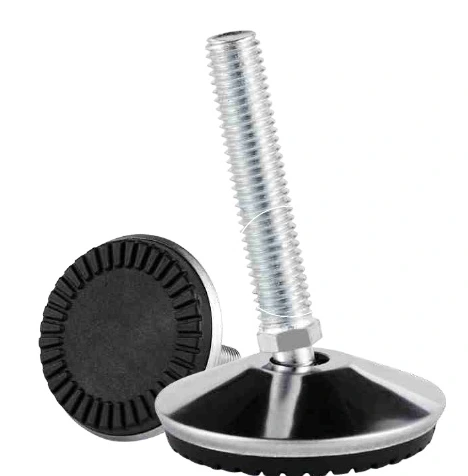

Original catalog product illustration. Select by the model and row dimensions.
Leveling Feet & Leveling Mounts
Light DutySwivel / ArticulatingFurnitureNickel-platedChoose a support.
Confirm the installation.
Series CRS · Light Duty
Base width: 33–76 mm · Listed load: 40–200 kg
Thread: 11, 8, 10, 16
Choose the listed model and confirm the mounting fit, operating conditions and required load before ordering.
Source series: CRS · 轻载型家居镀镍黑胶万向脚杯

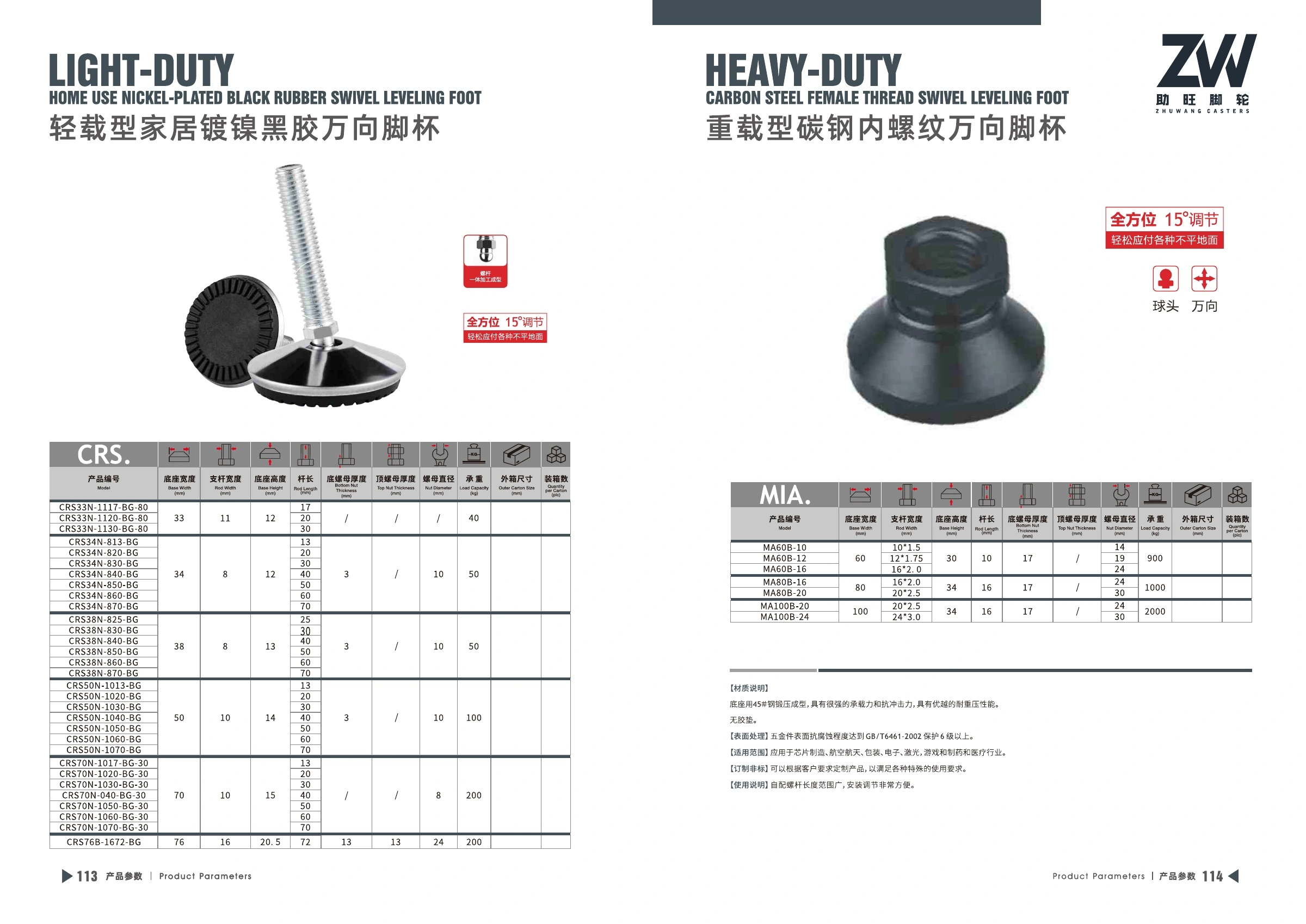

PDF page 58 · Printed folios 113, 114
Structure & application
Mounting information.
Articulating furniture base with black rubber pad
Rubber pad
Catalog-listed all-direction articulation: 15°. Confirm installation and operating conditions.
Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.
Application areas listed in the catalog
Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.
Catalog models & specifications
Base, screw & listed loads.
| Manufacturer model | Base width | Screw / thread notation | Base height | Rod-length column | Listed load | Inquiry |
|---|---|---|---|---|---|---|
| CRS33N-1117-BG-80 | 33 | 11 | 12 | 17 | 40 | Inquire ↗ |
| CRS33N-1120-BG-80 | 33 | 11 | 12 | 20 | 40 | Inquire ↗ |
| CRS33N-1130-BG-80 | 33 | 11 | 12 | 30 | 40 | Inquire ↗ |
| CRS34N-813-BG | 34 | 8 | 12 | 13 | 50 | Inquire ↗ |
| CRS34N-820-BG | 34 | 8 | 12 | 20 | 50 | Inquire ↗ |
| CRS34N-830-BG | 34 | 8 | 12 | 30 | 50 | Inquire ↗ |
| CRS34N-840-BG | 34 | 8 | 12 | 40 | 50 | Inquire ↗ |
| CRS34N-850-BG | 34 | 8 | 12 | 50 | 50 | Inquire ↗ |
| CRS34N-860-BG | 34 | 8 | 12 | 60 | 50 | Inquire ↗ |
| CRS34N-870-BG | 34 | 8 | 12 | 70 | 50 | Inquire ↗ |
| CRS38N-825-BG | 38 | 8 | 13 | 25 | 50 | Inquire ↗ |
| CRS38N-830-BG | 38 | 8 | 13 | 30 | 50 | Inquire ↗ |
| CRS38N-840-BG | 38 | 8 | 13 | 40 | 50 | Inquire ↗ |
| CRS38N-850-BG | 38 | 8 | 13 | 50 | 50 | Inquire ↗ |
| CRS38N-860-BG | 38 | 8 | 13 | 60 | 50 | Inquire ↗ |
| CRS38N-870-BG | 38 | 8 | 13 | 70 | 50 | Inquire ↗ |
| CRS50N-1013-BG | 50 | 10 | 14 | 13 | 100 | Inquire ↗ |
| CRS50N-1020-BG | 50 | 10 | 14 | 20 | 100 | Inquire ↗ |
| CRS50N-1030-BG | 50 | 10 | 14 | 30 | 100 | Inquire ↗ |
| CRS50N-1040-BG | 50 | 10 | 14 | 40 | 100 | Inquire ↗ |
| CRS50N-1050-BG | 50 | 10 | 14 | 50 | 100 | Inquire ↗ |
| CRS50N-1060-BG | 50 | 10 | 14 | 60 | 100 | Inquire ↗ |
| CRS50N-1070-BG | 50 | 10 | 14 | 70 | 100 | Inquire ↗ |
| CRS70N-1017-BG-30 | 70 | 10 | 15 | 13 | 200 | Inquire ↗ |
| CRS70N-1020-BG-30 | 70 | 10 | 15 | 20 | 200 | Inquire ↗ |
| CRS70N-1030-BG-30 | 70 | 10 | 15 | 30 | 200 | Inquire ↗ |
| CRS70N-1040-BG-30 | 70 | 10 | 15 | 40 | 200 | Inquire ↗ |
| CRS70N-1050-BG-30 | 70 | 10 | 15 | 50 | 200 | Inquire ↗ |
| CRS70N-1060-BG-30 | 70 | 10 | 15 | 60 | 200 | Inquire ↗ |
| CRS70N-1070-BG-30 | 70 | 10 | 15 | 70 | 200 | Inquire ↗ |
| CRS76B-1672-BG | 76 | 16 | 20.5 | 72 | 200 | Inquire ↗ |
Additional dimensions, source references & pending confirmation
| Model | Bottom nut thickness | Top nut thickness | Nut diameter column | Source reference | Pending confirmation |
|---|---|---|---|---|---|
| CRS33N-1117-BG-80 | Pending confirmation | Pending confirmation | Pending confirmation | PDF 58, table 1, row 1 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS33N-1120-BG-80 | Pending confirmation | Pending confirmation | Pending confirmation | PDF 58, table 1, row 2 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS33N-1130-BG-80 | Pending confirmation | Pending confirmation | Pending confirmation | PDF 58, table 1, row 3 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS34N-813-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 4 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS34N-820-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 5 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS34N-830-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 6 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS34N-840-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 7 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS34N-850-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 8 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS34N-860-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 9 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS34N-870-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 10 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS38N-825-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 11 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS38N-830-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 12 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS38N-840-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 13 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS38N-850-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 14 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS38N-860-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 15 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS38N-870-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 16 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS50N-1013-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 17 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS50N-1020-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 18 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS50N-1030-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 19 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS50N-1040-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 20 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS50N-1050-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 21 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS50N-1060-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 22 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS50N-1070-BG | 3 | Pending confirmation | 10 | PDF 58, table 1, row 23 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS70N-1017-BG-30 | Pending confirmation | Pending confirmation | 8 | PDF 58, table 1, row 24 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. Model ends 1017 but rod length is printed 13 mm; retained as printed. |
| CRS70N-1020-BG-30 | Pending confirmation | Pending confirmation | 8 | PDF 58, table 1, row 25 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS70N-1030-BG-30 | Pending confirmation | Pending confirmation | 8 | PDF 58, table 1, row 26 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS70N-1040-BG-30 | Pending confirmation | Pending confirmation | 8 | PDF 58, table 1, row 27 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS70N-1050-BG-30 | Pending confirmation | Pending confirmation | 8 | PDF 58, table 1, row 28 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS70N-1060-BG-30 | Pending confirmation | Pending confirmation | 8 | PDF 58, table 1, row 29 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS70N-1070-BG-30 | Pending confirmation | Pending confirmation | 8 | PDF 58, table 1, row 30 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
| CRS76B-1672-BG | 13 | 13 | 24 | PDF 58, table 1, row 31 | Thread pitch not specified: pending confirmation. Packing quantity and carton dimensions: pending confirmation. |
View original catalog page
Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.
