Medium-Duty Iron Locating Leveling Foot

Medium-Duty Iron Locating Leveling Foot, HDA series. Compare catalog-listed base sizes, screw dimensions and load capacities.

Medium-Duty Iron Locating Leveling Foot

Original catalog product illustration. Select by the model and row dimensions.

Leveling Feet & Leveling Mounts

Medium DutyLocating holes

Choose a support.
Confirm the installation.

Series HDA · Medium Duty
Base width: 100–115 mm · Listed load: 200–300 kg
Thread: 12*1.75, 16*2.0

Choose the listed model and confirm the mounting fit, operating conditions and required load before ordering.

Source series: HDA · 中载型铁质水滴形带定位定向脚杯
PDF page 50 · Printed folios 97, 98

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695

Structure & application

Mounting information.

Teardrop iron base with locating hole

Iron base

Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.

Application areas listed in the catalog

Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.

Catalog models & specifications

Base, screw & listed loads.

Dimensions in mm; listed loads in kg per item. Base width follows the source column and is not assumed to be the diameter of a non-circular base. Screw sizes are reproduced as printed.
Manufacturer modelBase widthScrew / thread notationBase heightRod-length columnListed loadInquiry
HDA100Z-1250-0210012*1.751350200Inquire ↗
HDA100Z-1275-0210012*1.751375200Inquire ↗
HDA100Z-12100-0210012*1.7513100200Inquire ↗
HDA100Z-12125-0210012*1.7513125200Inquire ↗
HDA100Z-12150-0210012*1.7513150200Inquire ↗
HDA100Z-1650-0210016*2.01350300Inquire ↗
HDA100Z-1675-0210016*2.01375300Inquire ↗
HDA100Z-16100-0210016*2.013100300Inquire ↗
HDA100Z-16125-0210016*2.013125300Inquire ↗
HDA100Z-16150-0210016*2.013150300Inquire ↗
HDA115Z-1250-0211512*1.751450200Inquire ↗
HDA115Z-1275-0211512*1.751475200Inquire ↗
HDA115Z-12100-0211512*1.7514100200Inquire ↗
HDA115Z-12125-0211512*1.7514125200Inquire ↗
HDA115Z-12150-0211512*1.7514150200Inquire ↗
HDA115Z-1650-0211516*2.01450300Inquire ↗
HDA115Z-1675-0211516*2.01475300Inquire ↗
HDA115Z-16100-0211516*2.014100300Inquire ↗
HDA115Z-16125-0211516*2.014125300Inquire ↗
HDA115Z-16150-0211516*2.014150300Inquire ↗
Additional dimensions, source references & pending confirmation
Nut-column dimensions are retained as printed. A blank or slash is marked pending confirmation. Repeated model codes remain separate source rows.
ModelBottom nut thicknessTop nut thicknessNut diameter columnSource referencePending confirmation
HDA100Z-1250-0281019PDF 50, table 2, row 1Packing quantity and carton dimensions: pending confirmation.
HDA100Z-1275-0281019PDF 50, table 2, row 2Packing quantity and carton dimensions: pending confirmation.
HDA100Z-12100-0281019PDF 50, table 2, row 3Packing quantity and carton dimensions: pending confirmation.
HDA100Z-12125-0281019PDF 50, table 2, row 4Packing quantity and carton dimensions: pending confirmation.
HDA100Z-12150-0281019PDF 50, table 2, row 5Packing quantity and carton dimensions: pending confirmation.
HDA100Z-1650-02101324PDF 50, table 2, row 6Packing quantity and carton dimensions: pending confirmation.
HDA100Z-1675-02101324PDF 50, table 2, row 7Packing quantity and carton dimensions: pending confirmation.
HDA100Z-16100-02101324PDF 50, table 2, row 8Packing quantity and carton dimensions: pending confirmation.
HDA100Z-16125-02101324PDF 50, table 2, row 9Packing quantity and carton dimensions: pending confirmation.
HDA100Z-16150-02101324PDF 50, table 2, row 10Packing quantity and carton dimensions: pending confirmation.
HDA115Z-1250-0281019PDF 50, table 2, row 11Packing quantity and carton dimensions: pending confirmation.
HDA115Z-1275-0281019PDF 50, table 2, row 12Packing quantity and carton dimensions: pending confirmation.
HDA115Z-12100-0281019PDF 50, table 2, row 13Packing quantity and carton dimensions: pending confirmation.
HDA115Z-12125-0281019PDF 50, table 2, row 14Packing quantity and carton dimensions: pending confirmation.
HDA115Z-12150-0281019PDF 50, table 2, row 15Packing quantity and carton dimensions: pending confirmation.
HDA115Z-1650-02101324PDF 50, table 2, row 16Packing quantity and carton dimensions: pending confirmation.
HDA115Z-1675-02101324PDF 50, table 2, row 17Packing quantity and carton dimensions: pending confirmation.
HDA115Z-16100-02101324PDF 50, table 2, row 18Packing quantity and carton dimensions: pending confirmation.
HDA115Z-16125-02101324PDF 50, table 2, row 19Packing quantity and carton dimensions: pending confirmation.
HDA115Z-16150-02101324PDF 50, table 2, row 20Packing quantity and carton dimensions: pending confirmation.

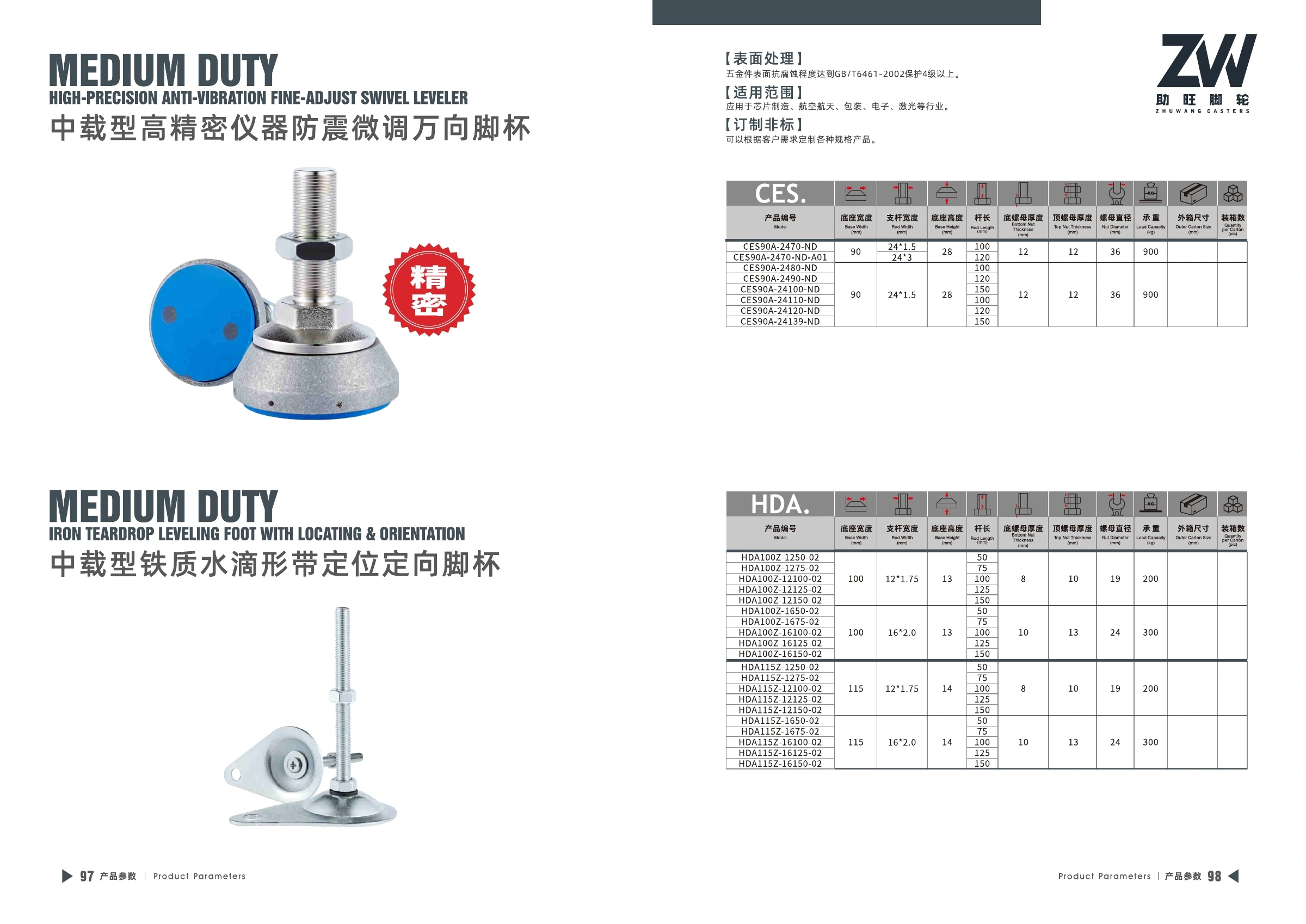

View original catalog page
Product specifications for Medium-Duty Iron Locating Leveling Foot, PDF page 50
PDF page 50 · Open in latest catalog PDF

Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.
