Medium-Duty Adjustable-Height Leveling Foot

Medium-Duty Adjustable-Height Leveling Foot, HEB series. Compare catalog-listed base sizes, screw dimensions and load capacities.

Original catalog product illustration. Select by the model and row dimensions.

Leveling Feet & Leveling Mounts

Medium Duty

Choose a support.
Confirm the installation.

Series HEB · Medium Duty
Base width: 120 mm · Listed load: 300 kg
Thread: 12*1.75

The source title suggests electric lifting, but no motor, power or control specification is given. Powered actuation is pending confirmation; it is not advertised here.

Source series: HEB · 中载型电可升降定向脚杯
PDF page 51 · Printed folios 99, 100

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695

Structure & application

Mounting information.

Adjustable-height fixed leveling foot

Metal grade and full material specification: pending confirmation.

Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.

Application areas listed in the catalog

Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.

Catalog models & specifications

Base, screw & listed loads.

Dimensions in mm; listed loads in kg per item. Base width follows the source column and is not assumed to be the diameter of a non-circular base. Screw sizes are reproduced as printed.
Manufacturer model	Base width	Screw / thread notation	Base height	Rod-length column	Listed load	Inquiry
HEB120B-12120-BB	120	12*1.75	39-47	120	300	Inquire ↗

Additional dimensions, source references & pending confirmation

Nut-column dimensions are retained as printed. A blank or slash is marked pending confirmation. Repeated model codes remain separate source rows.
Model	Bottom nut thickness	Top nut thickness	Nut diameter column	Source reference	Pending confirmation
HEB120B-12120-BB	10	10	8	PDF 51, table 2, row 1	Packing quantity and carton dimensions: pending confirmation. Actuation method and the printed 8 mm nut diameter require confirmation. Full material specification: pending confirmation.

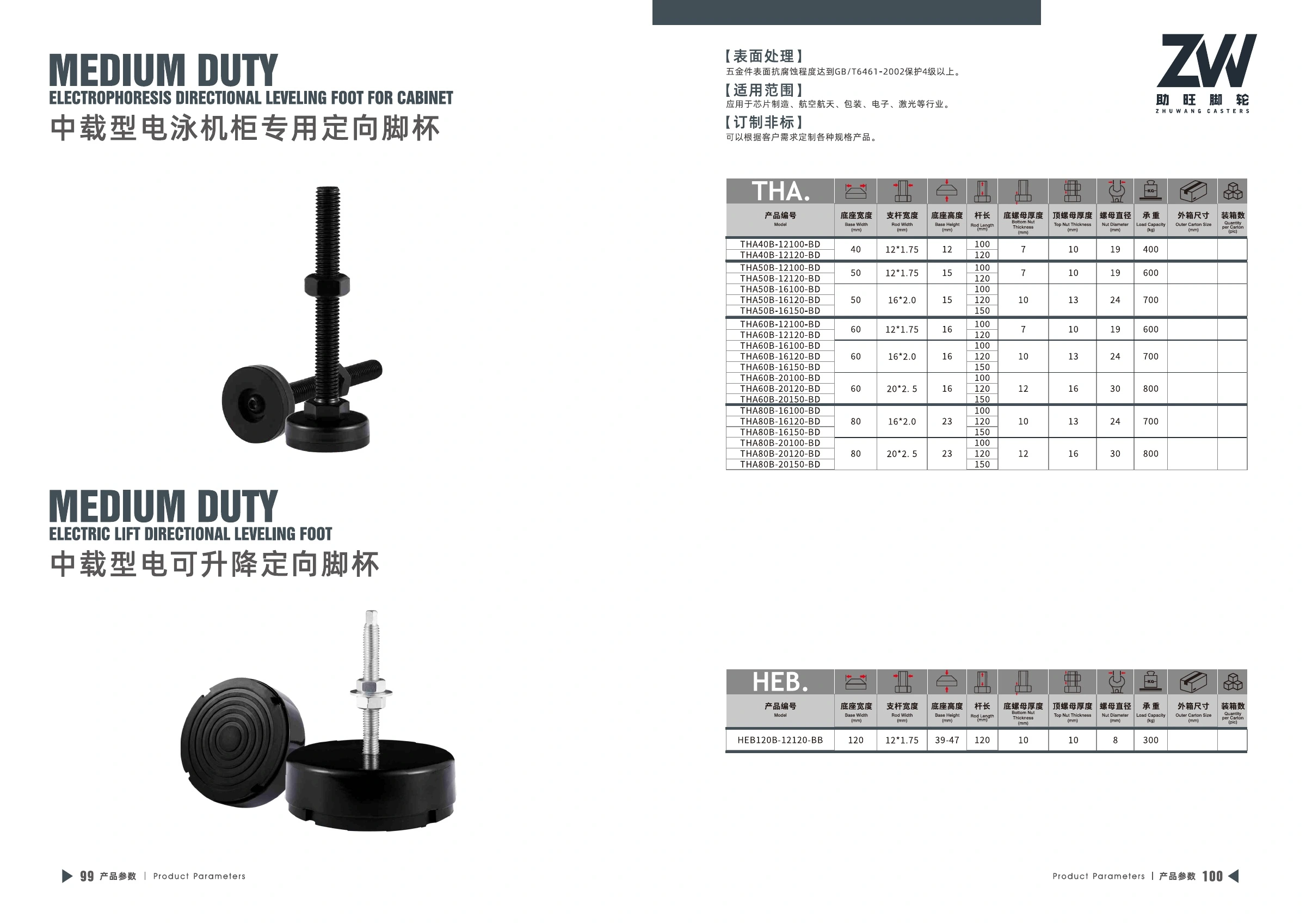

View original catalog page

Product specifications for Medium-Duty Adjustable-Height Leveling Foot, PDF page 51 — PDF page 51 · Open in latest catalog PDF

Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.
