Medium-Duty Locating-Hole Swivel Leveling Foot

Medium-Duty Locating-Hole Swivel Leveling Foot, MTS-2 series. Compare catalog-listed base sizes, screw dimensions and load capacities.

Medium-Duty Locating-Hole Swivel Leveling Foot

Original catalog product illustration. Select by the model and row dimensions.

Leveling Feet & Leveling Mounts

Medium DutySwivel / ArticulatingLocating holes

Choose a support.
Confirm the installation.

Series MTS-2 · Medium Duty
Base width: 100–120 mm · Listed load: 750–850 kg
Thread: M16*2.0, M20*2.5

Choose the listed model and confirm the mounting fit, operating conditions and required load before ordering.

Source series: MTS-2 · 中载型带定位孔万向脚杯
PDF page 56 · Printed folios 109, 110

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695

Structure & application

Mounting information.

Articulating base with locating holes

Metal grade and full material specification: pending confirmation.

Catalog-listed all-direction articulation: 15°. Confirm installation and operating conditions.

Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.

Application areas listed in the catalog

Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.

Catalog models & specifications

Base, screw & listed loads.

Dimensions in mm; listed loads in kg per item. Base width follows the source column and is not assumed to be the diameter of a non-circular base. Screw sizes are reproduced as printed.
Manufacturer modelBase widthScrew / thread notationBase heightRod-length columnListed loadInquiry
MTS100Z-16100-2100M16*2.033100750Inquire ↗
MTS100Z-16120-2100M16*2.033120750Inquire ↗
MTS100Z-16150-2100M16*2.033150750Inquire ↗
MTS100Z-20100-2100M20*2.533100750Inquire ↗
MTS100Z-20120-2100M20*2.533120750Inquire ↗
MTS100Z-20150-2100M20*2.533150750Inquire ↗
MTS120Z-16100-2120M16*2.036100850Inquire ↗
MTS120Z-16120-2120M16*2.036120850Inquire ↗
MTS120Z-16150-2120M16*2.036150850Inquire ↗
MTS120Z-20100-2120M20*2.536100850Inquire ↗
MTS120Z-20120-2120M20*2.536120850Inquire ↗
MTS120Z-20150-2120M20*2.536150850Inquire ↗
Additional dimensions, source references & pending confirmation
Nut-column dimensions are retained as printed. A blank or slash is marked pending confirmation. Repeated model codes remain separate source rows.
ModelBottom nut thicknessTop nut thicknessNut diameter columnSource referencePending confirmation
MTS100Z-16100-2131324PDF 56, table 2, row 1Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
MTS100Z-16120-2131324PDF 56, table 2, row 2Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
MTS100Z-16150-2131324PDF 56, table 2, row 3Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
MTS100Z-20100-2161630PDF 56, table 2, row 4Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
MTS100Z-20120-2161630PDF 56, table 2, row 5Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
MTS100Z-20150-2161630PDF 56, table 2, row 6Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
MTS120Z-16100-2131324PDF 56, table 2, row 7Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
MTS120Z-16120-2131324PDF 56, table 2, row 8Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
MTS120Z-16150-2131324PDF 56, table 2, row 9Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
MTS120Z-20100-2161630PDF 56, table 2, row 10Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
MTS120Z-20120-2161630PDF 56, table 2, row 11Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
MTS120Z-20150-2161630PDF 56, table 2, row 12Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
View original catalog page

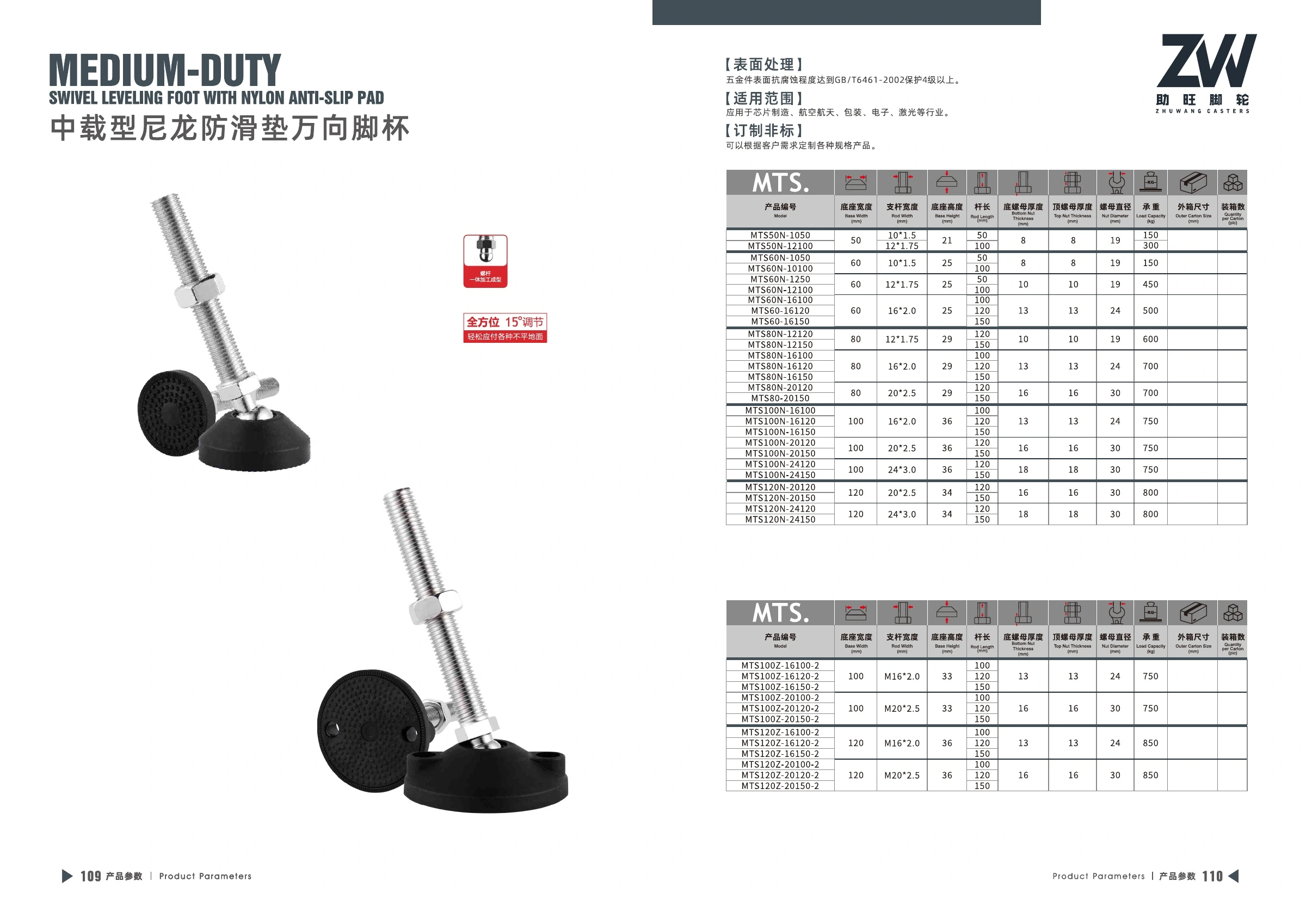

Product specifications for Medium-Duty Locating-Hole Swivel Leveling Foot, PDF page 56
PDF page 56 · Open in latest catalog PDF

Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.
