Economy Anti-Vibration Leveling Foot

Economy Anti-Vibration Leveling Foot, RHA-AF series. Compare catalog-listed base sizes, screw dimensions and load capacities.

Economy Anti-Vibration Leveling Foot

Original catalog product illustration. Select by the model and row dimensions.

Leveling Feet & Leveling Mounts

Duty pending confirmationAnti-Vibration

Choose a support.
Confirm the installation.

Series RHA-AF · Duty pending confirmation
Base width: 60–150 mm · Listed load: 850–2200 kg
Thread: 12*1.75, 16*2.0, 20*2.5, 24*3.0, 30*3.5

The catalog calls this an economy series but does not assign a light / medium / heavy duty class. Pad compound and metal grade are pending confirmation.

Source series: RHA-AF · 经济型防震垫定向脚杯
PDF page 45 · Printed folios 87, 88

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695

Structure & application

Mounting information.

Fixed leveling foot with vibration pad

Metal grade and full material specification: pending confirmation.

Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.

Application areas listed in the catalog

Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.

Catalog models & specifications

Base, screw & listed loads.

Dimensions in mm; listed loads in kg per item. Base width follows the source column and is not assumed to be the diameter of a non-circular base. Screw sizes are reproduced as printed.
Manufacturer modelBase widthScrew / thread notationBase heightRod-length columnListed loadInquiry
RHA60C-12100-AF6012*1.7523100850Inquire ↗
RHA60C-12120-AF6012*1.7523120850Inquire ↗
RHA60C-16100-AF6016*2.023100900Inquire ↗
RHA60C-16120-AF6016*2.023120900Inquire ↗
RHA60C-16150-AF6016*2.023150900Inquire ↗
RHA60C-20100-AF6020*2.5231001100Inquire ↗
RHA60C-20120-AF6020*2.5231201100Inquire ↗
RHA60C-20150-AF6020*2.5231501100Inquire ↗
RHA80C-12100-AF8012*1.7528100950Inquire ↗
RHA80C-12120-AF8012*1.7528120950Inquire ↗
RHA80C-16100-AF8016*2.0281001300Inquire ↗
RHA80C-16120-AF8016*2.0281201300Inquire ↗
RHA80C-16150-AF8016*2.0281501300Inquire ↗
RHA80C-20100-AF8020*2.5281001400Inquire ↗
RHA80C-20120-AF8020*2.5281201400Inquire ↗
RHA80C-20150-AF8020*2.5281501400Inquire ↗
RHA80C-24100-AF8024*3.0281001500Inquire ↗
RHA80C-24120-AF8024*3.0281201500Inquire ↗
RHA80C-24150-AF8024*3.0281501500Inquire ↗
RHA80C-30100-AF8030*3.5281001800Inquire ↗
RHA80C-30120-AF8030*3.5281201800Inquire ↗
RHA80C-30150-AF8030*3.5281501800Inquire ↗
RHA100C-16100-AF10016*2.0281001400Inquire ↗
RHA100C-16120-AF10016*2.0281201400Inquire ↗
RHA100C-16150-AF10016*2.0281501400Inquire ↗
RHA100C-20100-AF10020*2.5281001600Inquire ↗
RHA100C-20120-AF10020*2.5281201600Inquire ↗
RHA100C-20150-AF10020*2.5281501600Inquire ↗
RHA100C-24100-AF10024*3.0281001700Inquire ↗
RHA100C-24120-AF10024*3.0281201700Inquire ↗
RHA100C-24150-AF10024*3.0281501700Inquire ↗
RHA100C-30100-AF10030*3.5281002000Inquire ↗
RHA100C-30120-AF10030*3.5281202000Inquire ↗
RHA100C-30150-AF10030*3.5281502000Inquire ↗
RHA120C-16100-AF12016*2.0291001500Inquire ↗
RHA120C-16120-AF12016*2.0291201500Inquire ↗
RHA120C-16150-AF12016*2.0291501500Inquire ↗
RHA120C-20100-AF12020*2.5291001700Inquire ↗
RHA120C-20120-AF12020*2.5291201700Inquire ↗
RHA120C-20150-AF12020*2.5291501700Inquire ↗
RHA120C-24100-AF12024*3.0291001800Inquire ↗
RHA120C-24120-AF12024*3.0291201800Inquire ↗
RHA120C-24150-AF12024*3.0291501800Inquire ↗
RHA120C-30100-AF12030*3.5291002100Inquire ↗
RHA120C-30120-AF12030*3.5291202100Inquire ↗
RHA120C-30150-AF12030*3.5291502100Inquire ↗
RHA150C-16100-AF15016*2.0281001600Inquire ↗
RHA150C-16120-AF15016*2.0281201600Inquire ↗
RHA150C-16150-AF15016*2.0281501600Inquire ↗
RHA150C-20100-AF15020*2.5281001800Inquire ↗
RHA150C-20120-AF15020*2.5281201800Inquire ↗
RHA150C-20150-AF15020*2.5281501800Inquire ↗
RHA150C-24100-AF15024*3.0281001900Inquire ↗
RHA150C-24120-AF15024*3.0281201900Inquire ↗
RHA150C-24150-AF15024*3.0281501900Inquire ↗
RHA150C-30100-AF15030*3.5281002200Inquire ↗
RHA150C-30120-AF15030*3.5281202200Inquire ↗
RHA150C-30150-AF15030*3.5281502200Inquire ↗
Additional dimensions, source references & pending confirmation
Nut-column dimensions are retained as printed. A blank or slash is marked pending confirmation. Repeated model codes remain separate source rows.
ModelBottom nut thicknessTop nut thicknessNut diameter columnSource referencePending confirmation
RHA60C-12100-AF71019PDF 45, table 1, row 1Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA60C-12120-AF71019PDF 45, table 1, row 2Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA60C-16100-AF101324PDF 45, table 1, row 3Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA60C-16120-AF101324PDF 45, table 1, row 4Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA60C-16150-AF101324PDF 45, table 1, row 5Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA60C-20100-AF121630PDF 45, table 1, row 6Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA60C-20120-AF121630PDF 45, table 1, row 7Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA60C-20150-AF121630PDF 45, table 1, row 8Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-12100-AF71019PDF 45, table 1, row 9Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-12120-AF71019PDF 45, table 1, row 10Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-16100-AF101324PDF 45, table 1, row 11Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-16120-AF101324PDF 45, table 1, row 12Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-16150-AF101324PDF 45, table 1, row 13Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-20100-AF121630PDF 45, table 1, row 14Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-20120-AF121630PDF 45, table 1, row 15Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-20150-AF121630PDF 45, table 1, row 16Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-24100-AF141936PDF 45, table 1, row 17Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-24120-AF141936PDF 45, table 1, row 18Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-24150-AF141936PDF 45, table 1, row 19Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-30100-AF172445PDF 45, table 1, row 20Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-30120-AF172445PDF 45, table 1, row 21Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA80C-30150-AF172445PDF 45, table 1, row 22Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-16100-AF101324PDF 45, table 1, row 23Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-16120-AF101324PDF 45, table 1, row 24Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-16150-AF101324PDF 45, table 1, row 25Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-20100-AF121630PDF 45, table 1, row 26Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-20120-AF121630PDF 45, table 1, row 27Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-20150-AF121630PDF 45, table 1, row 28Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-24100-AF141936PDF 45, table 1, row 29Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-24120-AF141936PDF 45, table 1, row 30Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-24150-AF141936PDF 45, table 1, row 31Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-30100-AF172445PDF 45, table 1, row 32Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-30120-AF172445PDF 45, table 1, row 33Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-30150-AF172445PDF 45, table 1, row 34Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-16100-AF101324PDF 45, table 1, row 35Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-16120-AF101324PDF 45, table 1, row 36Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-16150-AF101324PDF 45, table 1, row 37Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-20100-AF121630PDF 45, table 1, row 38Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-20120-AF121630PDF 45, table 1, row 39Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-20150-AF121630PDF 45, table 1, row 40Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-24100-AF141936PDF 45, table 1, row 41Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-24120-AF141936PDF 45, table 1, row 42Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-24150-AF141936PDF 45, table 1, row 43Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-30100-AF172445PDF 45, table 1, row 44Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-30120-AF172445PDF 45, table 1, row 45Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-30150-AF172445PDF 45, table 1, row 46Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-16100-AF101324PDF 45, table 1, row 47Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-16120-AF101324PDF 45, table 1, row 48Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-16150-AF101324PDF 45, table 1, row 49Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-20100-AF121630PDF 45, table 1, row 50Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-20120-AF121630PDF 45, table 1, row 51Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-20150-AF121630PDF 45, table 1, row 52Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-24100-AF141936PDF 45, table 1, row 53Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-24120-AF141936PDF 45, table 1, row 54Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-24150-AF141936PDF 45, table 1, row 55Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-30100-AF172445PDF 45, table 1, row 56Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-30120-AF172445PDF 45, table 1, row 57Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA150C-30150-AF172445PDF 45, table 1, row 58Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.

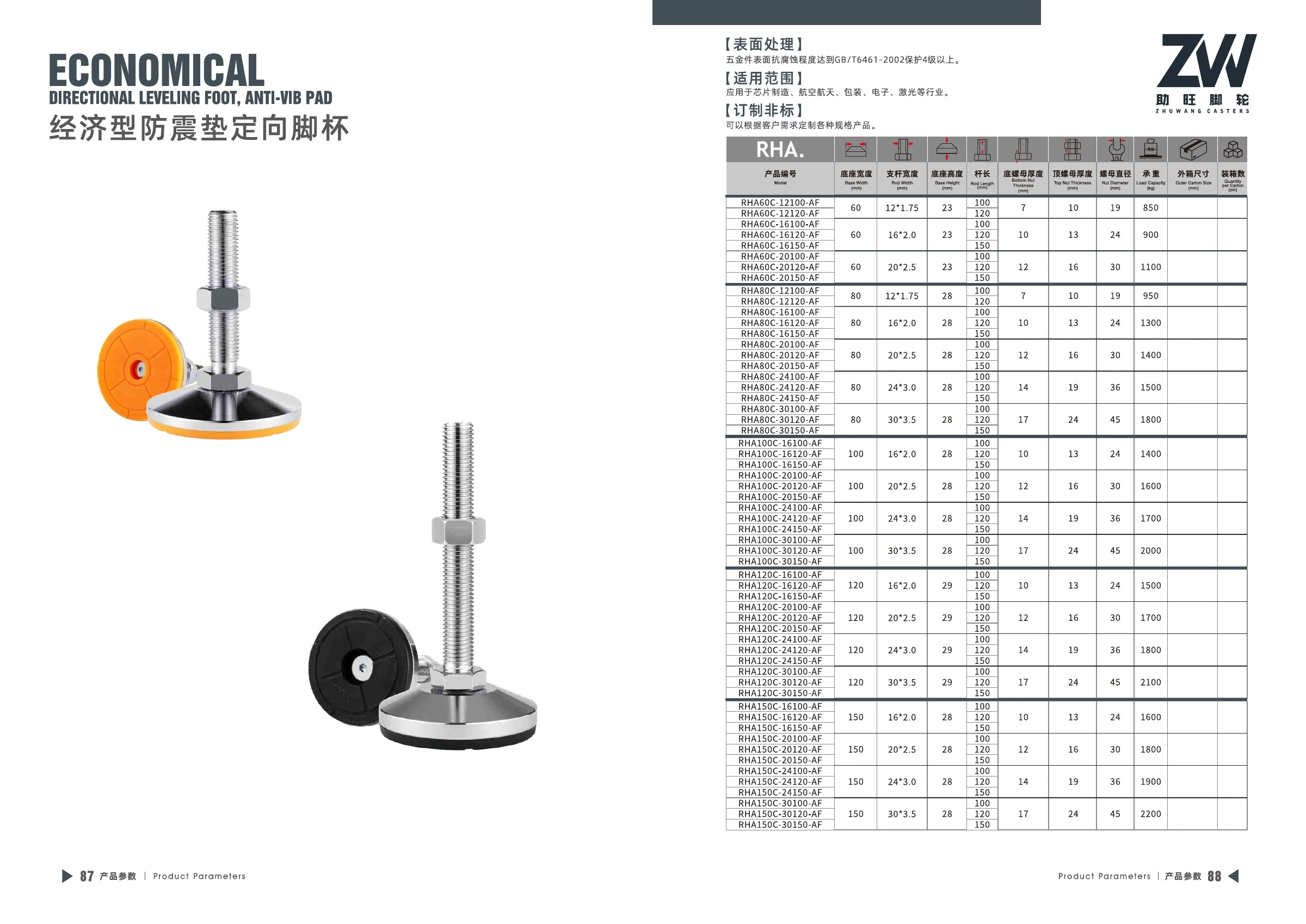

View original catalog page
Product specifications for Economy Anti-Vibration Leveling Foot, PDF page 45
PDF page 45 · Open in latest catalog PDF

Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.
