Economy Locating-Hole Leveling Foot

Economy Locating-Hole Leveling Foot, RHA-02 series. Compare catalog-listed base sizes, screw dimensions and load capacities.

Economy Locating-Hole Leveling Foot

Original catalog product illustration. Select by the model and row dimensions.

Leveling Feet & Leveling Mounts

Duty pending confirmationLocating holesNo rubber pad

Choose a support.
Confirm the installation.

Series RHA-02 · Duty pending confirmation
Base width: 100–120 mm · Listed load: 1400–2100 kg
Thread: 16*2.0, 20*2.5, 24*3.0, 30*3.5

Choose the listed model and confirm the mounting fit, operating conditions and required load before ordering.

Source series: RHA-02 · 经济型无胶垫定位孔定向脚杯
PDF page 46 · Printed folios 89, 90

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695

Structure & application

Mounting information.

Fixed base with locating holes, no rubber pad

Metal grade and full material specification: pending confirmation.

Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.

Application areas listed in the catalog

Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.

Catalog models & specifications

Base, screw & listed loads.

Dimensions in mm; listed loads in kg per item. Base width follows the source column and is not assumed to be the diameter of a non-circular base. Screw sizes are reproduced as printed.
Manufacturer modelBase widthScrew / thread notationBase heightRod-length columnListed loadInquiry
RHA100C-16100-0210016*2.0211001400Inquire ↗
RHA100C-16120-0210016*2.0211201400Inquire ↗
RHA100C-16150-0210016*2.0211501400Inquire ↗
RHA100C-20100-0210020*2.5211001600Inquire ↗
RHA100C-20120-0210020*2.5211201600Inquire ↗
RHA100C-20150-0210020*2.5211501600Inquire ↗
RHA100C-24100-0210024*3.0211001700Inquire ↗
RHA100C-24120-0210024*3.0211201700Inquire ↗
RHA100C-24150-0210024*3.0211501700Inquire ↗
RHA100C-30100-0210030*3.5211002000Inquire ↗
RHA100C-30120-0210030*3.5211202000Inquire ↗
RHA100C-30150-0210030*3.5211502000Inquire ↗
RHA120C-16100-0212016*2.0241001500Inquire ↗
RHA120C-16120-0212016*2.0241201500Inquire ↗
RHA120C-16150-0212016*2.0241501500Inquire ↗
RHA120C-20100-0212020*2.5241001700Inquire ↗
RHA120C-20120-0212020*2.5241201700Inquire ↗
RHA120C-20150-0212020*2.5241501700Inquire ↗
RHA120C-24100-0212024*3.0241001800Inquire ↗
RHA120C-24120-0212024*3.0241201800Inquire ↗
RHA120C-24150-0212024*3.0241501800Inquire ↗
RHA120C-30100-0212030*3.5241002100Inquire ↗
RHA120C-30120-0212030*3.5241202100Inquire ↗
RHA120C-30150-0212030*3.5241502100Inquire ↗
Additional dimensions, source references & pending confirmation
Nut-column dimensions are retained as printed. A blank or slash is marked pending confirmation. Repeated model codes remain separate source rows.
ModelBottom nut thicknessTop nut thicknessNut diameter columnSource referencePending confirmation
RHA100C-16100-02101324PDF 46, table 1, row 1Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-16120-02101324PDF 46, table 1, row 2Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-16150-02101324PDF 46, table 1, row 3Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-20100-02121630PDF 46, table 1, row 4Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-20120-02121630PDF 46, table 1, row 5Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-20150-02121630PDF 46, table 1, row 6Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-24100-02141936PDF 46, table 1, row 7Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-24120-02141936PDF 46, table 1, row 8Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-24150-02141936PDF 46, table 1, row 9Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-30100-02172445PDF 46, table 1, row 10Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-30120-02172445PDF 46, table 1, row 11Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA100C-30150-02172445PDF 46, table 1, row 12Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-16100-02101324PDF 46, table 1, row 13Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-16120-02101324PDF 46, table 1, row 14Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-16150-02101324PDF 46, table 1, row 15Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-20100-02121630PDF 46, table 1, row 16Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-20120-02121630PDF 46, table 1, row 17Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-20150-02121630PDF 46, table 1, row 18Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-24100-02141936PDF 46, table 1, row 19Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-24120-02141936PDF 46, table 1, row 20Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-24150-02141936PDF 46, table 1, row 21Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-30100-02172445PDF 46, table 1, row 22Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-30120-02172445PDF 46, table 1, row 23Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
RHA120C-30150-02172445PDF 46, table 1, row 24Packing quantity and carton dimensions: pending confirmation. Full material specification: pending confirmation.
View original catalog page

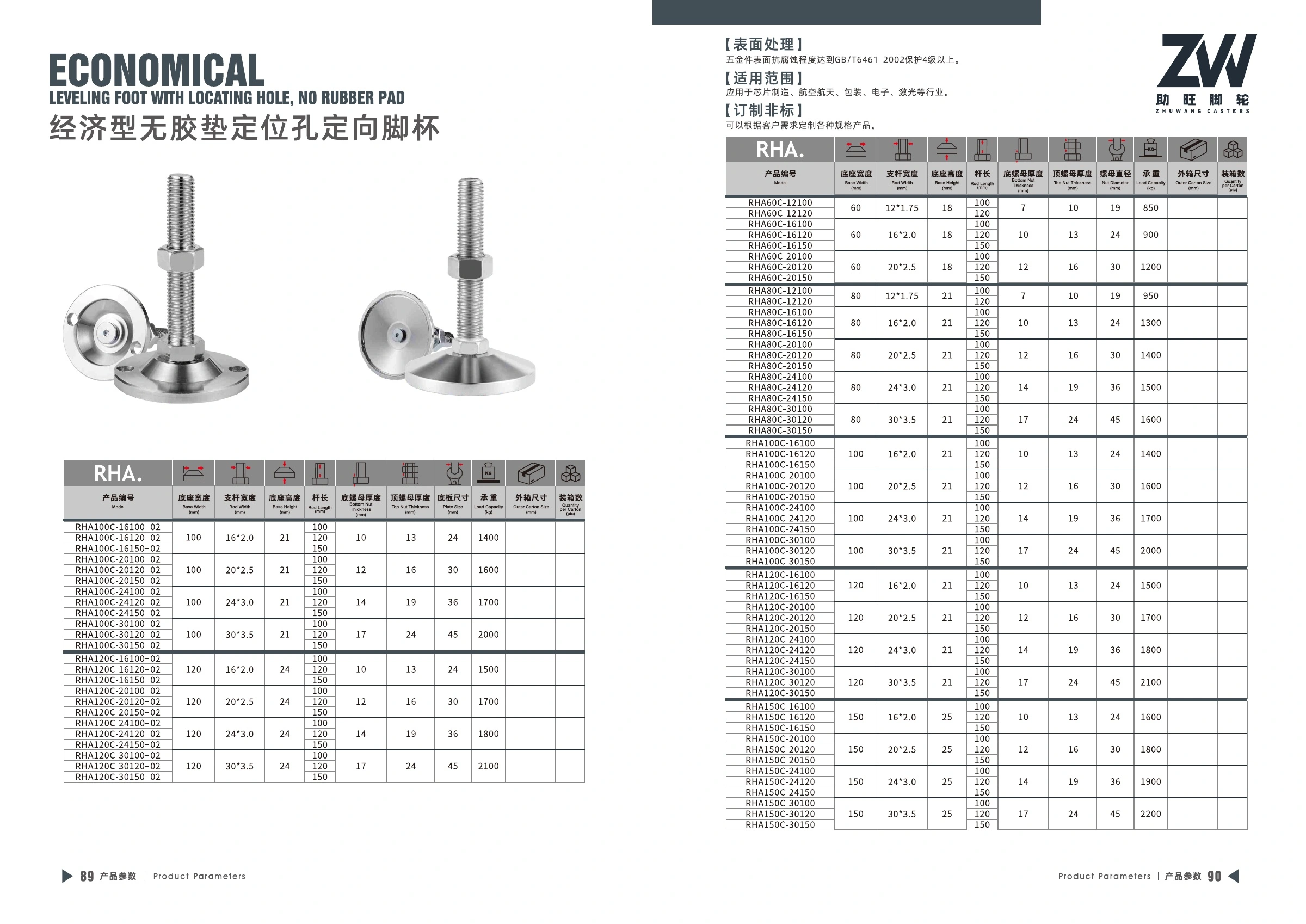

Product specifications for Economy Locating-Hole Leveling Foot, PDF page 46
PDF page 46 · Open in latest catalog PDF

Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.

← Leveling Feet & Leveling Mounts
