Heavy-Duty Cast-Iron Locating Leveling Foot

Heavy-Duty Cast-Iron Locating Leveling Foot, TIT series. Compare catalog-listed base sizes, screw dimensions and load capacities.

Original catalog product illustration. Select by the model and row dimensions.

Leveling Feet & Leveling Mounts

Heavy DutyLocating holes

Choose a support.
Confirm the installation.

Series TIT · Heavy Duty
Base width: 84 mm · Listed load: 600–850 kg
Thread: 12*1.75, 16*2.0, 20*2.5

Choose the listed model and confirm the mounting fit, operating conditions and required load before ordering.

Source series: TIT · 重载型铸铁水滴形带定位定向脚杯
PDF page 49 · Printed folios 95, 96

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695

Structure & application

Mounting information.

Teardrop cast-iron base with locating hole

Cast-iron base

Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.

Application areas listed in the catalog

Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.

Catalog models & specifications

Base, screw & listed loads.

Dimensions in mm; listed loads in kg per item. Base width follows the source column and is not assumed to be the diameter of a non-circular base. Screw sizes are reproduced as printed.
Manufacturer model	Base width	Screw / thread notation	Base height	Rod-length column	Listed load	Inquiry
TIT84Z-12100-02	84	12*1.75	28	100	600	Inquire ↗
TIT84Z-12120-02	84	12*1.75	28	120	600	Inquire ↗
TIT84Z-16100-02	84	16*2.0	28	100	800	Inquire ↗
TIT84Z-16120-02	84	16*2.0	28	120	800	Inquire ↗
TIT84Z-16150-02	84	16*2.0	28	150	800	Inquire ↗
TIT84Z-20100-02	84	20*2.5	28	100	850	Inquire ↗
TIT84Z-20120-02	84	20*2.5	28	120	850	Inquire ↗
TIT84Z-20150-02	84	20*2.5	28	150	850	Inquire ↗

Additional dimensions, source references & pending confirmation

Nut-column dimensions are retained as printed. A blank or slash is marked pending confirmation. Repeated model codes remain separate source rows.
Model	Bottom nut thickness	Top nut thickness	Nut diameter column	Source reference	Pending confirmation
TIT84Z-12100-02	7	10	19	PDF 49, table 2, row 1	Packing quantity and carton dimensions: pending confirmation.
TIT84Z-12120-02	7	10	19	PDF 49, table 2, row 2	Packing quantity and carton dimensions: pending confirmation.
TIT84Z-16100-02	10	13	24	PDF 49, table 2, row 3	Packing quantity and carton dimensions: pending confirmation.
TIT84Z-16120-02	10	13	24	PDF 49, table 2, row 4	Packing quantity and carton dimensions: pending confirmation.
TIT84Z-16150-02	10	13	24	PDF 49, table 2, row 5	Packing quantity and carton dimensions: pending confirmation.
TIT84Z-20100-02	12	16	30	PDF 49, table 2, row 6	Packing quantity and carton dimensions: pending confirmation.
TIT84Z-20120-02	12	16	30	PDF 49, table 2, row 7	Packing quantity and carton dimensions: pending confirmation.
TIT84Z-20150-02	12	16	30	PDF 49, table 2, row 8	Packing quantity and carton dimensions: pending confirmation.

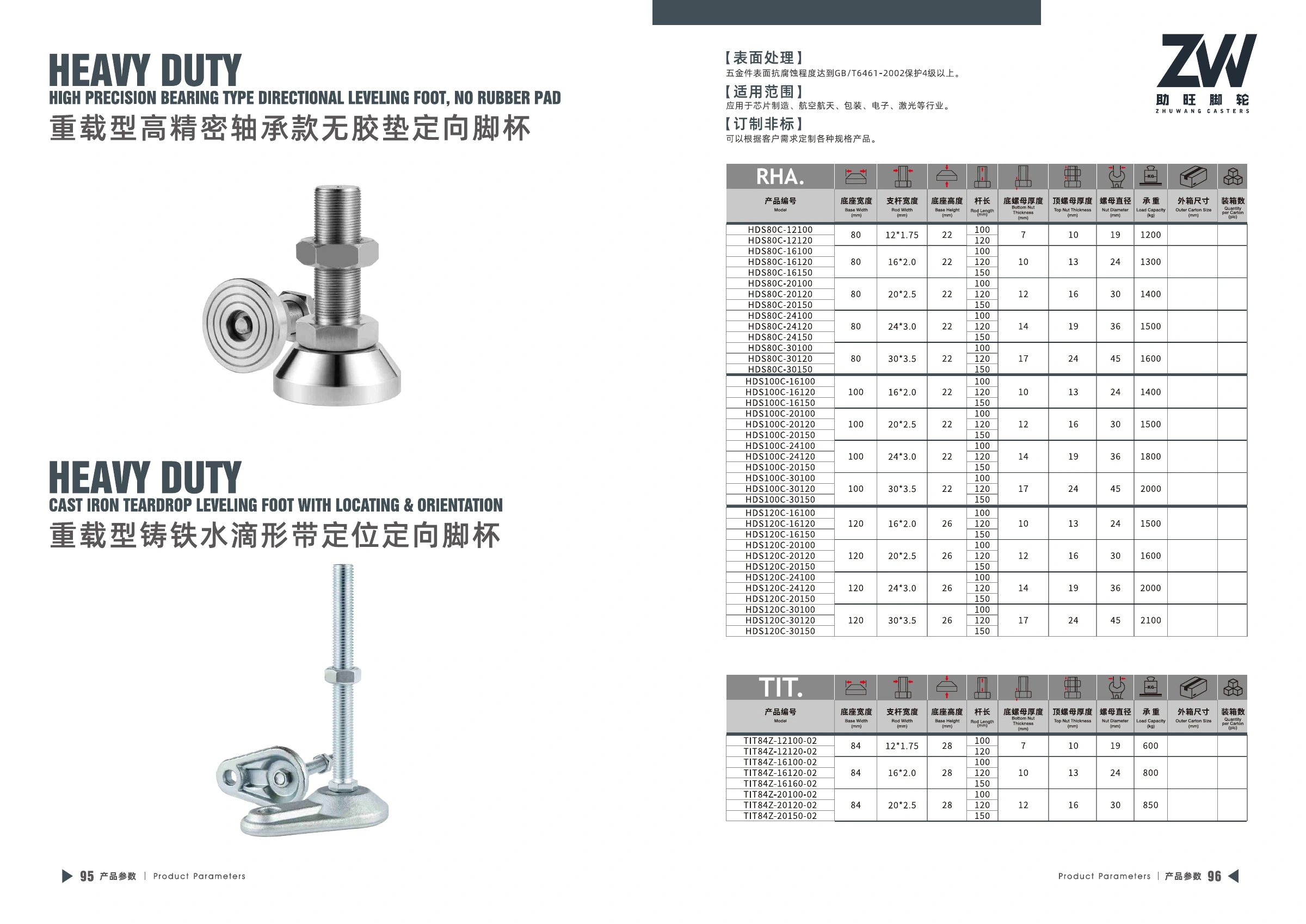

View original catalog page

Product specifications for Heavy-Duty Cast-Iron Locating Leveling Foot, PDF page 49 — PDF page 49 · Open in latest catalog PDF

Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.
