Heavy-Duty Rubber Anti-Vibration Leveling Mount

Heavy-Duty Rubber Anti-Vibration Leveling Mount, ZES series. Compare catalog-listed base sizes, screw dimensions and load capacities.

Heavy-Duty Rubber Anti-Vibration Leveling Mount

Original catalog product illustration. Select by the model and row dimensions.

Leveling Feet & Leveling Mounts

Heavy DutyAnti-Vibration

Choose a support.
Confirm the installation.

Series ZES · Heavy Duty
Base width: 60–120 mm · Listed load: 600–1650 kg
Thread: 12*1.75, 16*2.0, 20*2.5, 24*3.0, 30*3.5

The 24 and 30 mm groups on the 70 / 90 mm bases repeat 20 mm model codes. No replacement codes are inferred. Rubber hardness, metal grade and damping performance require confirmation.

Source series: ZES · 重载型高弹橡胶减震定向脚杯
PDF page 48 · Printed folios 93, 94

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695

Structure & application

Mounting information.

Fixed high-elasticity rubber leveling mount

Rubber base

Mounting: Threaded stem. Screw size and pitch are shown as printed; no missing pitch or engagement dimension is inferred.

Application areas listed in the catalog

Semiconductor manufacturing, Aerospace equipment, Packaging equipment, Electronics, Laser equipment. Suitability depends on the selected model and equipment requirements.

Catalog models & specifications

Base, screw & listed loads.

Dimensions in mm; listed loads in kg per item. Base width follows the source column and is not assumed to be the diameter of a non-circular base. Screw sizes are reproduced as printed.
Manufacturer modelBase widthScrew / thread notationBase heightRod-length columnListed loadInquiry
ZES60Z-121006012*1.7525100600Inquire ↗
ZES60Z-121206012*1.7525120600Inquire ↗
ZES60Z-161006016*2.025100700Inquire ↗
ZES60Z-161206016*2.025120700Inquire ↗
ZES60Z-161506016*2.025150700Inquire ↗
ZES60Z-201006020*2.525100800Inquire ↗
ZES60Z-201206020*2.525120800Inquire ↗
ZES60Z-201506020*2.525150800Inquire ↗
ZES70Z-121007012*1.7530100600Inquire ↗
ZES70Z-121207012*1.7530120600Inquire ↗
ZES70Z-161007016*2.030100700Inquire ↗
ZES70Z-161207016*2.030120700Inquire ↗
ZES70Z-161507016*2.030150700Inquire ↗
ZES70Z-201007020*2.530100800Inquire ↗
ZES70Z-201207020*2.530120800Inquire ↗
ZES70Z-201507020*2.530150800Inquire ↗
ZES70Z-201007024*3.030100950Inquire ↗
ZES70Z-201207024*3.030120950Inquire ↗
ZES70Z-201507024*3.030150950Inquire ↗
ZES90Z-121009012*1.7538100600Inquire ↗
ZES90Z-121209012*1.7538120600Inquire ↗
ZES90Z-161009016*2.038100700Inquire ↗
ZES90Z-161209016*2.038120700Inquire ↗
ZES90Z-161509016*2.038150700Inquire ↗
ZES90Z-201009020*2.538100800Inquire ↗
ZES90Z-201209020*2.538120800Inquire ↗
ZES90Z-201509020*2.538150800Inquire ↗
ZES90Z-201009024*3.038100950Inquire ↗
ZES90Z-201209024*3.038120950Inquire ↗
ZES90Z-201509024*3.038150950Inquire ↗
ZES90Z-201009030*3.5381001200Inquire ↗
ZES90Z-201209030*3.5381201200Inquire ↗
ZES90Z-201509030*3.5381501200Inquire ↗
ZES110Z-1610011016*2.0471001250Inquire ↗
ZES110Z-1612011016*2.0471201250Inquire ↗
ZES110Z-1615011016*2.0471501250Inquire ↗
ZES110Z-2010011020*2.5471001350Inquire ↗
ZES110Z-2012011020*2.5471201350Inquire ↗
ZES110Z-2015011020*2.5471501350Inquire ↗
ZES110Z-2410011024*3.0471001450Inquire ↗
ZES110Z-2412011024*3.0471201450Inquire ↗
ZES110Z-2415011024*3.0471501450Inquire ↗
ZES110Z-3010011030*3.5471001650Inquire ↗
ZES110Z-3012011030*3.5471201650Inquire ↗
ZES110Z-3015011030*3.5471501650Inquire ↗
ZES120Z-1610012016*2.0401001000Inquire ↗
ZES120Z-1612012016*2.0401201000Inquire ↗
ZES120Z-1615012016*2.0401501000Inquire ↗
ZES120Z-2010012020*2.5401001200Inquire ↗
ZES120Z-2012012020*2.5401201200Inquire ↗
ZES120Z-2015012020*2.5401501200Inquire ↗
ZES120Z-2410012024*3.0401001300Inquire ↗
ZES120Z-2412012024*3.0401201300Inquire ↗
ZES120Z-2415012024*3.0401501300Inquire ↗
ZES120Z-3010012030*3.5401001450Inquire ↗
ZES120Z-3012012030*3.5401201450Inquire ↗
ZES120Z-3015012030*3.5401501450Inquire ↗
Additional dimensions, source references & pending confirmation
Nut-column dimensions are retained as printed. A blank or slash is marked pending confirmation. Repeated model codes remain separate source rows.
ModelBottom nut thicknessTop nut thicknessNut diameter columnSource referencePending confirmation
ZES60Z-1210071019PDF 48, table 1, row 1Packing quantity and carton dimensions: pending confirmation.
ZES60Z-1212071019PDF 48, table 1, row 2Packing quantity and carton dimensions: pending confirmation.
ZES60Z-16100101324PDF 48, table 1, row 3Packing quantity and carton dimensions: pending confirmation.
ZES60Z-16120101324PDF 48, table 1, row 4Packing quantity and carton dimensions: pending confirmation.
ZES60Z-16150101324PDF 48, table 1, row 5Packing quantity and carton dimensions: pending confirmation.
ZES60Z-20100121630PDF 48, table 1, row 6Packing quantity and carton dimensions: pending confirmation.
ZES60Z-20120121630PDF 48, table 1, row 7Packing quantity and carton dimensions: pending confirmation.
ZES60Z-20150121630PDF 48, table 1, row 8Packing quantity and carton dimensions: pending confirmation.
ZES70Z-1210071019PDF 48, table 1, row 9Packing quantity and carton dimensions: pending confirmation.
ZES70Z-1212071019PDF 48, table 1, row 10Packing quantity and carton dimensions: pending confirmation.
ZES70Z-16100101324PDF 48, table 1, row 11Packing quantity and carton dimensions: pending confirmation.
ZES70Z-16120101324PDF 48, table 1, row 12Packing quantity and carton dimensions: pending confirmation.
ZES70Z-16150101324PDF 48, table 1, row 13Packing quantity and carton dimensions: pending confirmation.
ZES70Z-20100121630PDF 48, table 1, row 14Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES70Z-20120121630PDF 48, table 1, row 15Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES70Z-20150121630PDF 48, table 1, row 16Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES70Z-20100141936PDF 48, table 1, row 17Model code repeats the 20 mm group; confirm the model against the listed thread. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES70Z-20120141936PDF 48, table 1, row 18Model code repeats the 20 mm group; confirm the model against the listed thread. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES70Z-20150141936PDF 48, table 1, row 19Model code repeats the 20 mm group; confirm the model against the listed thread. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES90Z-1210071019PDF 48, table 1, row 20Packing quantity and carton dimensions: pending confirmation.
ZES90Z-1212071019PDF 48, table 1, row 21Packing quantity and carton dimensions: pending confirmation.
ZES90Z-16100101324PDF 48, table 1, row 22Packing quantity and carton dimensions: pending confirmation.
ZES90Z-16120101324PDF 48, table 1, row 23Packing quantity and carton dimensions: pending confirmation.
ZES90Z-16150101324PDF 48, table 1, row 24Packing quantity and carton dimensions: pending confirmation.
ZES90Z-20100121630PDF 48, table 1, row 25Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES90Z-20120121630PDF 48, table 1, row 26Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES90Z-20150121630PDF 48, table 1, row 27Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES90Z-20100141936PDF 48, table 1, row 28Model code repeats the 20 mm group; confirm the model against the listed thread. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES90Z-20120141936PDF 48, table 1, row 29Model code repeats the 20 mm group; confirm the model against the listed thread. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES90Z-20150141936PDF 48, table 1, row 30Model code repeats the 20 mm group; confirm the model against the listed thread. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES90Z-20100172445PDF 48, table 1, row 31Model code repeats the 20 mm group; confirm the model against the listed thread. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES90Z-20120172445PDF 48, table 1, row 32Model code repeats the 20 mm group; confirm the model against the listed thread. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES90Z-20150172445PDF 48, table 1, row 33Model code repeats the 20 mm group; confirm the model against the listed thread. Packing quantity and carton dimensions: pending confirmation. Repeated printed model in this series; identify by source row and dimensions. Model pending confirmation.
ZES110Z-16100101324PDF 48, table 1, row 34Packing quantity and carton dimensions: pending confirmation.
ZES110Z-16120101324PDF 48, table 1, row 35Packing quantity and carton dimensions: pending confirmation.
ZES110Z-16150101324PDF 48, table 1, row 36Packing quantity and carton dimensions: pending confirmation.
ZES110Z-20100121630PDF 48, table 1, row 37Packing quantity and carton dimensions: pending confirmation.
ZES110Z-20120121630PDF 48, table 1, row 38Packing quantity and carton dimensions: pending confirmation.
ZES110Z-20150121630PDF 48, table 1, row 39Packing quantity and carton dimensions: pending confirmation.
ZES110Z-24100141936PDF 48, table 1, row 40Packing quantity and carton dimensions: pending confirmation.
ZES110Z-24120141936PDF 48, table 1, row 41Packing quantity and carton dimensions: pending confirmation.
ZES110Z-24150141936PDF 48, table 1, row 42Packing quantity and carton dimensions: pending confirmation.
ZES110Z-30100172445PDF 48, table 1, row 43Packing quantity and carton dimensions: pending confirmation.
ZES110Z-30120172445PDF 48, table 1, row 44Packing quantity and carton dimensions: pending confirmation.
ZES110Z-30150172445PDF 48, table 1, row 45Packing quantity and carton dimensions: pending confirmation.
ZES120Z-16100101324PDF 48, table 1, row 46Packing quantity and carton dimensions: pending confirmation.
ZES120Z-16120101324PDF 48, table 1, row 47Packing quantity and carton dimensions: pending confirmation.
ZES120Z-16150101324PDF 48, table 1, row 48Packing quantity and carton dimensions: pending confirmation.
ZES120Z-20100121630PDF 48, table 1, row 49Packing quantity and carton dimensions: pending confirmation.
ZES120Z-20120121630PDF 48, table 1, row 50Packing quantity and carton dimensions: pending confirmation.
ZES120Z-20150121630PDF 48, table 1, row 51Packing quantity and carton dimensions: pending confirmation.
ZES120Z-24100141936PDF 48, table 1, row 52Packing quantity and carton dimensions: pending confirmation.
ZES120Z-24120141936PDF 48, table 1, row 53Packing quantity and carton dimensions: pending confirmation.
ZES120Z-24150141936PDF 48, table 1, row 54Packing quantity and carton dimensions: pending confirmation.
ZES120Z-30100172445PDF 48, table 1, row 55Packing quantity and carton dimensions: pending confirmation.
ZES120Z-30120172445PDF 48, table 1, row 56Packing quantity and carton dimensions: pending confirmation.
ZES120Z-30150172445PDF 48, table 1, row 57Packing quantity and carton dimensions: pending confirmation.
View original catalog page

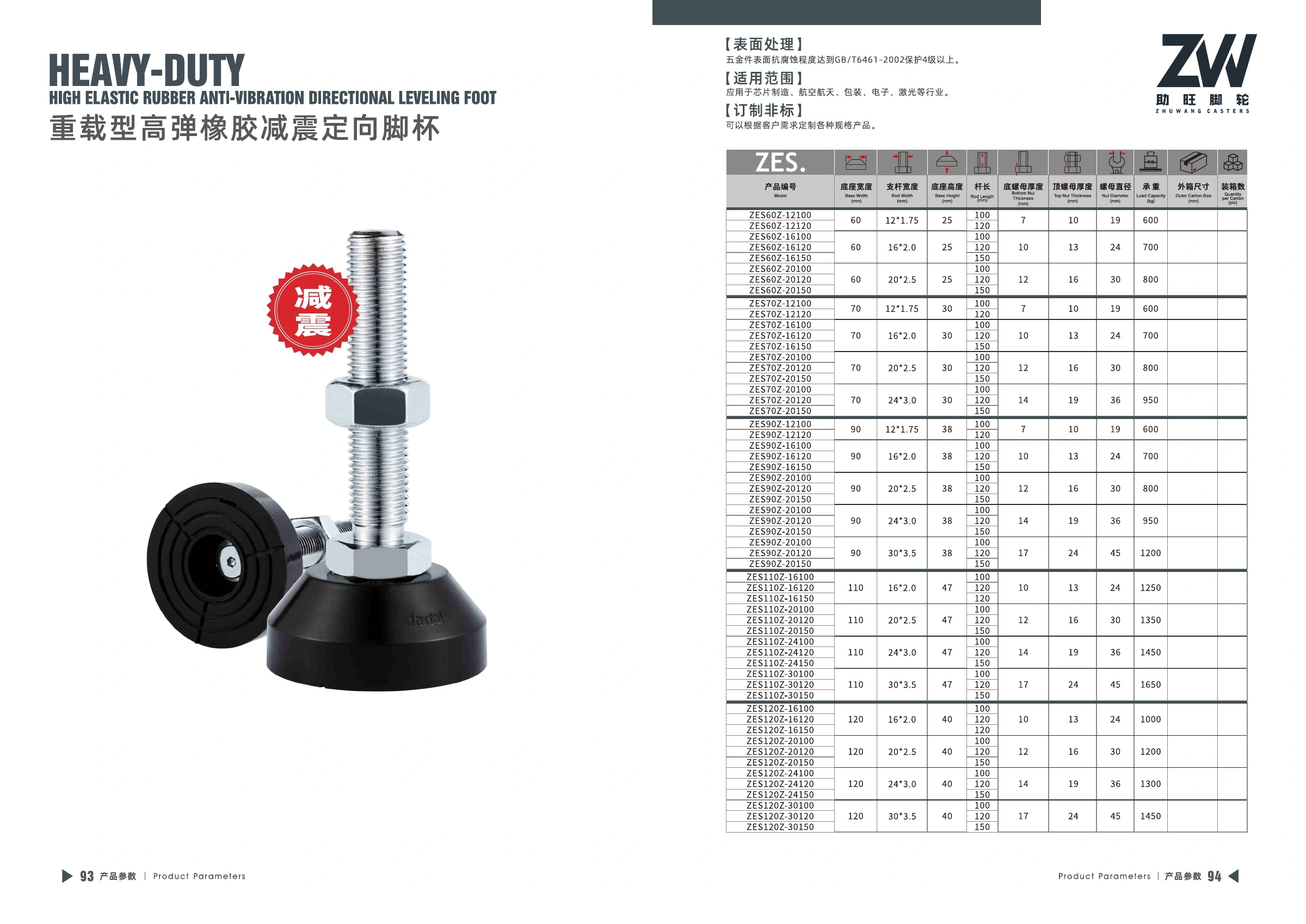

Product specifications for Heavy-Duty Rubber Anti-Vibration Leveling Mount, PDF page 48
PDF page 48 · Open in latest catalog PDF

Confirm load conditions, mounting fit, base / screw pairing and material requirements before ordering. Packing quantities, carton sizes and unspecified material details are pending confirmation. Catalog descriptions do not constitute a certification.
