Light-Duty Golden Diamond PVC Casters
Light-Duty Golden Diamond PVC Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

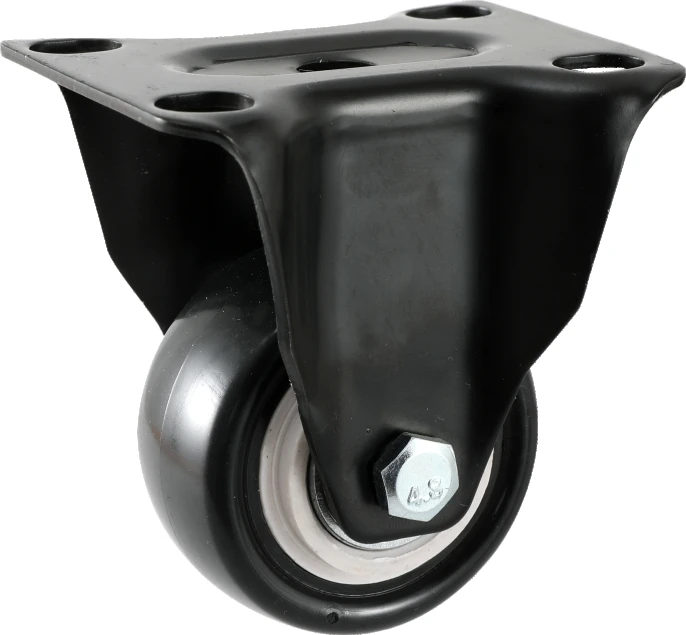

Product illustration from the final catalog. Mounting and brake options vary by model.
Light-Duty Casters
PVCChoose a model.
Confirm your application.
Mounting names, pictures and model codes differ in places. Configuration details flagged below require confirmation.
Catalog series: 轻型金钻系列
Final PDF page 15 · Printed folios 37, 38
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| B02A-04-40PVC-01 | 40 | 20 | 61 | PVC | Top plate | Rigid | None | 30 | Inquire ↗ |
| B02A-04-50PVC-01 | 50 | 25 | 72 | PVC | Top plate | Rigid | None | 40 | Inquire ↗ |
| B02A-04D-40PVC-01 | 40 | 20 | 61 | PVC | Top plate | Swivel | Brake | 30 | Inquire ↗ |
| B02A-04D-50PVC-01 | 50 | 25 | 72 | PVC | Top plate | Swivel | Brake | 40 | Inquire ↗ |
| B02A-01-40PVC-01 | 40 | 20 | 61 | PVC | Threaded stem | Swivel | Brake | 30 | Inquire ↗ |
| B02A-01-50PVC-01 | 50 | 25 | 72 | PVC | Threaded stem | Swivel | Brake | 40 | Inquire ↗ |
| B02A-01D-40PVC-01 | 46 | 20 | 61 | PVC | Grip ring stem | Swivel | None | 30 | Inquire ↗ |
| B02A-01D-50PVC-01 | 50 | 25 | 72 | PVC | Grip ring stem | Swivel | None | 40 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| B02A-04-40PVC-01 Top plate · Rigid | 60*43 | 45*30 | 6.2 | Pending confirmation | Pending confirmation |
| B02A-04-50PVC-01 Top plate · Rigid | 70*50 | 53*35 | 6.2 | Pending confirmation | Pending confirmation |
| B02A-04D-40PVC-01 Top plate · Swivel with brake | 60*43 | 45*30 | 6.2 | Pending confirmation | Pending confirmation |
| B02A-04D-50PVC-01 Top plate · Swivel with brake | 70*50 | 53*35 | 6.2 | Pending confirmation | Pending confirmation |
| B02A-01-40PVC-01 Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| B02A-01-50PVC-01 Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| B02A-01D-40PVC-01 Grip ring stem · Swivel | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| B02A-01D-50PVC-01 Grip ring stem · Swivel | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| B02A-04-40PVC-01 Top plate · Rigid | 250 | 550*280*250 | PDF 15, table 1, row 1 | Mounting/configuration labels and images differ; confirm mounting and brake before ordering. |
| B02A-04-50PVC-01 Top plate · Rigid | 150 | 550*280*250 | PDF 15, table 1, row 2 | Mounting/configuration labels and images differ; confirm mounting and brake before ordering. |
| B02A-04D-40PVC-01 Top plate · Swivel with brake | 200 | 540*280*235 | PDF 15, table 2, row 1 | Mounting/configuration labels and images differ; confirm mounting and brake before ordering. |
| B02A-04D-50PVC-01 Top plate · Swivel with brake | 120 | 540*280*235 | PDF 15, table 2, row 2 | Mounting/configuration labels and images differ; confirm mounting and brake before ordering. |
| B02A-01-40PVC-01 Threaded stem · Swivel with brake | 200 | 540*280*235 | PDF 15, table 3, row 1 | Mounting/configuration labels and images differ; confirm mounting and brake before ordering. |
| B02A-01-50PVC-01 Threaded stem · Swivel with brake | 120 | 540*280*235 | PDF 15, table 3, row 2 | Mounting/configuration labels and images differ; confirm mounting and brake before ordering. |
| B02A-01D-40PVC-01 Grip ring stem · Swivel | 250 | 540*280*235 | PDF 15, table 4, row 1 | Mounting/configuration labels and images differ; confirm mounting and brake before ordering. |
| B02A-01D-50PVC-01 Grip ring stem · Swivel | 150 | 540*280*235 | PDF 15, table 4, row 2 | Mounting/configuration labels and images differ; confirm mounting and brake before ordering. |

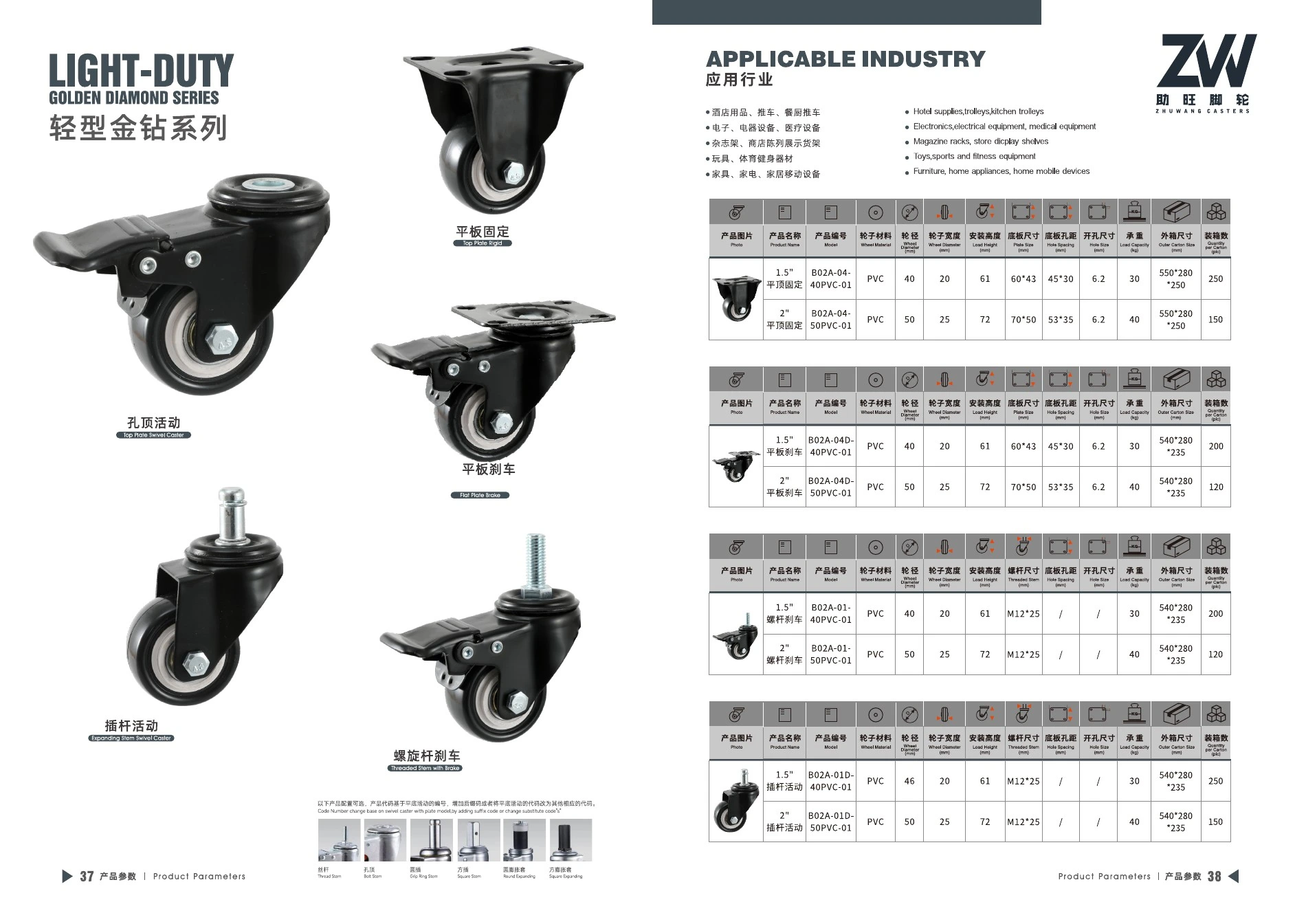

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
