Home / Products / Light-Duty PP Casters

Products / Light-Duty PP Casters

Light-Duty PP Casters

Light-Duty PP Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

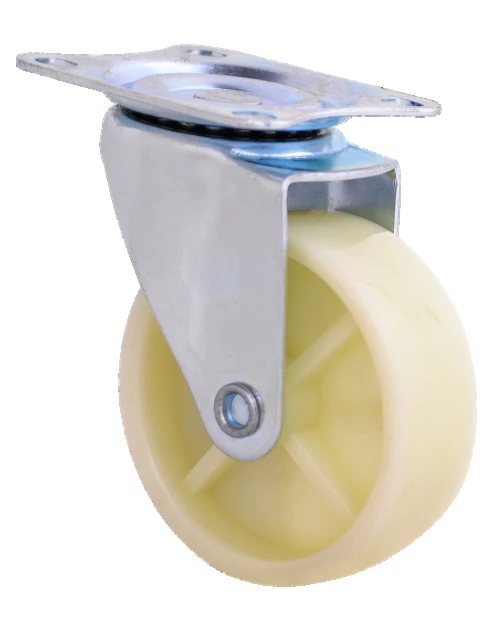

Light-Duty PP Casters

Product illustration from the final catalog. Mounting and brake options vary by model.

Light-Duty Casters

PP

Choose a model.
Confirm your application.

Choose a catalog model and confirm mounting fit, operating conditions and current availability with our team.

Catalog series: 轻型PP系列
Final PDF page 6 · Printed folios 61, 62

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China

Catalog models & specifications

Dimensions & listed loads.

Dimensions in mm; listed loads in kg per caster. Pending confirmation means missing, conflicting or not reliably established.
Manufacturer modelWheel ØWidthOverall heightMaterialMountingRotationBrakeListed loadInquiry
Z01-01D-40PP-02401753PPTop plateSwivelBrake25Inquire ↗
Z01-01D-50PP-02502167PPTop plateSwivelBrake35Inquire ↗
Z01-01D-63PP-02632582PPTop plateSwivelBrake50Inquire ↗
Z01-01D-75PP-02752693PPTop plateSwivelBrake65Inquire ↗
Z01-04-40PP-02401753PPTop plateRigidNone25Inquire ↗
Z01-04-50PP-02502167PPTop plateRigidNone35Inquire ↗
Z01-04-63PP-02632582PPTop plateRigidNone50Inquire ↗
Z01-04-75PP-02752693PPTop plateRigidNone65Inquire ↗
Z01-02D-40PP-02401753PPThreaded stemSwivelBrake25Inquire ↗
Z01-02D-50PP-02502167PPThreaded stemSwivelBrake35Inquire ↗
Z01-02D-63PP-02632582PPThreaded stemSwivelBrake50Inquire ↗
Z01-02D-75PP-02752693PPThreaded stemSwivelBrake65Inquire ↗
Z01-02-40PP-02401753PPThreaded stemSwivelNone25Inquire ↗
Z01-02-50PP-02502167PPThreaded stemSwivelNone35Inquire ↗
Z01-02-63PP-02632582PPThreaded stemSwivelNone50Inquire ↗
Z01-02-75PP-02752693PPThreaded stemSwivelNone65Inquire ↗
Mounting dimensions
Source dimension notation retained, mm. An asterisk separates dimensions; stem notation is reproduced without inferring a thread.
Model / configurationPlate sizeHole spacingMounting holeStem notationStem hole distance
Z01-01D-40PP-02
Top plate · Swivel with brake		46*2536*155.2Pending confirmationPending confirmation
Z01-01D-50PP-02
Top plate · Swivel with brake		58.5*47.546*356.2Pending confirmationPending confirmation
Z01-01D-63PP-02
Top plate · Swivel with brake		70*4654.5*278.2Pending confirmationPending confirmation
Z01-01D-75PP-02
Top plate · Swivel with brake		70*4654.5*278.2Pending confirmationPending confirmation
Z01-04-40PP-02
Top plate · Rigid		46*2536*155.2Pending confirmationPending confirmation
Z01-04-50PP-02
Top plate · Rigid		58.5*47.546*356.2Pending confirmationPending confirmation
Z01-04-63PP-02
Top plate · Rigid		70*4654.5*278.2Pending confirmationPending confirmation
Z01-04-75PP-02
Top plate · Rigid		70*4654.5*278.2Pending confirmationPending confirmation
Z01-02D-40PP-02
Threaded stem · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z01-02D-50PP-02
Threaded stem · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z01-02D-63PP-02
Threaded stem · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z01-02D-75PP-02
Threaded stem · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z01-02-40PP-02
Threaded stem · Swivel		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z01-02-50PP-02
Threaded stem · Swivel		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z01-02-63PP-02
Threaded stem · Swivel		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z01-02-75PP-02
Threaded stem · Swivel		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Packing, source references & confirmation notes
Model / configurationPcs / cartonCarton dimensions, as printed (mm)SourceNotes
Z01-01D-40PP-02
Top plate · Swivel with brake		500500*350*220PDF 6, table 1, row 1Confirm the selected model and order requirements.
Z01-01D-50PP-02
Top plate · Swivel with brake		200500*350*220PDF 6, table 1, row 2Confirm the selected model and order requirements.
Z01-01D-63PP-02
Top plate · Swivel with brake		150500*350*220PDF 6, table 1, row 3Confirm the selected model and order requirements.
Z01-01D-75PP-02
Top plate · Swivel with brake		100500*350*220PDF 6, table 1, row 4Confirm the selected model and order requirements.
Z01-04-40PP-02
Top plate · Rigid		500500*350*220PDF 6, table 2, row 1Confirm the selected model and order requirements.
Z01-04-50PP-02
Top plate · Rigid		200500*350*220PDF 6, table 2, row 2Confirm the selected model and order requirements.
Z01-04-63PP-02
Top plate · Rigid		150500*350*220PDF 6, table 2, row 3Confirm the selected model and order requirements.
Z01-04-75PP-02
Top plate · Rigid		100500*350*220PDF 6, table 2, row 4Confirm the selected model and order requirements.
Z01-02D-40PP-02
Threaded stem · Swivel with brake		500500*350*220PDF 6, table 3, row 1Confirm the selected model and order requirements.
Z01-02D-50PP-02
Threaded stem · Swivel with brake		200500*350*220PDF 6, table 3, row 2Confirm the selected model and order requirements.
Z01-02D-63PP-02
Threaded stem · Swivel with brake		150500*350*220PDF 6, table 3, row 3Confirm the selected model and order requirements.
Z01-02D-75PP-02
Threaded stem · Swivel with brake		100500*350*220PDF 6, table 3, row 4Confirm the selected model and order requirements.
Z01-02-40PP-02
Threaded stem · Swivel		500500*350*220PDF 6, table 4, row 1Confirm the selected model and order requirements.
Z01-02-50PP-02
Threaded stem · Swivel		200500*350*220PDF 6, table 4, row 2Confirm the selected model and order requirements.
Z01-02-63PP-02
Threaded stem · Swivel		150500*350*220PDF 6, table 4, row 3Confirm the selected model and order requirements.
Z01-02-75PP-02
Threaded stem · Swivel		100500*350*220PDF 6, table 4, row 4Confirm the selected model and order requirements.
View original catalog pages

Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.

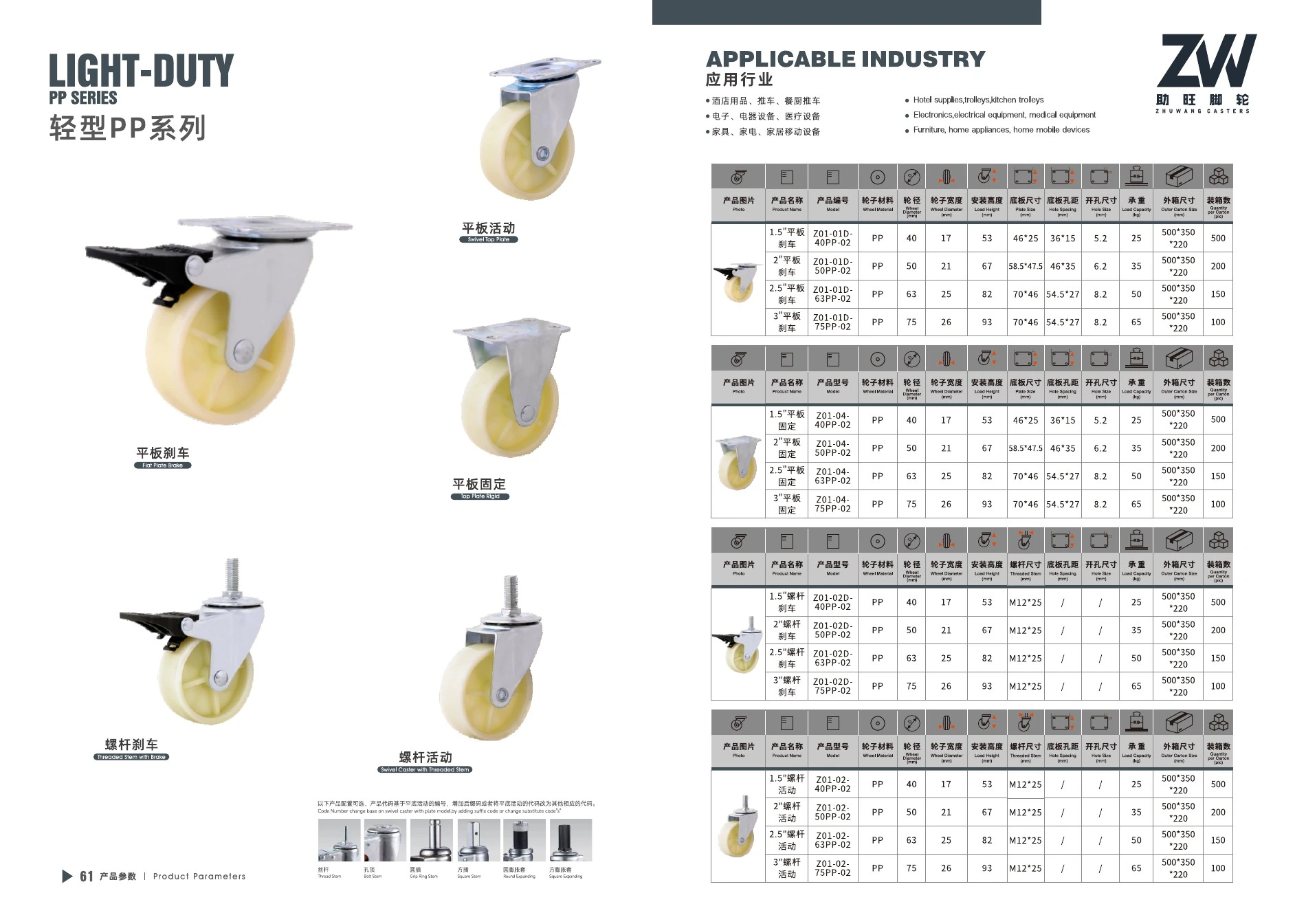

Final product catalog PDF page 6: Light-Duty PP Casters
PDF page 6 · Open in catalog PDF

Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
