Light-Duty Shaftless TPR Casters

Light-Duty Shaftless TPR Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

Light-Duty Shaftless TPR Casters

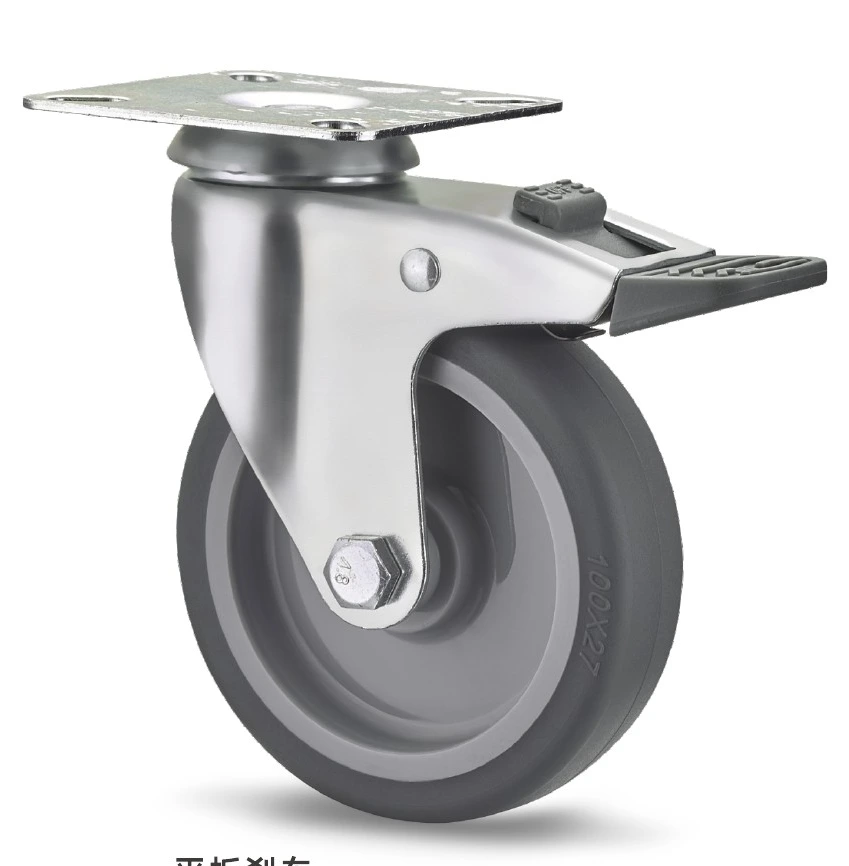

Product illustration from the final catalog. Mounting and brake options vary by model.

Light-Duty Casters

TPR

Choose a model.
Confirm your application.

Bolt-hole rows contain M12*25 in the source stem column. Confirm mounting dimensions before ordering.

Catalog series: 轻型无轴TPR轮系列
Final PDF page 18 · Printed folios 27, 28

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China

Catalog models & specifications

Dimensions & listed loads.

Dimensions in mm; listed loads in kg per caster. Pending confirmation means missing, conflicting or not reliably established.
Manufacturer modelWheel ØWidthOverall heightMaterialMountingRotationBrakeListed loadInquiry
Z02HJ-04-50TPR-01501769TPRTop plateRigidNone50Inquire ↗
Z02HJ-04-75TPR-017521100TPRTop plateRigidNone50Inquire ↗
Z02HJ-04-100TPR-0110027130TPRTop plateRigidNone50Inquire ↗
Z02HJ-04-125TPR-0112527155TPRTop plateRigidNone50Inquire ↗
Z02HJ-01D-50TPR-01501769TPRTop plateSwivelBrake50Inquire ↗
Z02HJ-01D-75TPR-017521100TPRTop plateSwivelBrake50Inquire ↗
Z02HJ-01D-100TPR-0110027130TPRTop plateSwivelBrake50Inquire ↗
Z02HJ-01D-125TPR-0112527155TPRTop plateSwivelBrake50Inquire ↗
Z02HJ-05-50TPR-01501769TPRBolt holeSwivelNone50Inquire ↗
Z02HJ-05-75TPR-017521100TPRBolt holeSwivelNone50Inquire ↗
Z02HJ-05-100TPR-0110027130TPRBolt holeSwivelNone50Inquire ↗
Z02HJ-05-125TPR-0112527155TPRBolt holeSwivelNone50Inquire ↗
Z02HJ-05D-50TPR-01501769TPRBolt holeSwivelBrake50Inquire ↗
Z02HJ-05D-75TPR-017521100TPRBolt holeSwivelBrake50Inquire ↗
Z02HJ-05D-100TPR-0110027130TPRBolt holeSwivelBrake50Inquire ↗
Z02HJ-05D-125TPR-0112527155TPRBolt holeSwivelBrake50Inquire ↗
Mounting dimensions
Source dimension notation retained, mm. An asterisk separates dimensions; stem notation is reproduced without inferring a thread.
Model / configurationPlate sizeHole spacingMounting holeStem notationStem hole distance
Z02HJ-04-50TPR-01
Top plate · Rigid		50*5035*356.3*12Pending confirmationPending confirmation
Z02HJ-04-75TPR-01
Top plate · Rigid		65*6546*466.3*13Pending confirmationPending confirmation
Z02HJ-04-100TPR-01
Top plate · Rigid		76*7655*558.5*15Pending confirmationPending confirmation
Z02HJ-04-125TPR-01
Top plate · Rigid		76*7655*558.5*15Pending confirmationPending confirmation
Z02HJ-01D-50TPR-01
Top plate · Swivel with brake		50*5035*356.3*12Pending confirmationPending confirmation
Z02HJ-01D-75TPR-01
Top plate · Swivel with brake		65*6546*466.3*13Pending confirmationPending confirmation
Z02HJ-01D-100TPR-01
Top plate · Swivel with brake		76*7655*558.5*15Pending confirmationPending confirmation
Z02HJ-01D-125TPR-01
Top plate · Swivel with brake		76*7655*558.5*15Pending confirmationPending confirmation
Z02HJ-05-50TPR-01
Bolt hole · Swivel		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z02HJ-05-75TPR-01
Bolt hole · Swivel		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z02HJ-05-100TPR-01
Bolt hole · Swivel		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z02HJ-05-125TPR-01
Bolt hole · Swivel		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z02HJ-05D-50TPR-01
Bolt hole · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z02HJ-05D-75TPR-01
Bolt hole · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z02HJ-05D-100TPR-01
Bolt hole · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z02HJ-05D-125TPR-01
Bolt hole · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Packing, source references & confirmation notes
Model / configurationPcs / cartonCarton dimensions, as printed (mm)SourceNotes
Z02HJ-04-50TPR-01
Top plate · Rigid		200540*280*230PDF 18, table 1, row 1Confirm the selected model and order requirements.
Z02HJ-04-75TPR-01
Top plate · Rigid		100520*280*280PDF 18, table 1, row 2Confirm the selected model and order requirements.
Z02HJ-04-100TPR-01
Top plate · Rigid		50520*280*280PDF 18, table 1, row 3Confirm the selected model and order requirements.
Z02HJ-04-125TPR-01
Top plate · Rigid		40545*310*280PDF 18, table 1, row 4Confirm the selected model and order requirements.
Z02HJ-01D-50TPR-01
Top plate · Swivel with brake		200540*280*260PDF 18, table 2, row 1Confirm the selected model and order requirements.
Z02HJ-01D-75TPR-01
Top plate · Swivel with brake		100545*310*280PDF 18, table 2, row 2Confirm the selected model and order requirements.
Z02HJ-01D-100TPR-01
Top plate · Swivel with brake		50545*310*280PDF 18, table 2, row 3Confirm the selected model and order requirements.
Z02HJ-01D-125TPR-01
Top plate · Swivel with brake		40545*310*280PDF 18, table 2, row 4Confirm the selected model and order requirements.
Z02HJ-05-50TPR-01
Bolt hole · Swivel		200400*260*220PDF 18, table 3, row 1Confirm the selected model and order requirements.
Z02HJ-05-75TPR-01
Bolt hole · Swivel		100460*280*280PDF 18, table 3, row 2Confirm the selected model and order requirements.
Z02HJ-05-100TPR-01
Bolt hole · Swivel		50520*280*280PDF 18, table 3, row 3Confirm the selected model and order requirements.
Z02HJ-05-125TPR-01
Bolt hole · Swivel		40460*280*280PDF 18, table 3, row 4Confirm the selected model and order requirements.
Z02HJ-05D-50TPR-01
Bolt hole · Swivel with brake		200460*280*260PDF 18, table 4, row 1Confirm the selected model and order requirements.
Z02HJ-05D-75TPR-01
Bolt hole · Swivel with brake		100460*280*280PDF 18, table 4, row 2Confirm the selected model and order requirements.
Z02HJ-05D-100TPR-01
Bolt hole · Swivel with brake		50460*280*280PDF 18, table 4, row 3Confirm the selected model and order requirements.
Z02HJ-05D-125TPR-01
Bolt hole · Swivel with brake		40460*280*280PDF 18, table 4, row 4Confirm the selected model and order requirements.
View original catalog pages

Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.

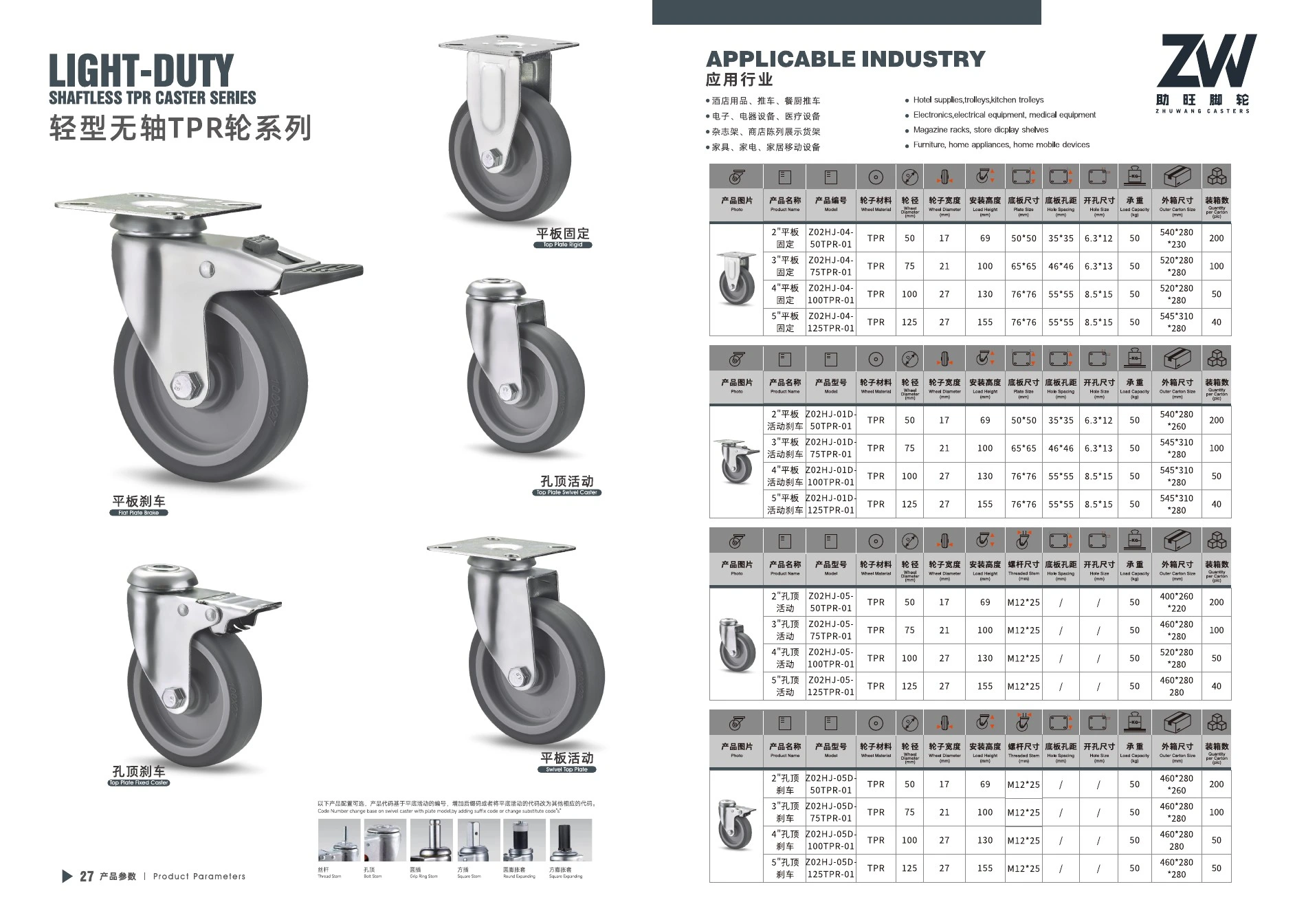

Final product catalog PDF page 18: Light-Duty Shaftless TPR Casters
PDF page 18 · Open in catalog PDF

Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
