Light-Duty 50 mm Twin-Wheel TPR Casters
Light-Duty 50 mm Twin-Wheel TPR Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

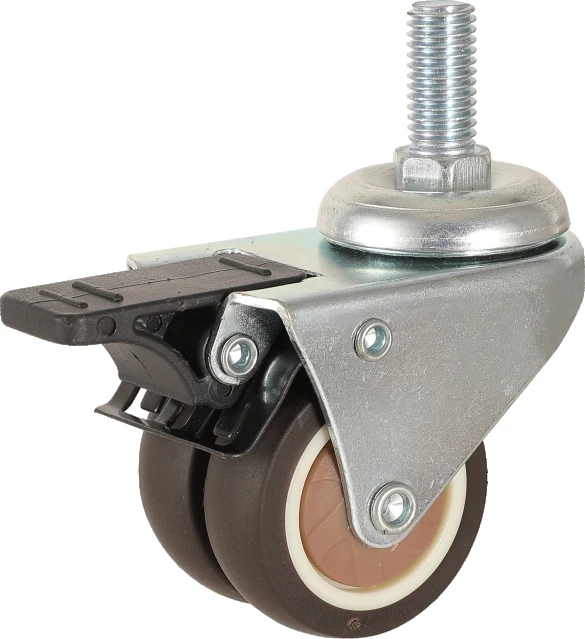

Product illustration from the final catalog. Mounting and brake options vary by model.
Light-Duty Casters
Twin-WheelTPRChoose a model.
Confirm your application.
The bolt-hole configuration retains the printed model and stem notation; confirm the mounting fit.
Catalog series: 轻型双轮系列
Final PDF page 13 · Printed folios 13, 14
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z01S-01-50TPR-05 | 50 | 17 | 73 | TPR | Top plate | Swivel | None | 60 | Inquire ↗ |
| Z01S-01D-50TPR-05 | 50 | 17 | 70 | TPR | Bolt hole | Swivel | Brake | 60 | Inquire ↗ |
| Z01S-02-50TPR-05 | 50 | 17 | 73 | TPR | Threaded stem | Swivel | Brake | 60 | Inquire ↗ |
| Z01S-03-50TPR-05 | 50 | 17 | 70 | TPR | Grip ring stem | Swivel | Brake | 60 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z01S-01-50TPR-05 Top plate · Swivel | 61*61 | 49*49 | 6.3*13 | Pending confirmation | Pending confirmation |
| Z01S-01D-50TPR-05 Bolt hole · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M10 | Pending confirmation |
| Z01S-02-50TPR-05 Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M10*25 | Pending confirmation |
| Z01S-03-50TPR-05 Grip ring stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M11*21 | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z01S-01-50TPR-05 Top plate · Swivel | 100 | 500*350*220 | PDF 13, table 1, row 1 | Confirm the selected model and order requirements. |
| Z01S-01D-50TPR-05 Bolt hole · Swivel with brake | 100 | 500*350*220 | PDF 13, table 2, row 1 | Confirm the selected model and order requirements. |
| Z01S-02-50TPR-05 Threaded stem · Swivel with brake | 100 | 500*350*220 | PDF 13, table 3, row 1 | Confirm the selected model and order requirements. |
| Z01S-03-50TPR-05 Grip ring stem · Swivel with brake | 100 | 500*350*220 | PDF 13, table 4, row 1 | Confirm the selected model and order requirements. |

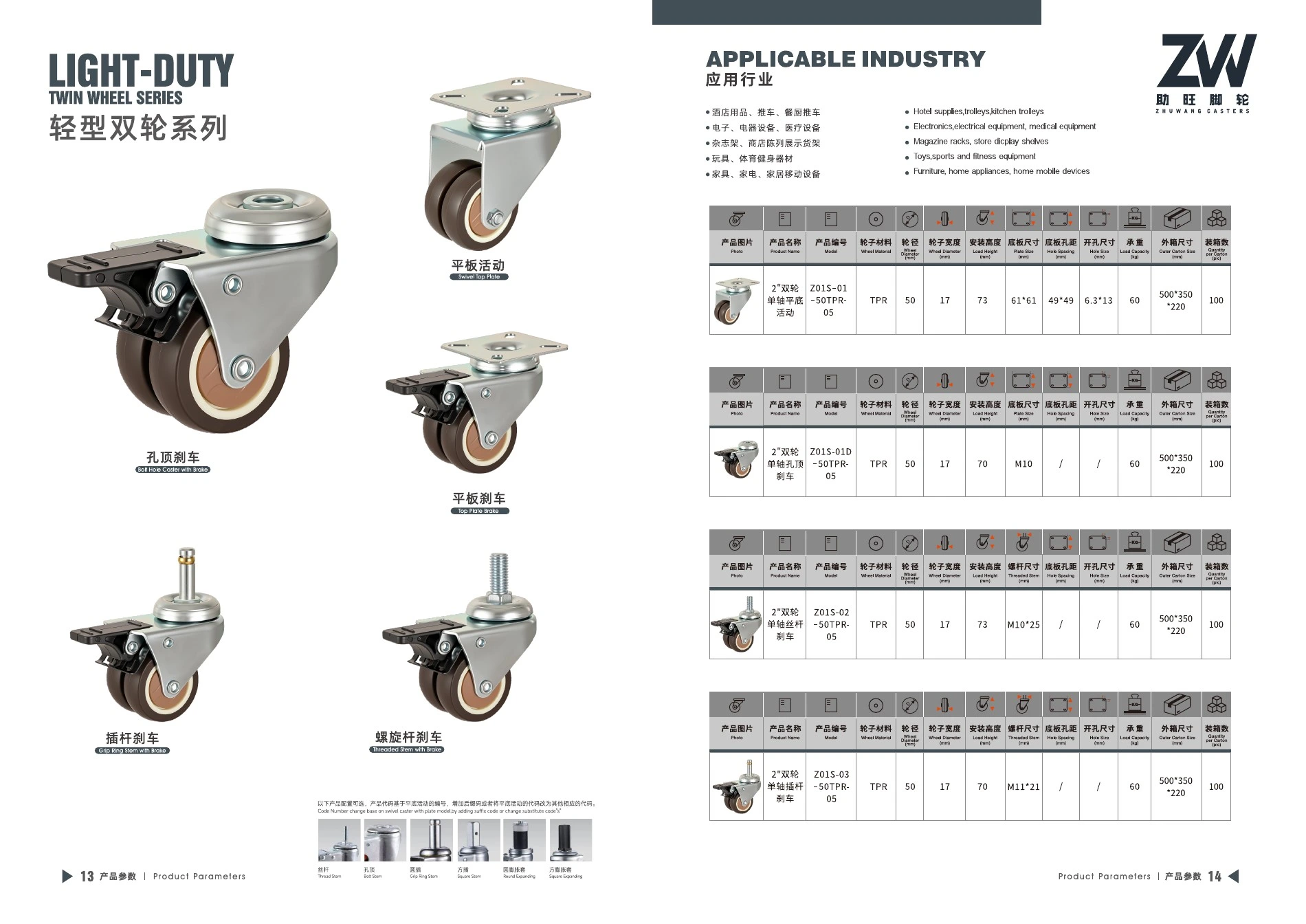

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
