Medium-Duty Grey Rubber Series
Medium-Duty Grey Rubber Series from the final product catalog. Compare listed models, dimensions and mounting configurations.

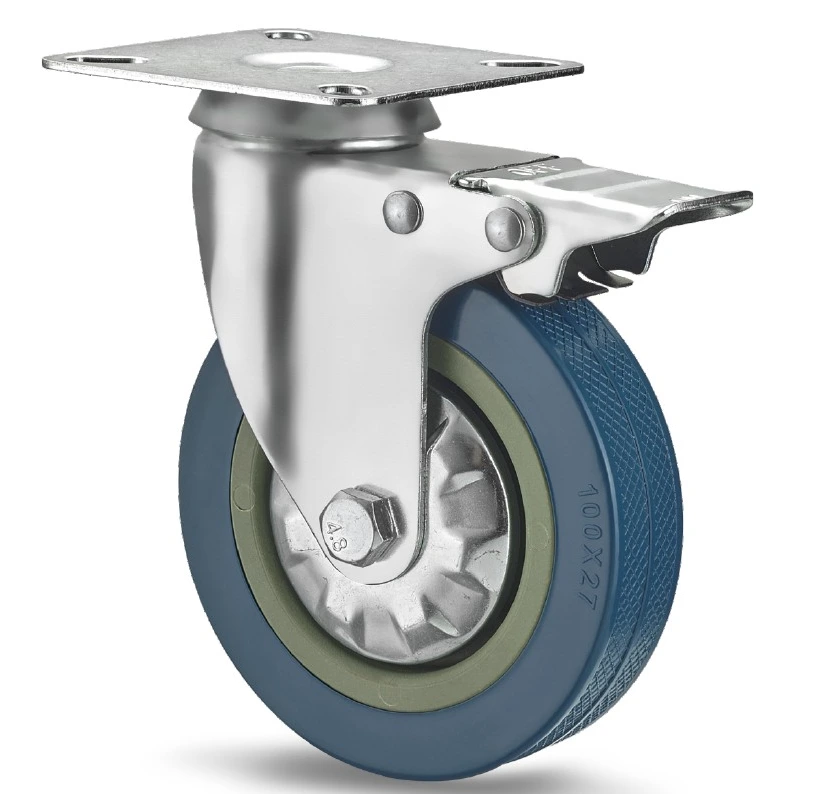

Product illustration from the final catalog. Mounting and brake options vary by model.
Medium-Duty Casters
Choose a model.
Confirm your application.
Series title identifies grey rubber, while the material cells and models say PVC. Material selection is pending confirmation.
Catalog series: 灰胶系列
Final PDF page 16 · Printed folios 17, 18
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z02HJ-01-50PVC | 50 | 17 | 69 | Pending confirmation (table: PVC) | Top plate | Swivel | None | 90 | Inquire ↗ |
| Z02HJ-01-65PVC | 65 | 21 | 90 | Pending confirmation (table: PVC) | Top plate | Swivel | None | 100 | Inquire ↗ |
| Z02HJ-01-75PVC | 75 | 21 | 100 | Pending confirmation (table: PVC) | Top plate | Swivel | None | 110 | Inquire ↗ |
| Z02HJ-01-100PVC | 100 | 27 | 130 | Pending confirmation (table: PVC) | Top plate | Swivel | None | 125 | Inquire ↗ |
| Z02HJ-01-125PVC | 125 | 27 | 155 | Pending confirmation (table: PVC) | Top plate | Swivel | None | 135 | Inquire ↗ |
| Z02HJ-01D-50PVC | 50 | 17 | 69 | Pending confirmation (table: PVC) | Top plate | Swivel | Brake | 90 | Inquire ↗ |
| Z02HJ-01D-65PVC | 65 | 21 | 90 | Pending confirmation (table: PVC) | Top plate | Swivel | Brake | 100 | Inquire ↗ |
| Z02HJ-01D-75PVC | 75 | 21 | 100 | Pending confirmation (table: PVC) | Top plate | Swivel | Brake | 110 | Inquire ↗ |
| Z02HJ-01D-100PVC | 100 | 27 | 130 | Pending confirmation (table: PVC) | Top plate | Swivel | Brake | 125 | Inquire ↗ |
| Z02HJ-01D-125PVC | 125 | 27 | 155 | Pending confirmation (table: PVC) | Top plate | Swivel | Brake | 135 | Inquire ↗ |
| Z02HJ-02-50PVC | 50 | 17 | 69 | Pending confirmation (table: PVC) | Threaded stem | Swivel | None | 90 | Inquire ↗ |
| Z02HJ-02-65PVC | 65 | 21 | 90 | Pending confirmation (table: PVC) | Threaded stem | Swivel | None | 100 | Inquire ↗ |
| Z02HJ-02-75PVC | 75 | 21 | 100 | Pending confirmation (table: PVC) | Threaded stem | Swivel | None | 110 | Inquire ↗ |
| Z02HJ-02-100PVC | 100 | 27 | 130 | Pending confirmation (table: PVC) | Threaded stem | Swivel | None | 125 | Inquire ↗ |
| Z02HJ-02-125PVC | 125 | 27 | 155 | Pending confirmation (table: PVC) | Threaded stem | Swivel | None | 135 | Inquire ↗ |
| Z02HJ-02D-50PVC | 50 | 17 | 69 | Pending confirmation (table: PVC) | Threaded stem | Swivel | Brake | 90 | Inquire ↗ |
| Z02HJ-02D-65PVC | 65 | 21 | 90 | Pending confirmation (table: PVC) | Threaded stem | Swivel | Brake | 100 | Inquire ↗ |
| Z02HJ-02D-75PVC | 75 | 21 | 100 | Pending confirmation (table: PVC) | Threaded stem | Swivel | Brake | 110 | Inquire ↗ |
| Z02HJ-02D-100PVC | 100 | 27 | 130 | Pending confirmation (table: PVC) | Threaded stem | Swivel | Brake | 125 | Inquire ↗ |
| Z02HJ-02D-125PVC | 125 | 27 | 155 | Pending confirmation (table: PVC) | Threaded stem | Swivel | Brake | 135 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z02HJ-01-50PVC Top plate · Swivel | 50*50 | 35*35 | 6.2*11.2 | Pending confirmation | Pending confirmation |
| Z02HJ-01-65PVC Top plate · Swivel | 65*65 | 46*46 | 6.2*11.2 | Pending confirmation | Pending confirmation |
| Z02HJ-01-75PVC Top plate · Swivel | 65*65 | 46*46 | 6.2*11.2 | Pending confirmation | Pending confirmation |
| Z02HJ-01-100PVC Top plate · Swivel | 76*76 | 55*55 | 6.2*11.2 | Pending confirmation | Pending confirmation |
| Z02HJ-01-125PVC Top plate · Swivel | 76*76 | 55*55 | 6.2*11.2 | Pending confirmation | Pending confirmation |
| Z02HJ-01D-50PVC Top plate · Swivel with brake | 50*50 | 35*35 | 6.2*11.2 | Pending confirmation | Pending confirmation |
| Z02HJ-01D-65PVC Top plate · Swivel with brake | 65*65 | 46*46 | 6.2*11.2 | Pending confirmation | Pending confirmation |
| Z02HJ-01D-75PVC Top plate · Swivel with brake | 65*65 | 46*46 | 6.2*11.2 | Pending confirmation | Pending confirmation |
| Z02HJ-01D-100PVC Top plate · Swivel with brake | 76*76 | 55*55 | 6.2*11.2 | Pending confirmation | Pending confirmation |
| Z02HJ-01D-125PVC Top plate · Swivel with brake | 76*76 | 55*55 | 6.2*11.2 | Pending confirmation | Pending confirmation |
| Z02HJ-02-50PVC Threaded stem · Swivel | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z02HJ-02-65PVC Threaded stem · Swivel | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z02HJ-02-75PVC Threaded stem · Swivel | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z02HJ-02-100PVC Threaded stem · Swivel | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z02HJ-02-125PVC Threaded stem · Swivel | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z02HJ-02D-50PVC Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z02HJ-02D-65PVC Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z02HJ-02D-75PVC Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z02HJ-02D-100PVC Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z02HJ-02D-125PVC Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z02HJ-01-50PVC Top plate · Swivel | 200 | 540*280*230 | PDF 16, table 1, row 1 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-01-65PVC Top plate · Swivel | 150 | 540*280*230 | PDF 16, table 1, row 2 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-01-75PVC Top plate · Swivel | 100 | 540*280*230 | PDF 16, table 1, row 3 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-01-100PVC Top plate · Swivel | 50 | 540*280*230 | PDF 16, table 1, row 4 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-01-125PVC Top plate · Swivel | 40 | 545*310*280 | PDF 16, table 1, row 5 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-01D-50PVC Top plate · Swivel with brake | 200 | 540*280*230 | PDF 16, table 2, row 1 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-01D-65PVC Top plate · Swivel with brake | 150 | 545*310*280 | PDF 16, table 2, row 2 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-01D-75PVC Top plate · Swivel with brake | 100 | 545*310*280 | PDF 16, table 2, row 3 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-01D-100PVC Top plate · Swivel with brake | 50 | 545*310*280 | PDF 16, table 2, row 4 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-01D-125PVC Top plate · Swivel with brake | 40 | 545*310*280 | PDF 16, table 2, row 5 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-02-50PVC Threaded stem · Swivel | 200 | 460*280*230 | PDF 16, table 3, row 1 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-02-65PVC Threaded stem · Swivel | 150 | 460*280*280 | PDF 16, table 3, row 2 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-02-75PVC Threaded stem · Swivel | 100 | 110*280*280 | PDF 16, table 3, row 3 | Material pending confirmation: grey-rubber series heading vs PVC cells. Carton size 110*280*280 is printed in source; confirm before packing. |
| Z02HJ-02-100PVC Threaded stem · Swivel | 50 | 460*280*280 | PDF 16, table 3, row 4 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-02-125PVC Threaded stem · Swivel | 40 | 460*280*280 | PDF 16, table 3, row 5 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-02D-50PVC Threaded stem · Swivel with brake | 200 | 480*280*250 | PDF 16, table 4, row 1 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-02D-65PVC Threaded stem · Swivel with brake | 150 | 480*280*250 | PDF 16, table 4, row 2 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-02D-75PVC Threaded stem · Swivel with brake | 100 | 520*280*280 | PDF 16, table 4, row 3 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-02D-100PVC Threaded stem · Swivel with brake | 50 | 460*280*280 | PDF 16, table 4, row 4 | Material pending confirmation: grey-rubber series heading vs PVC cells. |
| Z02HJ-02D-125PVC Threaded stem · Swivel with brake | 40 | 460*280*280 | PDF 16, table 4, row 5 | Material pending confirmation: grey-rubber series heading vs PVC cells. |

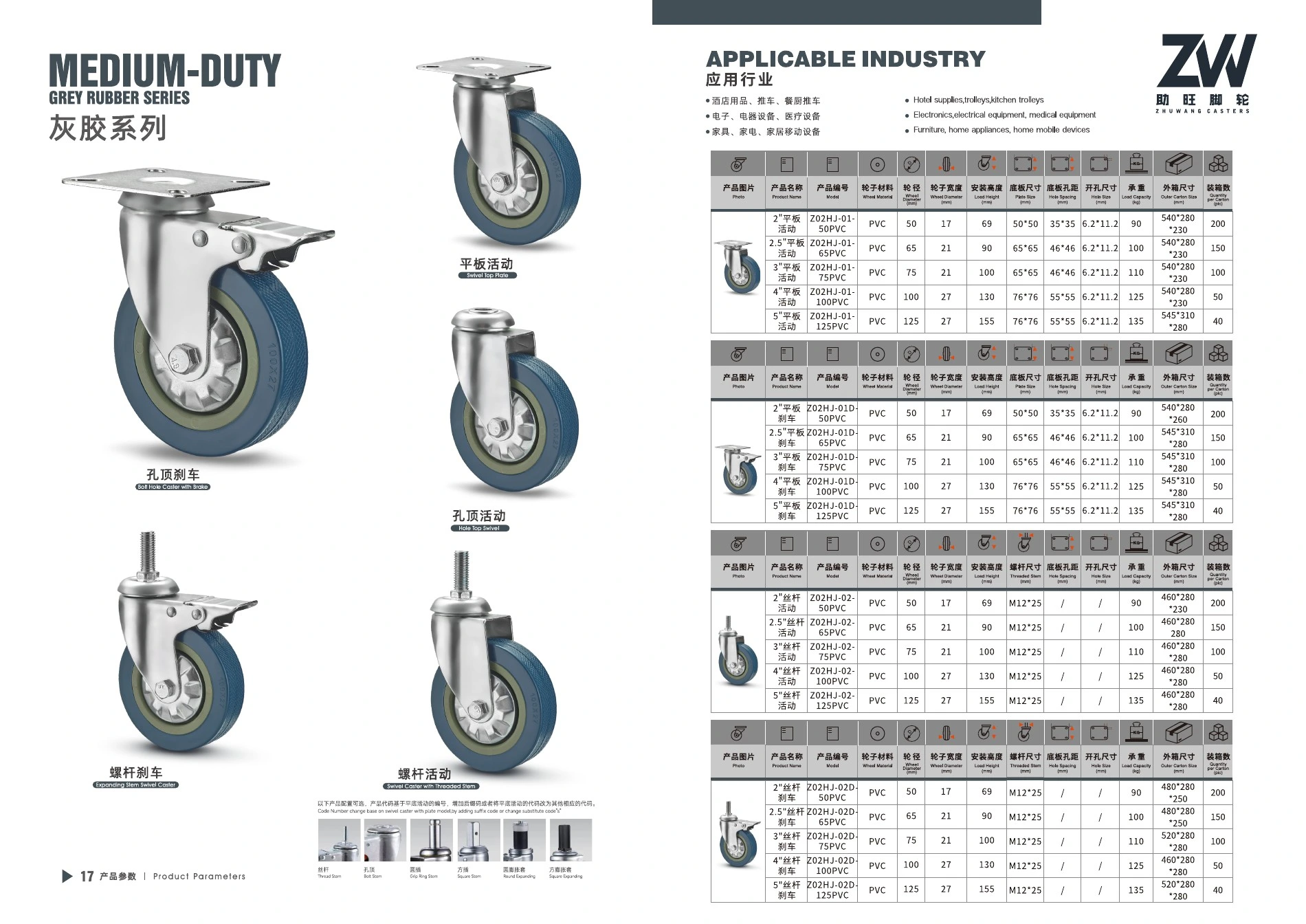

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
