Medium-Duty PVC Casters
Medium-Duty PVC Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

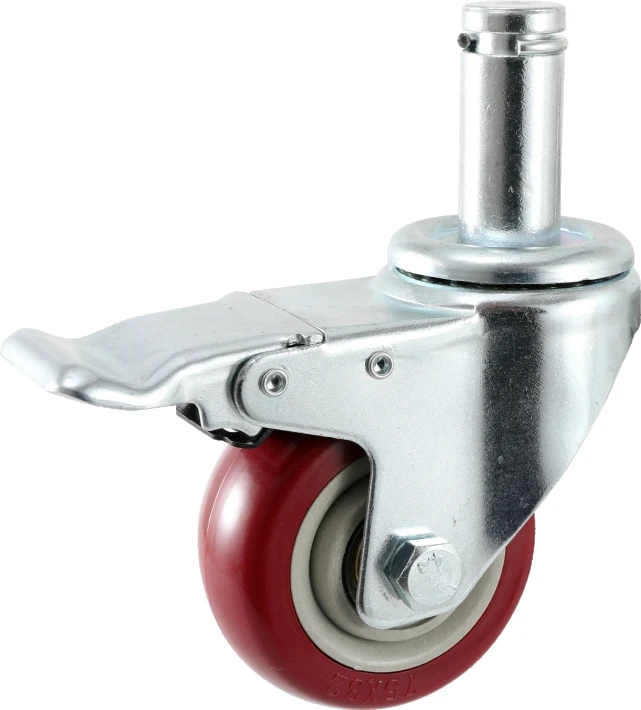

Product illustration from the final catalog. Mounting and brake options vary by model.
Medium-Duty Casters
PVCChoose a model.
Confirm your application.
Choose a catalog model and confirm mounting fit, operating conditions and current availability with our team.
Catalog series: 中型系列
Final PDF page 23 · Printed folios 41, 42
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z03B-01D-63PVC-03 | 63 | 32 | 90 | PVC | Top plate | Swivel | Brake | 90 | Inquire ↗ |
| Z03B-01D-75PVC-03 | 75 | 32 | 104 | PVC | Top plate | Swivel | Brake | 100 | Inquire ↗ |
| Z03B-01D-100PVC-03 | 100 | 32 | 128 | PVC | Top plate | Swivel | Brake | 110 | Inquire ↗ |
| Z03B-01D-125PVC-03 | 125 | 32 | 152 | PVC | Top plate | Swivel | Brake | 125 | Inquire ↗ |
| Z03B-01D-150PVC-03 | 150 | 32 | 180 | PVC | Top plate | Swivel | Brake | 135 | Inquire ↗ |
| Z03B-01-63PVC-03 | 63 | 32 | 90 | PVC | Top plate | Swivel | None | 90 | Inquire ↗ |
| Z03B-01-75PVC-03 | 75 | 32 | 104 | PVC | Top plate | Swivel | None | 100 | Inquire ↗ |
| Z03B-01-100PVC-03 | 100 | 32 | 128 | PVC | Top plate | Swivel | None | 110 | Inquire ↗ |
| Z03B-01-125PVC-03 | 125 | 32 | 152 | PVC | Top plate | Swivel | None | 125 | Inquire ↗ |
| Z03B-01-150PVC-03 | 150 | 32 | 180 | PVC | Top plate | Swivel | None | 135 | Inquire ↗ |
| Z03B-02D-63PVC-03 | 63 | 32 | 90 | PVC | Threaded stem | Swivel | Brake | 90 | Inquire ↗ |
| Z03B-02D-75PVC-03 | 75 | 32 | 104 | PVC | Threaded stem | Swivel | Brake | 100 | Inquire ↗ |
| Z03B-02D-100PVC-03 | 100 | 32 | 128 | PVC | Threaded stem | Swivel | Brake | 110 | Inquire ↗ |
| Z03B-02D-125PVC-03 | 125 | 32 | 152 | PVC | Threaded stem | Swivel | Brake | 125 | Inquire ↗ |
| Z03B-02D-150PVC-03 | 150 | 32 | 180 | PVC | Threaded stem | Swivel | Brake | 135 | Inquire ↗ |
| Z03B-03D-63PVC-03 | 63 | 32 | 90 | PVC | Grip ring stem | Swivel | Brake | 90 | Inquire ↗ |
| Z03B-03D-75PVC-03 | 75 | 32 | 104 | PVC | Grip ring stem | Swivel | Brake | 100 | Inquire ↗ |
| Z03B-03D-100PVC-03 | 100 | 32 | 128 | PVC | Grip ring stem | Swivel | Brake | 110 | Inquire ↗ |
| Z03B-03D-125PVC-03 | 125 | 32 | 152 | PVC | Grip ring stem | Swivel | Brake | 125 | Inquire ↗ |
| Z03B-03D-150PVC-03 | 150 | 32 | 180 | PVC | Grip ring stem | Swivel | Brake | 135 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z03B-01D-63PVC-03 Top plate · Swivel with brake | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-01D-75PVC-03 Top plate · Swivel with brake | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-01D-100PVC-03 Top plate · Swivel with brake | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-01D-125PVC-03 Top plate · Swivel with brake | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-01D-150PVC-03 Top plate · Swivel with brake | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-01-63PVC-03 Top plate · Swivel | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-01-75PVC-03 Top plate · Swivel | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-01-100PVC-03 Top plate · Swivel | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-01-125PVC-03 Top plate · Swivel | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-01-150PVC-03 Top plate · Swivel | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-02D-63PVC-03 Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z03B-02D-75PVC-03 Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z03B-02D-100PVC-03 Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z03B-02D-125PVC-03 Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z03B-02D-150PVC-03 Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M12*25 | Pending confirmation |
| Z03B-03D-63PVC-03 Grip ring stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M11*25 | Pending confirmation |
| Z03B-03D-75PVC-03 Grip ring stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M11*25 | Pending confirmation |
| Z03B-03D-100PVC-03 Grip ring stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M11*25 | Pending confirmation |
| Z03B-03D-125PVC-03 Grip ring stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M11*25 | Pending confirmation |
| Z03B-03D-150PVC-03 Grip ring stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M11*25 | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z03B-01D-63PVC-03 Top plate · Swivel with brake | 60 | 540*280*235 | PDF 23, table 1, row 1 | Confirm the selected model and order requirements. |
| Z03B-01D-75PVC-03 Top plate · Swivel with brake | 50 | 540*280*235 | PDF 23, table 1, row 2 | Confirm the selected model and order requirements. |
| Z03B-01D-100PVC-03 Top plate · Swivel with brake | 50 | 560*320*240 | PDF 23, table 1, row 3 | Confirm the selected model and order requirements. |
| Z03B-01D-125PVC-03 Top plate · Swivel with brake | 40 | 540*320*280 | PDF 23, table 1, row 4 | Confirm the selected model and order requirements. |
| Z03B-01D-150PVC-03 Top plate · Swivel with brake | 30 | 540*320*280 | PDF 23, table 1, row 5 | Confirm the selected model and order requirements. |
| Z03B-01-63PVC-03 Top plate · Swivel | 80 | 540*280*235 | PDF 23, table 2, row 1 | Confirm the selected model and order requirements. |
| Z03B-01-75PVC-03 Top plate · Swivel | 70 | 540*280*235 | PDF 23, table 2, row 2 | Confirm the selected model and order requirements. |
| Z03B-01-100PVC-03 Top plate · Swivel | 50 | 540*280*235 | PDF 23, table 2, row 3 | Confirm the selected model and order requirements. |
| Z03B-01-125PVC-03 Top plate · Swivel | 40 | 560*320*240 | PDF 23, table 2, row 4 | Confirm the selected model and order requirements. |
| Z03B-01-150PVC-03 Top plate · Swivel | 30 | 540*320*280 | PDF 23, table 2, row 5 | Confirm the selected model and order requirements. |
| Z03B-02D-63PVC-03 Threaded stem · Swivel with brake | 60 | 540*280*235 | PDF 23, table 3, row 1 | Confirm the selected model and order requirements. |
| Z03B-02D-75PVC-03 Threaded stem · Swivel with brake | 50 | 540*280*235 | PDF 23, table 3, row 2 | Confirm the selected model and order requirements. |
| Z03B-02D-100PVC-03 Threaded stem · Swivel with brake | 50 | 560*320*240 | PDF 23, table 3, row 3 | Confirm the selected model and order requirements. |
| Z03B-02D-125PVC-03 Threaded stem · Swivel with brake | 40 | 540*320*280 | PDF 23, table 3, row 4 | Confirm the selected model and order requirements. |
| Z03B-02D-150PVC-03 Threaded stem · Swivel with brake | 30 | 540*320*280 | PDF 23, table 3, row 5 | Confirm the selected model and order requirements. |
| Z03B-03D-63PVC-03 Grip ring stem · Swivel with brake | 60 | 540*280*235 | PDF 23, table 4, row 1 | Confirm the selected model and order requirements. |
| Z03B-03D-75PVC-03 Grip ring stem · Swivel with brake | 50 | 540*280*235 | PDF 23, table 4, row 2 | Confirm the selected model and order requirements. |
| Z03B-03D-100PVC-03 Grip ring stem · Swivel with brake | 50 | 560*320*240 | PDF 23, table 4, row 3 | Confirm the selected model and order requirements. |
| Z03B-03D-125PVC-03 Grip ring stem · Swivel with brake | 40 | 540*320*280 | PDF 23, table 4, row 4 | Confirm the selected model and order requirements. |
| Z03B-03D-150PVC-03 Grip ring stem · Swivel with brake | 30 | 540*320*280 | PDF 23, table 4, row 5 | Confirm the selected model and order requirements. |

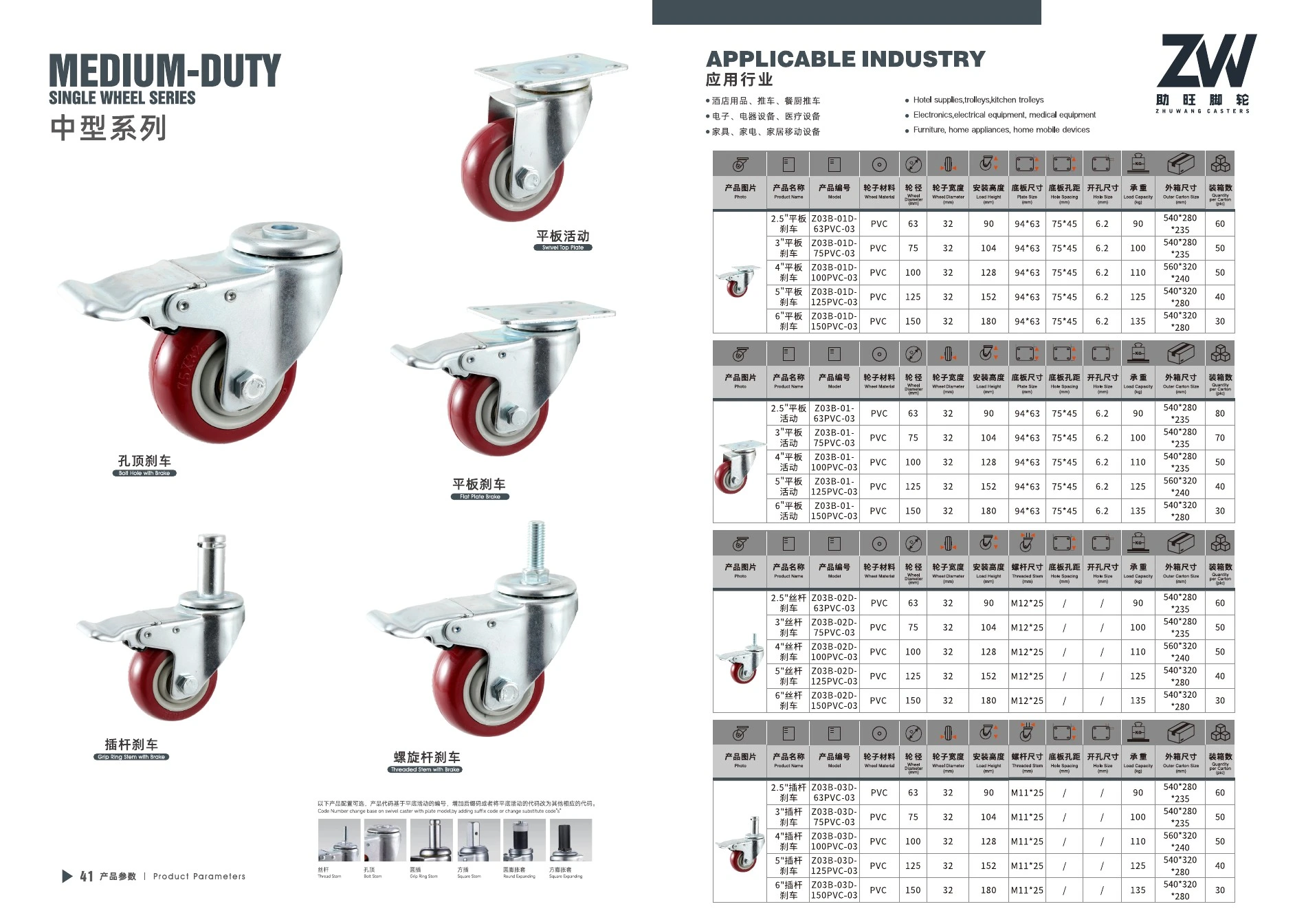

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
