Medium-Duty Single-Axle PU Casters

Medium-Duty Single-Axle PU Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

Medium-Duty Single-Axle PU Casters

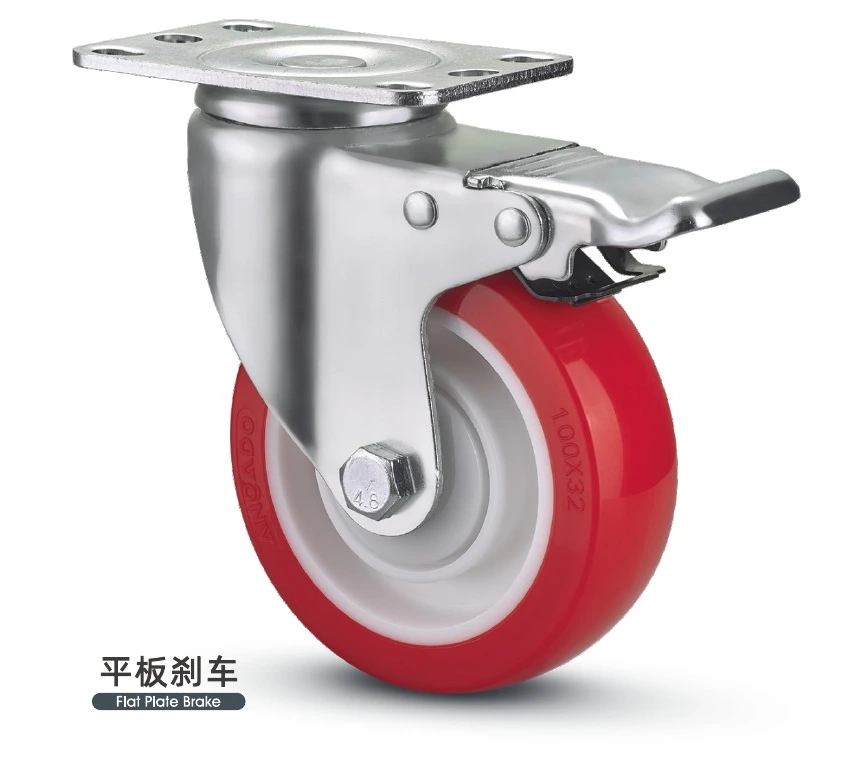

Product illustration from the final catalog. Mounting and brake options vary by model.

Medium-Duty Casters

PU

Choose a model.
Confirm your application.

The nominal 3-inch row lists 89 mm. Values are retained as printed. Confirm bolt-hole and threaded mounting dimensions.

Catalog series: 中型单轴PU轮系列
Final PDF page 22 · Printed folios 35, 36

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China

Catalog models & specifications

Dimensions & listed loads.

Dimensions in mm; listed loads in kg per caster. Pending confirmation means missing, conflicting or not reliably established.
Manufacturer modelWheel ØWidthOverall heightMaterialMountingRotationBrakeListed loadInquiry
Z03A-04-63PU-02653294PUTop plateRigidNone50Inquire ↗
Z03A-04-89PU-028932119PUTop plateRigidNone50Inquire ↗
Z03A-04-100PU-0210032131PUTop plateRigidNone50Inquire ↗
Z03A-04-125PU-0212532157PUTop plateRigidNone50Inquire ↗
Z03A-01D-63PU-02653294PUTop plateSwivelBrake50Inquire ↗
Z03A-01D-89PU-028932119PUTop plateSwivelBrake50Inquire ↗
Z03A-01D-100PU-0210032131PUTop plateSwivelBrake50Inquire ↗
Z03A-01D-125PU-0212532157PUTop plateSwivelBrake50Inquire ↗
Z03A-05-63PU-02653291PUBolt holeSwivelBrake50Inquire ↗
Z03A-05-89PU-028932116PUBolt holeSwivelBrake50Inquire ↗
Z03A-05-100PU-0210032128PUBolt holeSwivelBrake50Inquire ↗
Z03A-05-125PU-0212532154PUBolt holeSwivelBrake50Inquire ↗
Z03A-05D-63PU-02653296PUThreaded stemSwivelBrake50Inquire ↗
Z03A-05D-89PU-028932121PUThreaded stemSwivelBrake50Inquire ↗
Z03A-05D-100PU-0210032133PUThreaded stemSwivelBrake50Inquire ↗
Z03A-05D-125PU-0212532159PUThreaded stemSwivelBrake50Inquire ↗
Mounting dimensions
Source dimension notation retained, mm. An asterisk separates dimensions; stem notation is reproduced without inferring a thread.
Model / configurationPlate sizeHole spacingMounting holeStem notationStem hole distance
Z03A-04-63PU-02
Top plate · Rigid		94*6274.5*6212*8.5Pending confirmationPending confirmation
Z03A-04-89PU-02
Top plate · Rigid		94*6274.5*6212*8.5Pending confirmationPending confirmation
Z03A-04-100PU-02
Top plate · Rigid		94*6274.5*6212*8.5Pending confirmationPending confirmation
Z03A-04-125PU-02
Top plate · Rigid		94*6274.5*6212*8.5Pending confirmationPending confirmation
Z03A-01D-63PU-02
Top plate · Swivel with brake		94*6274.5*4512*8.5Pending confirmationPending confirmation
Z03A-01D-89PU-02
Top plate · Swivel with brake		94*6274.5*4512*8.5Pending confirmationPending confirmation
Z03A-01D-100PU-02
Top plate · Swivel with brake		94*6274.5*4512*8.5Pending confirmationPending confirmation
Z03A-01D-125PU-02
Top plate · Swivel with brake		94*6274.5*4512*8.5Pending confirmationPending confirmation
Z03A-05-63PU-02
Bolt hole · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z03A-05-89PU-02
Bolt hole · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z03A-05-100PU-02
Bolt hole · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z03A-05-125PU-02
Bolt hole · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z03A-05D-63PU-02
Threaded stem · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z03A-05D-89PU-02
Threaded stem · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z03A-05D-100PU-02
Threaded stem · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Z03A-05D-125PU-02
Threaded stem · Swivel with brake		Pending confirmationPending confirmationPending confirmationM12*25Pending confirmation
Packing, source references & confirmation notes
Model / configurationPcs / cartonCarton dimensions, as printed (mm)SourceNotes
Z03A-04-63PU-02
Top plate · Rigid		60500*280*230PDF 22, table 1, row 1Confirm the selected model and order requirements.
Z03A-04-89PU-02
Top plate · Rigid		50500*280*230PDF 22, table 1, row 2Confirm the selected model and order requirements.
Z03A-04-100PU-02
Top plate · Rigid		40500*280*230PDF 22, table 1, row 3Confirm the selected model and order requirements.
Z03A-04-125PU-02
Top plate · Rigid		30500*280*230PDF 22, table 1, row 4Confirm the selected model and order requirements.
Z03A-01D-63PU-02
Top plate · Swivel with brake		60500*280*230PDF 22, table 2, row 1Confirm the selected model and order requirements.
Z03A-01D-89PU-02
Top plate · Swivel with brake		50500*280*230PDF 22, table 2, row 2Confirm the selected model and order requirements.
Z03A-01D-100PU-02
Top plate · Swivel with brake		40500*280*230PDF 22, table 2, row 3Confirm the selected model and order requirements.
Z03A-01D-125PU-02
Top plate · Swivel with brake		30500*280*230PDF 22, table 2, row 4Confirm the selected model and order requirements.
Z03A-05-63PU-02
Bolt hole · Swivel with brake		60500*280*230PDF 22, table 3, row 1Confirm the selected model and order requirements.
Z03A-05-89PU-02
Bolt hole · Swivel with brake		50500*280*230PDF 22, table 3, row 2Confirm the selected model and order requirements.
Z03A-05-100PU-02
Bolt hole · Swivel with brake		40500*280*230PDF 22, table 3, row 3Confirm the selected model and order requirements.
Z03A-05-125PU-02
Bolt hole · Swivel with brake		30500*280*230PDF 22, table 3, row 4Confirm the selected model and order requirements.
Z03A-05D-63PU-02
Threaded stem · Swivel with brake		60500*280*230PDF 22, table 4, row 1Confirm the selected model and order requirements.
Z03A-05D-89PU-02
Threaded stem · Swivel with brake		50500*280*230PDF 22, table 4, row 2Confirm the selected model and order requirements.
Z03A-05D-100PU-02
Threaded stem · Swivel with brake		40500*280*230PDF 22, table 4, row 3Confirm the selected model and order requirements.
Z03A-05D-125PU-02
Threaded stem · Swivel with brake		30500*280*230PDF 22, table 4, row 4Confirm the selected model and order requirements.
View original catalog pages

Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.

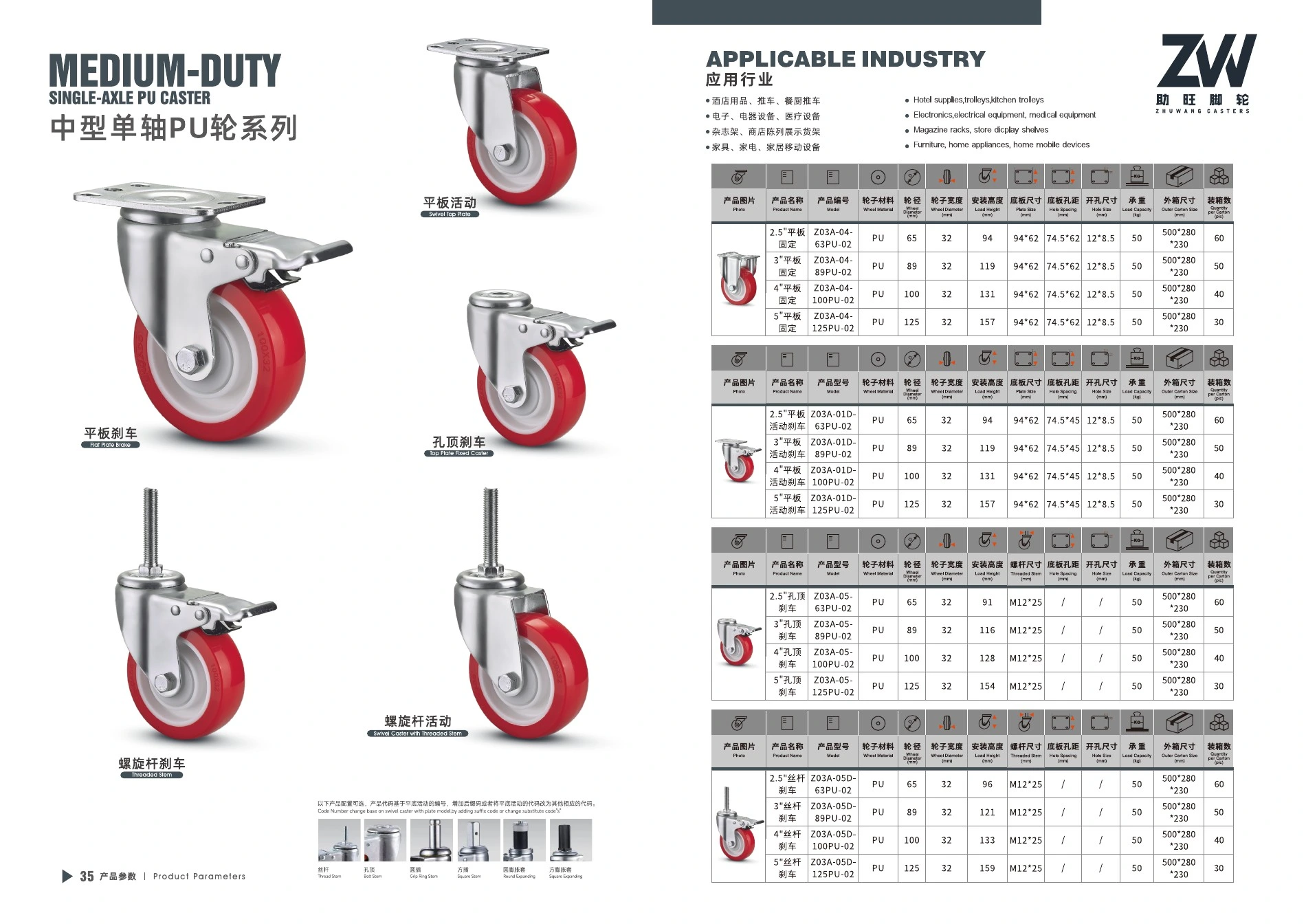

Final product catalog PDF page 22: Medium-Duty Single-Axle PU Casters
PDF page 22 · Open in catalog PDF

Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
